Super AOC-S200G-B1C User's Manual

PORT 1 PORT 2

JP1

JP2

LED3

JNCSI1 JNCSI2

LED5

LED4

BCM57508

QSFP56

REV:1.01

AOC-S200G-B1C

DESIGNED IN USA

JGF1

2.3 QSFP56 Ethernet Connections

QSFP56 Port

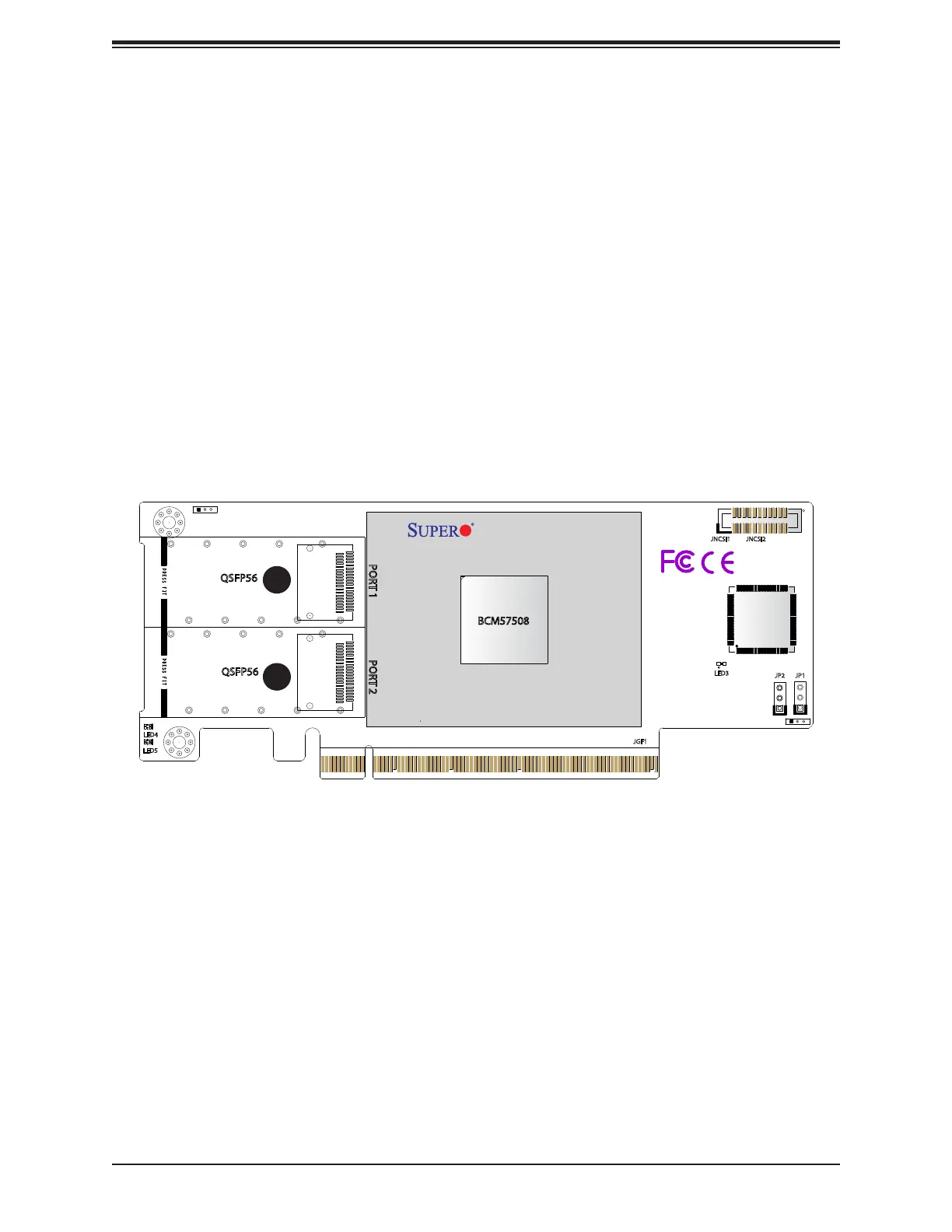

A Quad Small Form-Factor Pluggable 56 (QSFP56) connector is located at J2/J3 on the add-

on card. The QSFP56 ports operate at up to 200Gb/s. Plug the Direct Attached Copper (DAC)

cable into the QSFP56 ports for network connections. See the layout below for the location.

1. QSFP56

2. QSFP56
