Chapter 2: Hardware Components

2.6 PCI-E 4.0 x16 Connector

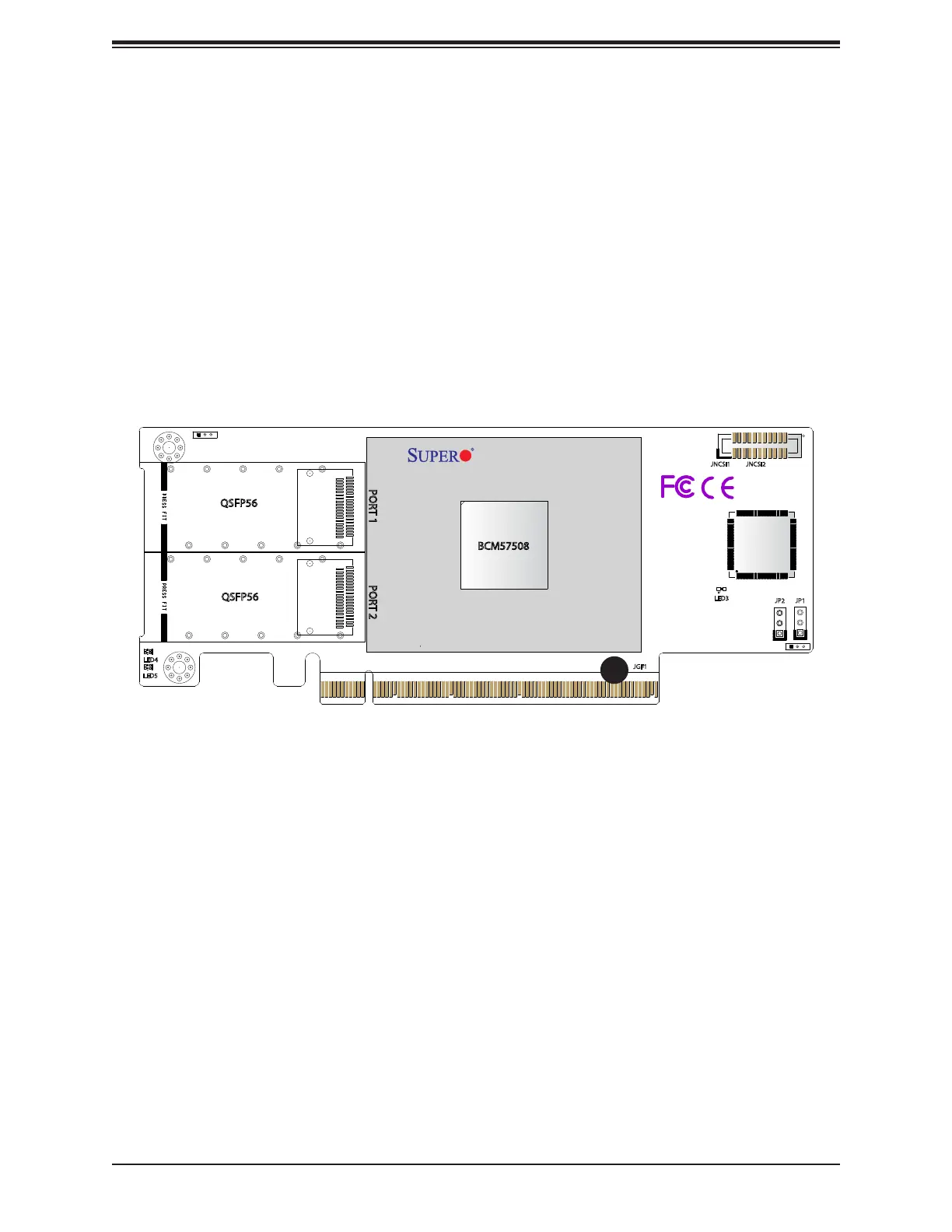

A PCI-E 4.0 x16 connector is located at JGF1 on the add-on card. Insert this connector into

a PCI-E 4.0 x16 slot on a motherboard to use this add-on card. See the layout below for the

location..

1. PCI-E 4.0 x16 connector

PORT 1 PORT 2

JP1

JP2

LED3

JNCSI1 JNCSI2

LED5

LED4

BCM57508

QSFP56

REV:1.01

AOC-S200G-B1C

DESIGNED IN USA

JGF1
