Super X11SCL-IF User's Manual

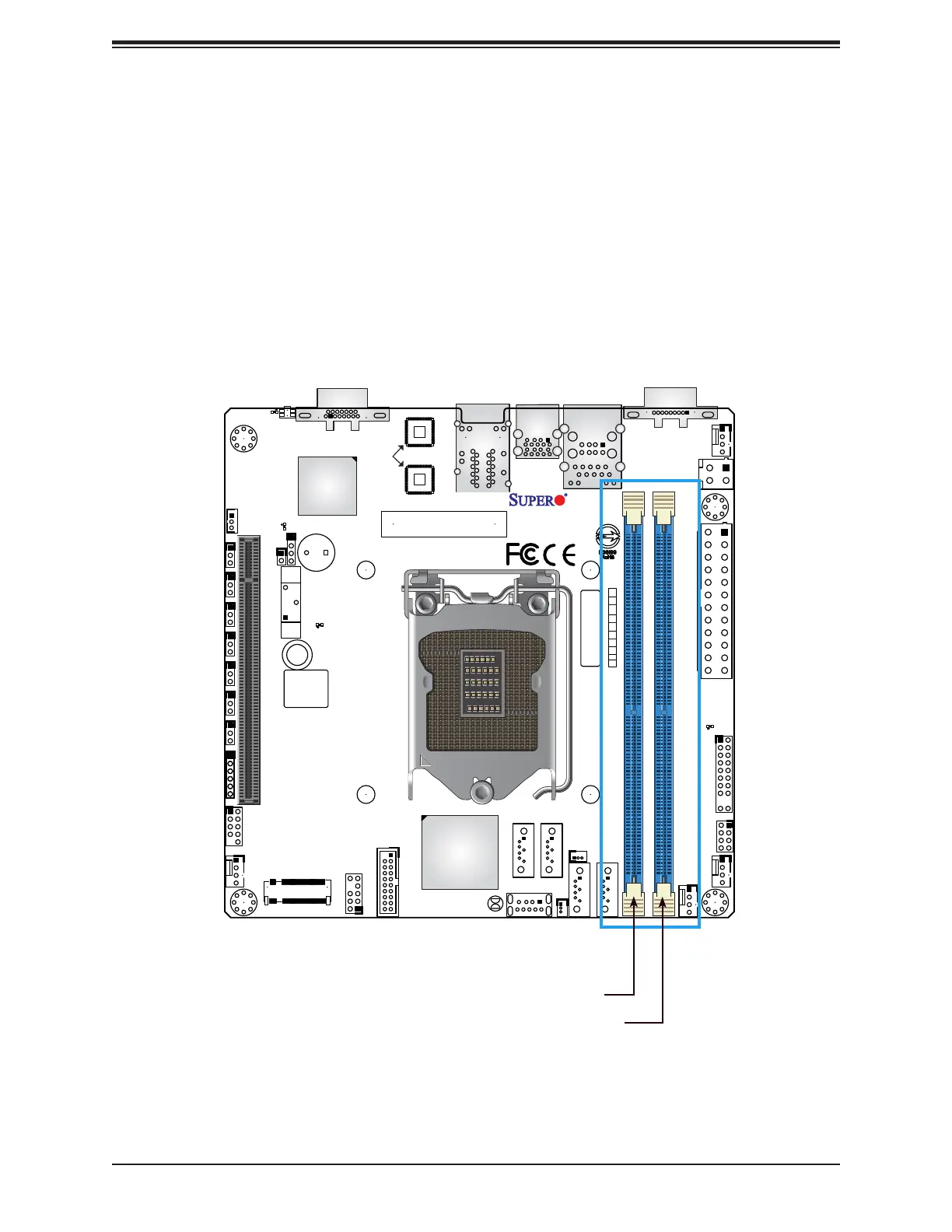

General Guidelines for Optimizing Memory Performance
• Always use DDR4 memory of the same type, size, and speed.
• Mixed DIMM speeds can be installed. However, all DIMMs will run at the speed of the
slowest DIMM.
• The motherboard will support odd-numbered modules. However, to achieve the best
memory performance, a balanced memory population is recommended.
