Supermicro X11SCL-IF - Front Control Panel

37
Chapter 2: Installation
Power Button
UID LED
NIC1 Active LED
Reset Button
HDD LED
PWR LED
Reset
PWR
UID SW
3.3V Stby
Ground
19
X
Ground
X
3.3V Stby
20
1 2
Ground
Power Fail LED
NIC2 Active LED
NMI
3.3V
3.3V
OH/Fan Fail LED

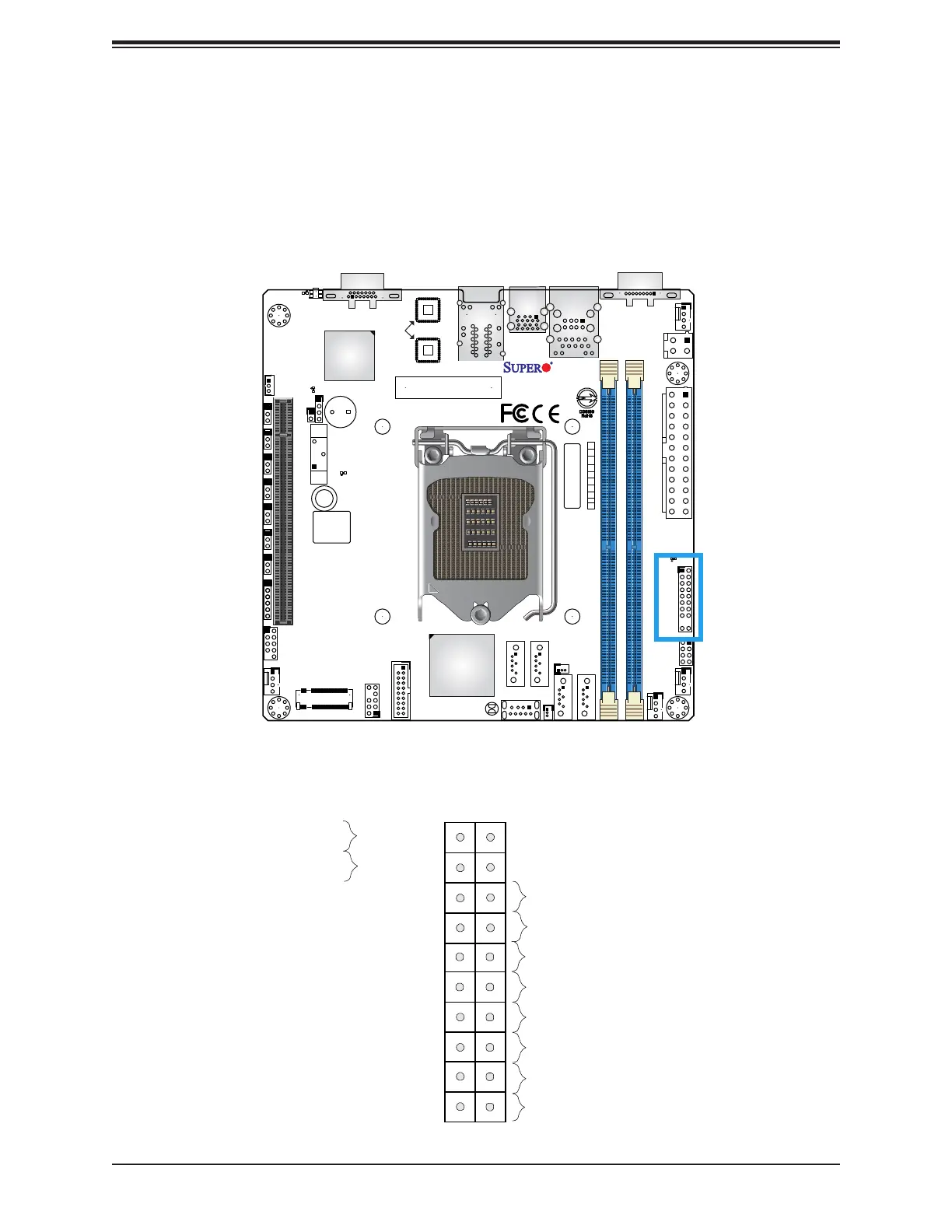

Figure 2-1. JF1 Header Pins
2.6 Front Control Panel
JF1 contains header pins for various buttons and indicators that are normally located on a
control panel at the front of the chassis. These connectors are designed specically for use
with Supermicro chassis. See the gure below for the descriptions of the front control panel
buttons and LED indicators.
X11SCL-IF
REV:1.01
1
BIOS LICENSE
BAR CODE
+
DESIGNED IN USA
Intel
i210
Intel
C242
ASpeed
AST2500
JPL1
FANA
JLED1
JPME2
JWD1
JPL2
JPG1
JSTBY1
USB2/3
CPU SLOT1 PCI-E 3.0 X16
B1
JL1
LED4
M.2-H
MH5
LED2
JUIDB1
JD1
LED5
SP1
VGA
JTPM1
CPU
USB6/7(3.0)
LAN1/2
USB8(3.0)
JBT1
USB4/5
(3.0)
I-SATA0
JSD2
I-SATA1
JSD1
USB0/1
IPMI LAN
I-SATA2 I-SATA3
X NMI
LED PWRHDD
LED1
NIC
2
NICUID
LED
PS
FAIL
RST
PWR ON
JF1
DIMMB1 DIMMA1
FAN2
FAN1
LED3
JPW1
FAN3
I-SGPIO1
JPW2
JF1
COM1
