Chapter 2: Installation
South Center Edge
North Center Edge

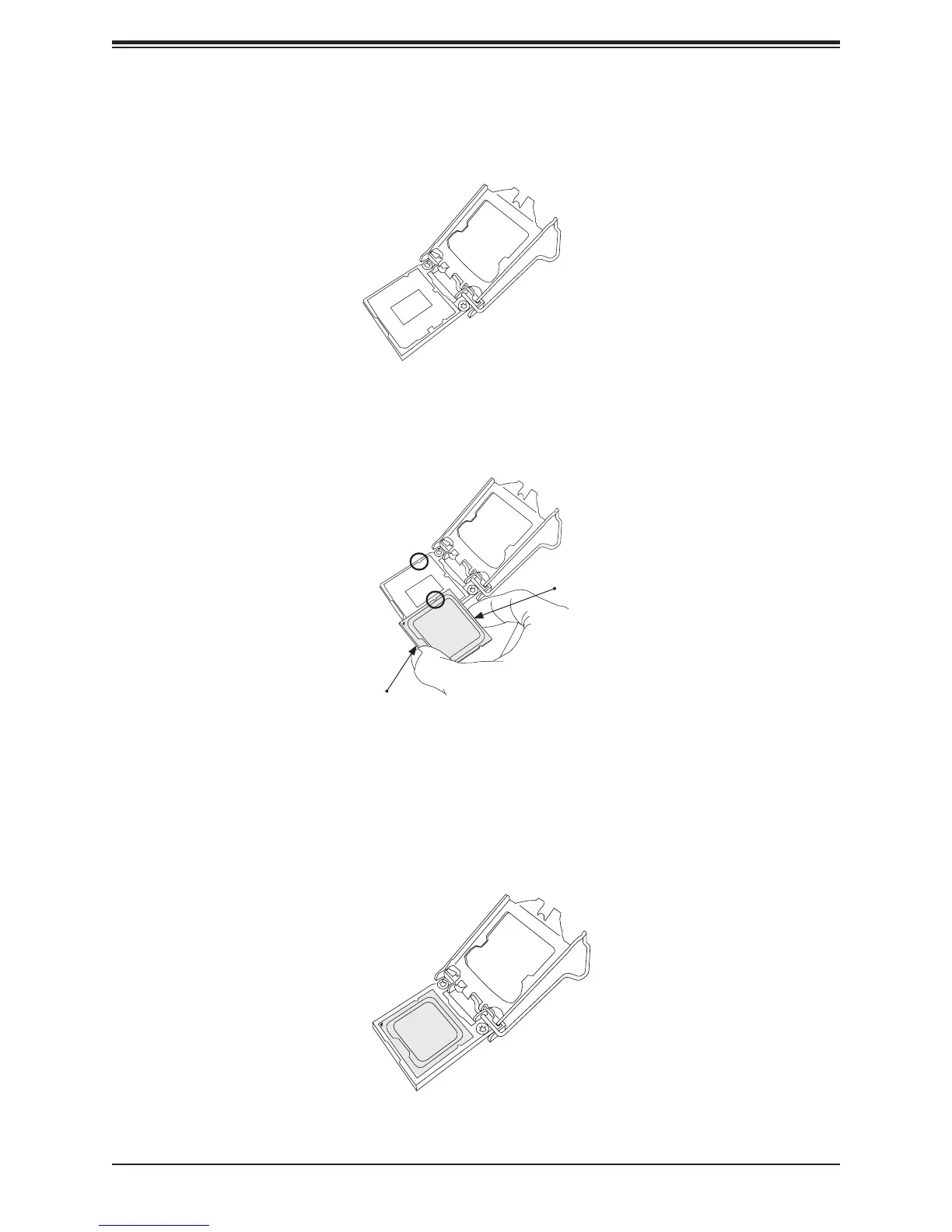

2. Gently lift the load lever to open the load plate. Remove the plastic cap.
3. Use your thumb and your index nger to hold the CPU at the North center edge and the
South center edge of the CPU.
4. Align the CPU key that is the semi-circle cutouts against the socket keys. Once it is
aligned, carefully lower the CPU straight down into the socket. (Do not drop the CPU on
the socket. Do not move the CPU horizontally or vertically).

Supermicro X11SSH-F Specifications

General

IPMI LAN (RJ-45) port	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Maximum UDIMM memory	64 GB
Number of DIMM slots	4
Supported DIMM module capacities	4GB, 8GB, 16GB
Memory voltage	1.2 V
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	1600, 1866, 2133 MHz
BIOS type	AMI
ACPI version	4.0
BIOS memory size	16 Mbit
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA III
On-board graphics card model	Aspeed AST2400
Processor socket	LGA 1151 (Socket H4)
Intel Xeon series	E3-1200
Processor manufacturer	Intel
Processor thermal power (max)	80 W
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
Number of SATA III connectors	8
Trusted Platform Module (TPM) version	1.2
Motherboard chipset	Intel® C236
Motherboard form factor	micro ATX

Weight and Dimensions

Width	224 mm
