X11SSH-F/-LN4F User Manual

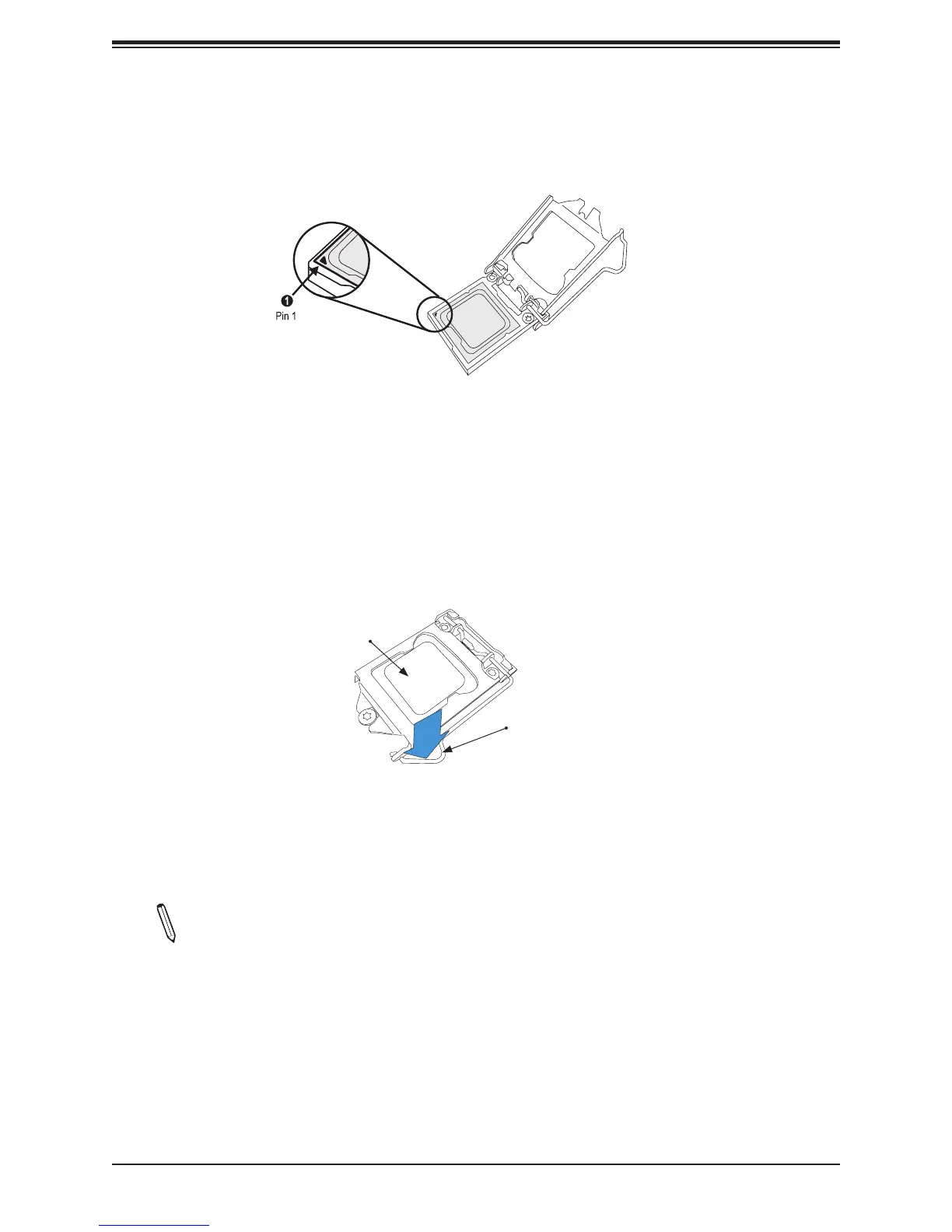

Note: You can only install the CPU inside the socket in one direction. Make sure that
it is properly inserted into the CPU socket before closing the load plate. If it doesn't
close properly, do not force it as it may damage your CPU. Instead, open the load
plate again and double-check that the CPU is aligned properly.
CPU properly
installed
Load lever locked into
place
5. Do not rub the CPU against the surface or against any pins of the socket to avoid
damaging the CPU or the socket.
6. With the CPU inside the socket, inspect the four corners of the CPU to make sure that
the CPU is properly installed.
7. Use your thumb to gently push the load lever down to the lever lock.

Supermicro X11SSH-F Specifications

General

IPMI LAN (RJ-45) port	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Maximum UDIMM memory	64 GB
Number of DIMM slots	4
Supported DIMM module capacities	4GB, 8GB, 16GB
Memory voltage	1.2 V
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	1600, 1866, 2133 MHz
BIOS type	AMI
ACPI version	4.0
BIOS memory size	16 Mbit
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA III
On-board graphics card model	Aspeed AST2400
Processor socket	LGA 1151 (Socket H4)
Intel Xeon series	E3-1200
Processor manufacturer	Intel
Processor thermal power (max)	80 W
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
Number of SATA III connectors	8
Trusted Platform Module (TPM) version	1.2
Motherboard chipset	Intel® C236
Motherboard form factor	micro ATX
