SC813/813M Chassis User's Guide
1-4
A-2 The SC813M chassis:
The SC813M chassis contains the following:
Four (4) SCA 1" drive trays [CSE-PT39(B)]
One (1) 350W Power Supply [PWS-042-24] (for the 350W Series)
One (1) 300 W Power Supply [PWS-0054] (for the 300W Series)
One (1) 420 W Power Supply [PWS-0053] (for the 420W Series)
Three (3) 40mm Fans [FAN-0061] (in the 300W & 350W Series)
Four (4) 40mm Fans [FAN-0061] (in the 420W & 500W Series)
One (1) 4-port SATA backplane [CSE-SATA-813] (*for the 813MT Series)]
One (1) 4-port SCSI backplane [CSESCA-813S] (*for the 813MS Series)]
The accessory box contains the following:
One set of motherboard screws
One set of drive screws
One set of HDD (hard disk drive) screws
One (1) AC power cord

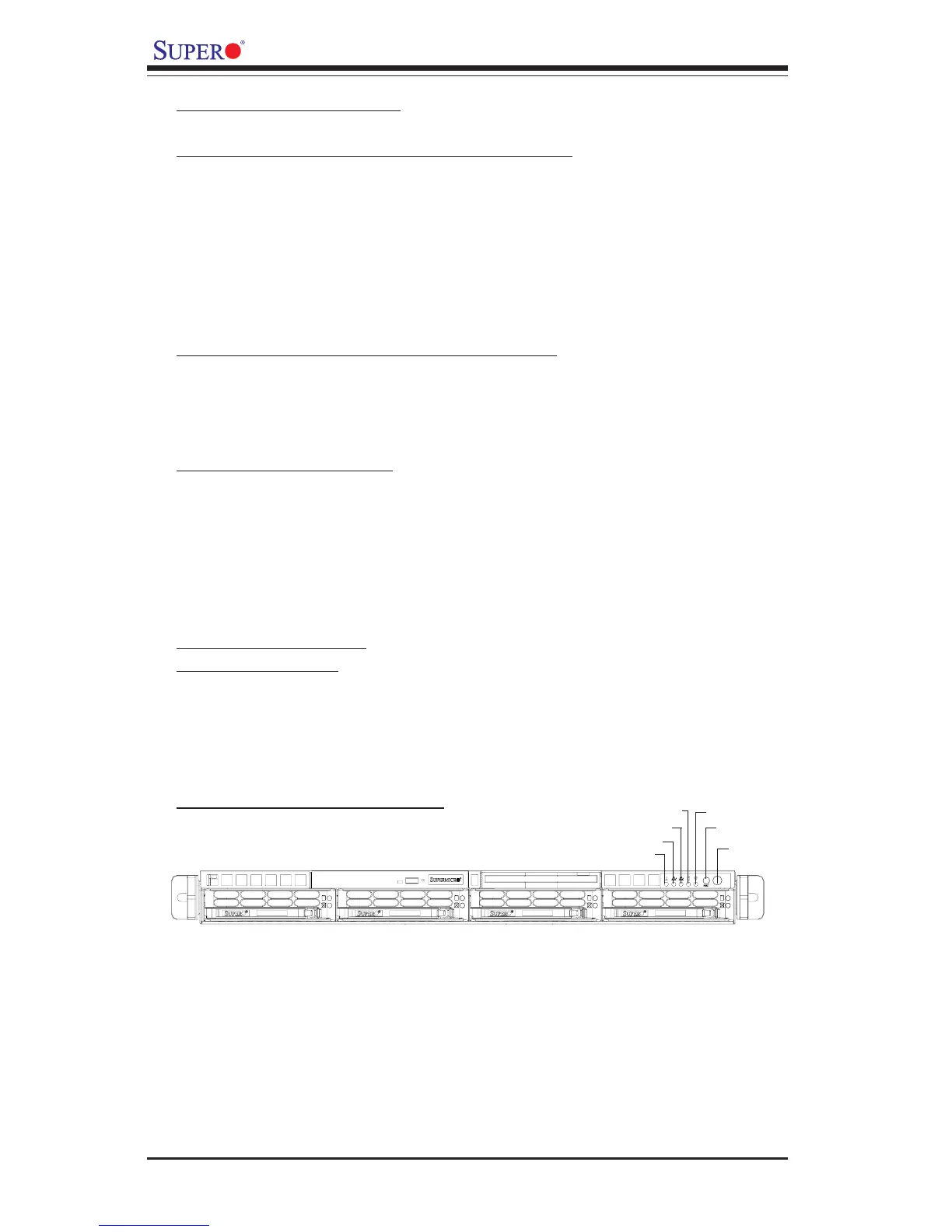

(SC813/SC813M Front Panel)
LAN2
OH
LAN1
PWR On
Reset SW
PWR SW
B. Front Panel LED Indicators
One pair of outer slides to be installed in the rack
Two pairs of short brackets to be used on the front side of the outer slides
(Note: One pair of short brackets include screw threads, and the other pair
do not. Use the only pair that will fit into your rack.)
One pair of long brackets to be used on the rear side of the outer slides
HDD
Rail Packaging includes:
One pair of rear inner slides to be installed on the chassis
Optional Kits include:
The SC813M Series:
Riser Cards(64-Bit) [CSE-RRIU-X] or Riser Cards(32-Bit) [CSE-RR32-1U]
Front Bezel [CSE-PTFB-813(B)]
To Next Page
