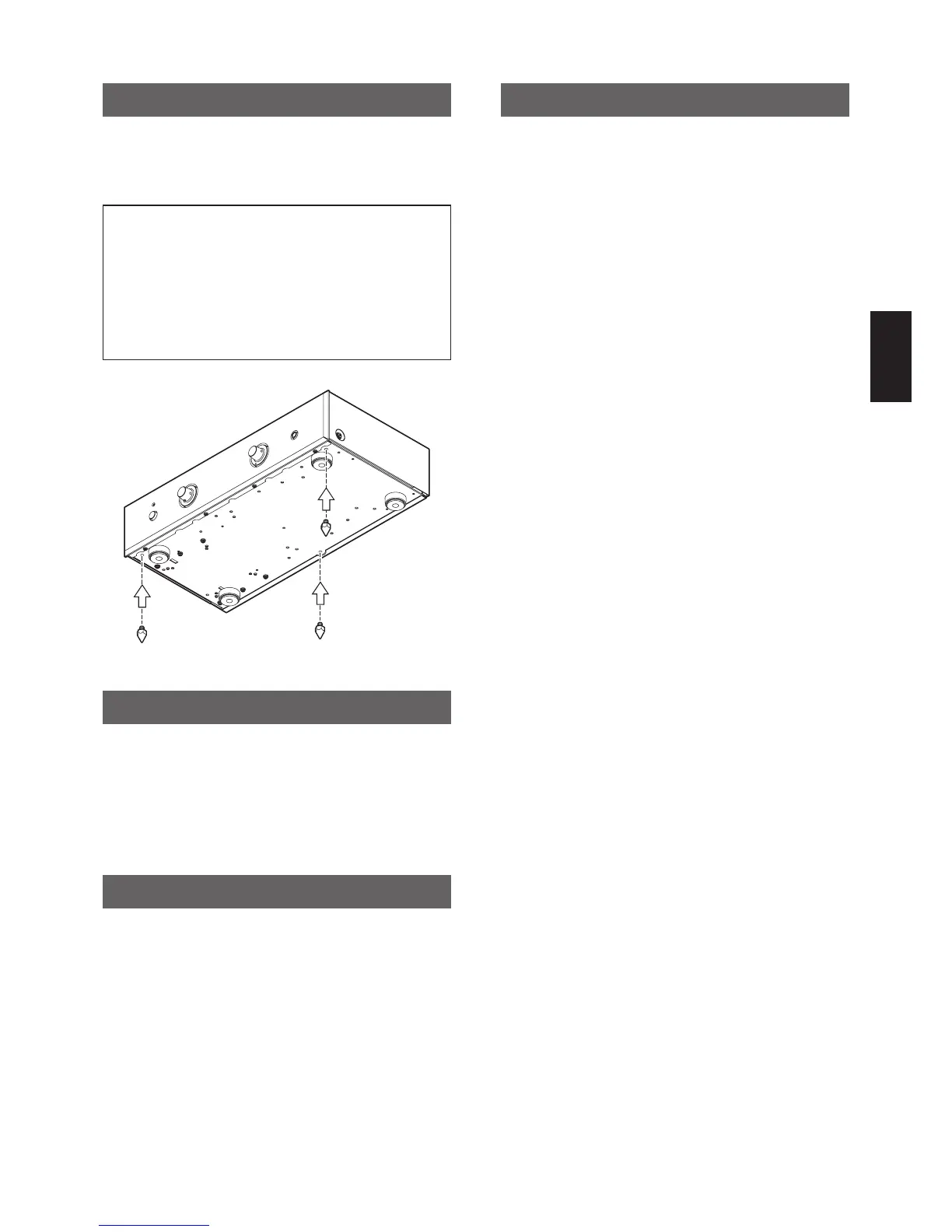

Attachment of Spike Pin
Attaching the optional spike pins to the bottom of the
unit will help protect the components from unwanted
mechanical energy.
Note:
• The tips of the spike pins are sharp and could
cause injury. Handle with great care when
mounting the spike pins and when installing the
equipment.
• Please be careful that the spike pins might cause
damage to the surface of the table or rack.
Troubleshooting
* No sound
• check the power
• check the input selector
• check the source equipment (power, connection or
operation)
Maintenance
When the equipment has become dirty, wipe it clean
using a soft cloth. To remove stubborn stains, dilute
some dish-washing liquid in 5 or 6 times as much water,
soak a soft cloth in the solution, wring it out well, wipe
away the stains, and then wipe the surfaces dry with a
dry cloth.
Never use alcohol, paint thinners, benzine, insecticides
or other volatile substances since they may mar or
remove the surface gloss.
Bear in mind that rubbing surfaces with a chemical
cleaning cloth or leaving such a cloth in contact with a
surface for an extended time may result in deterioration.
Specifications
Output
Speaker ........................................10 W × 2 (8 Ohms)
Headphone ...............................3.0 W × 2 (32 Ohms)
Preout ........................................... 2.0 V (10 k Ohms)
Total Harmonic Distortion
Speaker .......0.2% (10 Hz ~ 100 kHz, 3.3 W, 8 Ohms)
Headphone .... 0.03% (10 Hz ~ 100 kHz, 200 mV, 32 Ohms)
Preout .... 0.005% (10 Hz ~ 100 kHz, 2.0 V, 10 k Ohms)
Frequency Response
Speaker ......5 Hz ~ 350 kHz (+0/-1 dB, 1 W, 8 Ohms)
Headphone ... 5 Hz ~ 400 kHz (+0/-1 dB, 200 mW, 32 Ohms)
Preout .... 5 Hz ~ 400 kHz (+0/-1 dB, 2.0 V, 10 k Ohms)
Input Sensitivity / Impedance
H .................................0.775 V/5 k Ohms (LINE1,2,3)
0.775 V/10 k Ohms (XLR)
L ....................................4.0 V/25 k Ohms (LINE1,2,3)
4.0 V/50 k Ohms (XLR)
Gain ..................................................H: 22 dB, L: 8 dB
S/N Ratio .................................. 115dB (IHF A Network)
Power Requirements ........................... AC 120 V 60 Hz
Power Consumption ............................32 W (UL60065)
16 W (Idle)
Dimension .......................... 16.5”(W) x 3.9”(H) x 9.6”(D)
420(W) x 98(H) x 243(D) mm
Weight ..............................................................13.2 lbs
6.0 kg
