suprema Xpass - Output

Output
Output

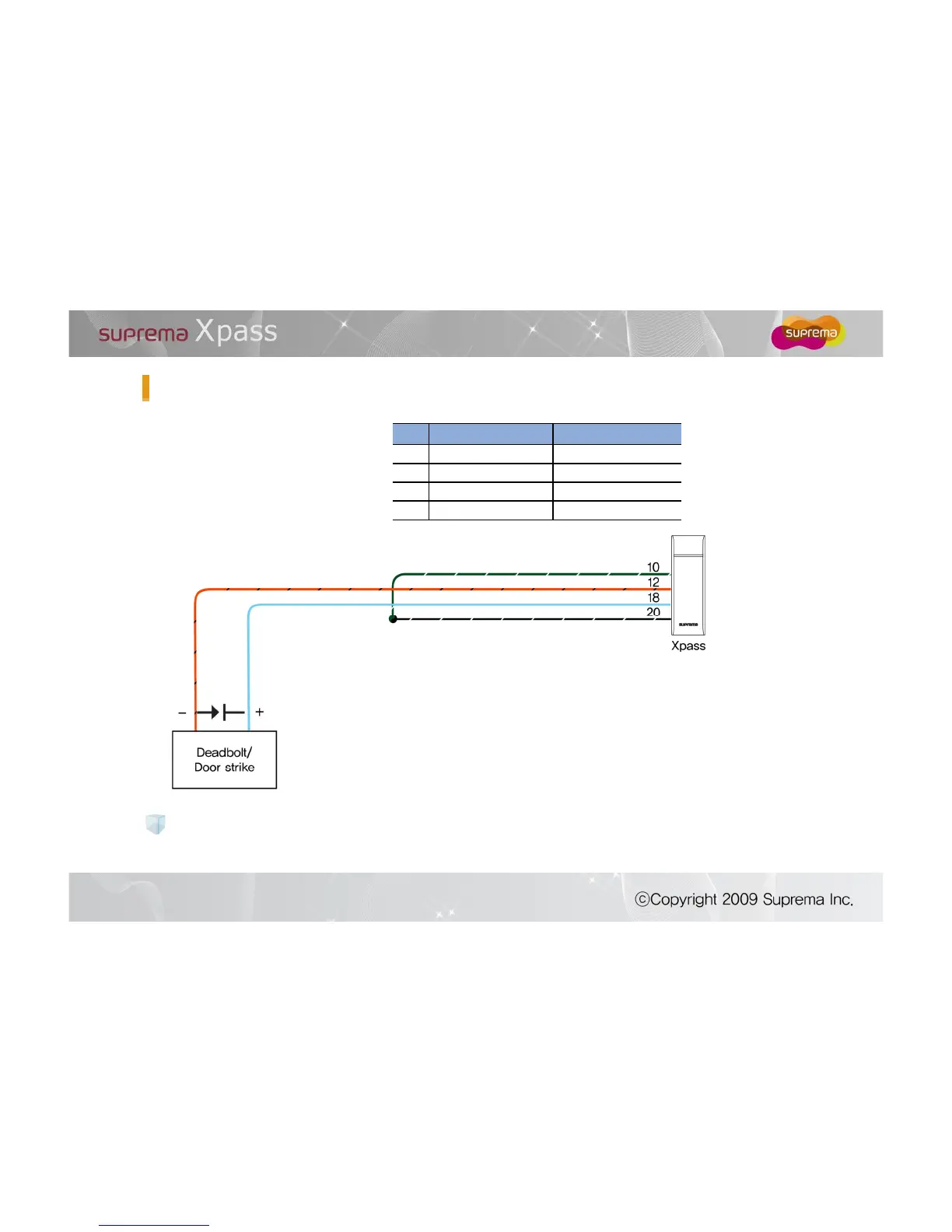

Pin Pin Name Color
10 RLY COM Green (white string)
12 RLY NC Orange (black string)
18 PWR OUT + Light Blue
20 PWR OUT - Black (white string)
Caution : Max. 700mA is supplied using adapter for the external output.
Be careful to satisfy the power capacity in use
