5
Exhaust Deflector
Exhaust deflector can be positioned to
point in any 360° direction. Reposition
deflector by grasping firmly and rotating to
the desired position.
Jam Clearing
replace 4 nosepiece screws.
Disconnect air supply. Push track release button
and remove nails. Unscrew 4 nosepiece screws
to release nosepiece. Clear jam. Replace
nosepiece and

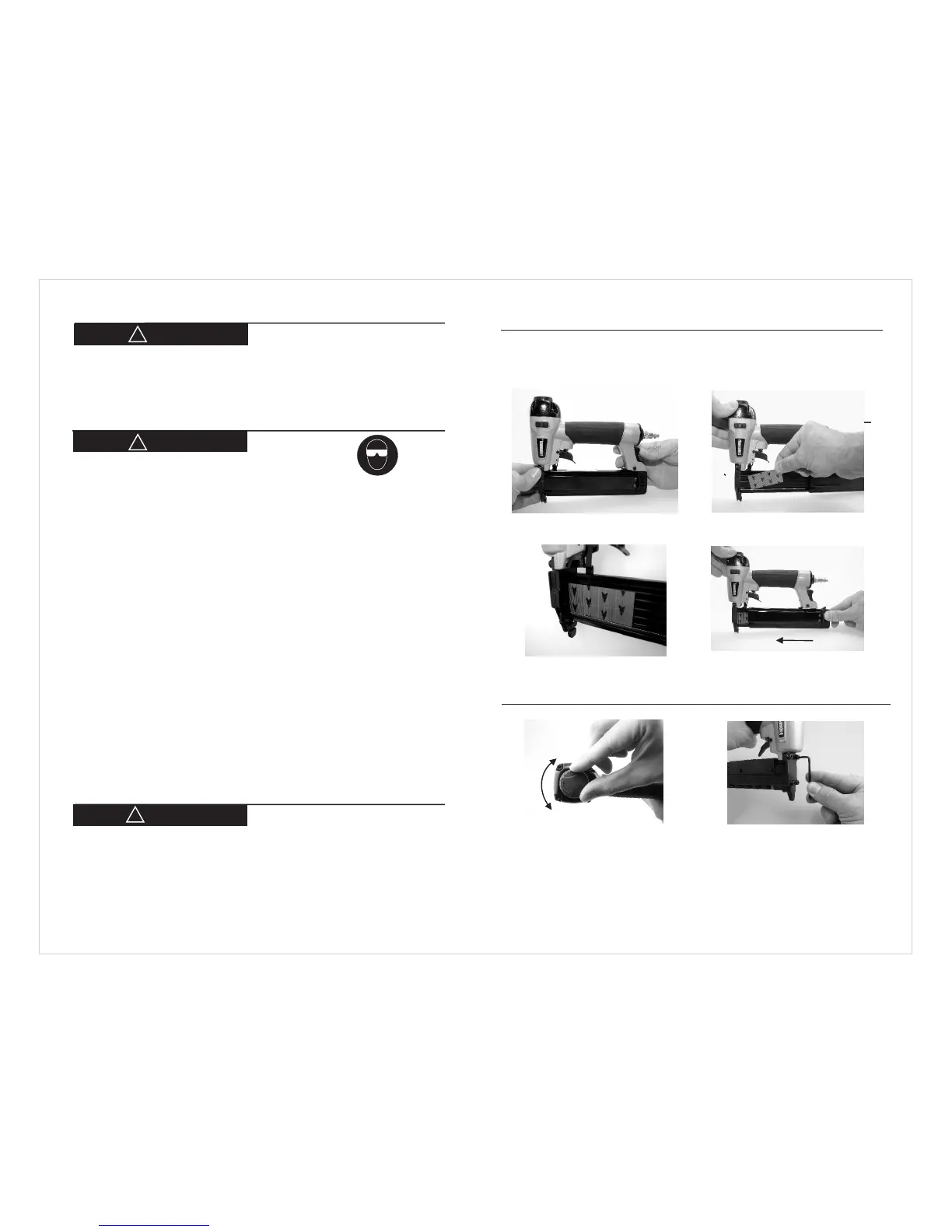

Loading Nails (continued)
To load:
Nailer has easy drop-in side loading. To open: push in track release button and slide track backward.
Drop strip of pin nails onto track magazine making sure that nails are flat against track. Nailer will
not close if improperly loaded.. Push track closed until it locks into place
Push release button Drop pin nails in
Load nails flat against track Push closed
To remove fasteners: Push release button and slide track backward. Remove nails.
Adjusting Air Pressure
Do not exceed 120 psi. Adjust the air pressure at recommended operating pressure 70 to 120
psi according to the length of nails and the hardness of the workpiece.
The correct air pressure is the lowest pressure which will do the job. Using the Nailer at a
higher then required air pressure unnecessarily over stresses the Nailer.
Testing The Nailer
Operators and all others within the work area must wear safety glasses
with side shields conforming to ANSI Z87.1 specifications.
Before actually using the nailer test the nailer using the checklist below.
Disconnect air hose connection from the nailer. Remove all nails for the nailer.
1) Pull the trigger and push the contact safety mechanism.
THE CONTACT SAFETY MECHANISM AND TRIGGER MUST MOVE FREELY.
2) Adjust the air pressure to 70 psi (4.9 bars 5 kgf/cm²).
Connect air hose.
DO NOT LOAD NAILS IN THE NAILER.
THE NAILER MUST NOT LEAK AIR.
3) Hold the Nailer downward without touching the workpiece with the contact safety
mechanism. Pull and hold the trigger for 5 seconds or longer.
THE NAILER MUST NOT OPERATE.
4) Remove your finger from the trigger and press the contact safety mechanism to the
workpiece.
THE NAILER MUST NOT OPERATE.
5) If no abnormal operation is observed, you may load nails in the Nailer. If abnormal operation
occurs, stop using the nailer and contact the service center immediately.
Loading Nails
When loading nails into Nailer:
Disconnect tool from compressed air supply.
Do not depress trigger..
Keep Nailer pointed downward.
! WARNING
! DANGER
! WARNING
ANSI Z87.1
