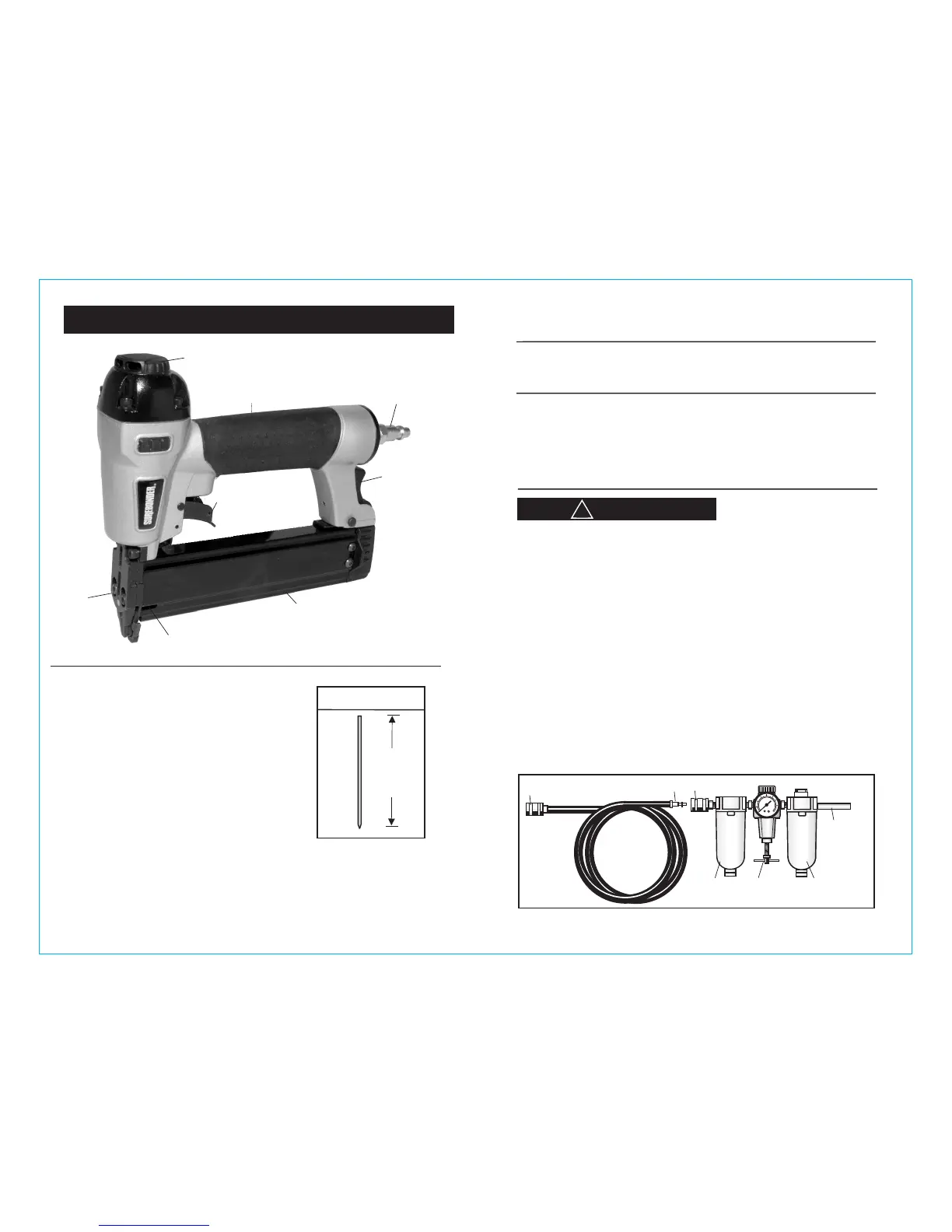

SPECIFICATIONS
Overall Dimensions: 9.50” x 7.75" x 1.75”
Capacity: 100 Pin nails
Nail Length: 1/2” -1-3/8” Pin nails
Nail size: 23 Gauge
Operating Pressure: 60 - 100 SI (4-7 bar)
Air Inlet Size: 1 /4” N .P.T
Weight of Tool: 2..05 lbs.
NAIL SELECTION
23 Gauge 1/2”-1-3/8” Pin Nails
Nosepiece
Trigger
Rubber Grip
Nail magazine
Track
Release Button
Nail reload indicator
Adjustable
Exhaust Cover
OPERATION
1/2” to 1-3/8 “
6
Pin Nail Length
1/4” Male Quick
Release Connector
3
APPLICATIONS
Including but not limited to: Finish / Trimwork, Cabinets, Molding, Furniture Making & Picture
Frames
FEATURES
- Lightweight Housing
- Adjustable Exhaust
- Soft Grip Handle Reduces Fatigue
NEVER use oxygen or other bottled gases. Explosion may occur.
This nailer is designed to operate on clean, dry, regulated compressed air, between 70 and 100
psi. It is preferable to include an air filter, pressure regulator, and automatic oiler within 15 feet
of the tool, if possible.
An air filter is needed to remove contaminates and moisture that are contained in compressed
air; filtering will significantly prolong the life of the tool. If an automatic oiler is not installed,
place 3-5 drops of oil into the tool's air inlet twice a day. Do not install a quick coupler
directly into the tool. Higher pressure drastically reduces tool life.
The nailer comes factory-equipped with a male quick connector. The nailer must always be
connected to the air supply with a coupling that removes all pressure when it is disconnected.
NOTE: all components used with this nailer (air hose, connectors, regulators, filters, etc) must
be rated at 120 psi, OR 120% of the maximum compressor potential, whichever is higher. Do
not connect this nailer to a system with maximum potential air pressure greater than 200 psi.
! DANGER
20
0
40
60
80
100
120
140
160
Lubricator Regulator Filter
To Nailer
Quick Connector Quick Coupler
AIR CONNECTION SET UP
To compressor
