Refer to parts breakdown and/or descriptive
pictures for numbers indicated. Some floor models
come with the table bracket support already on
the column.

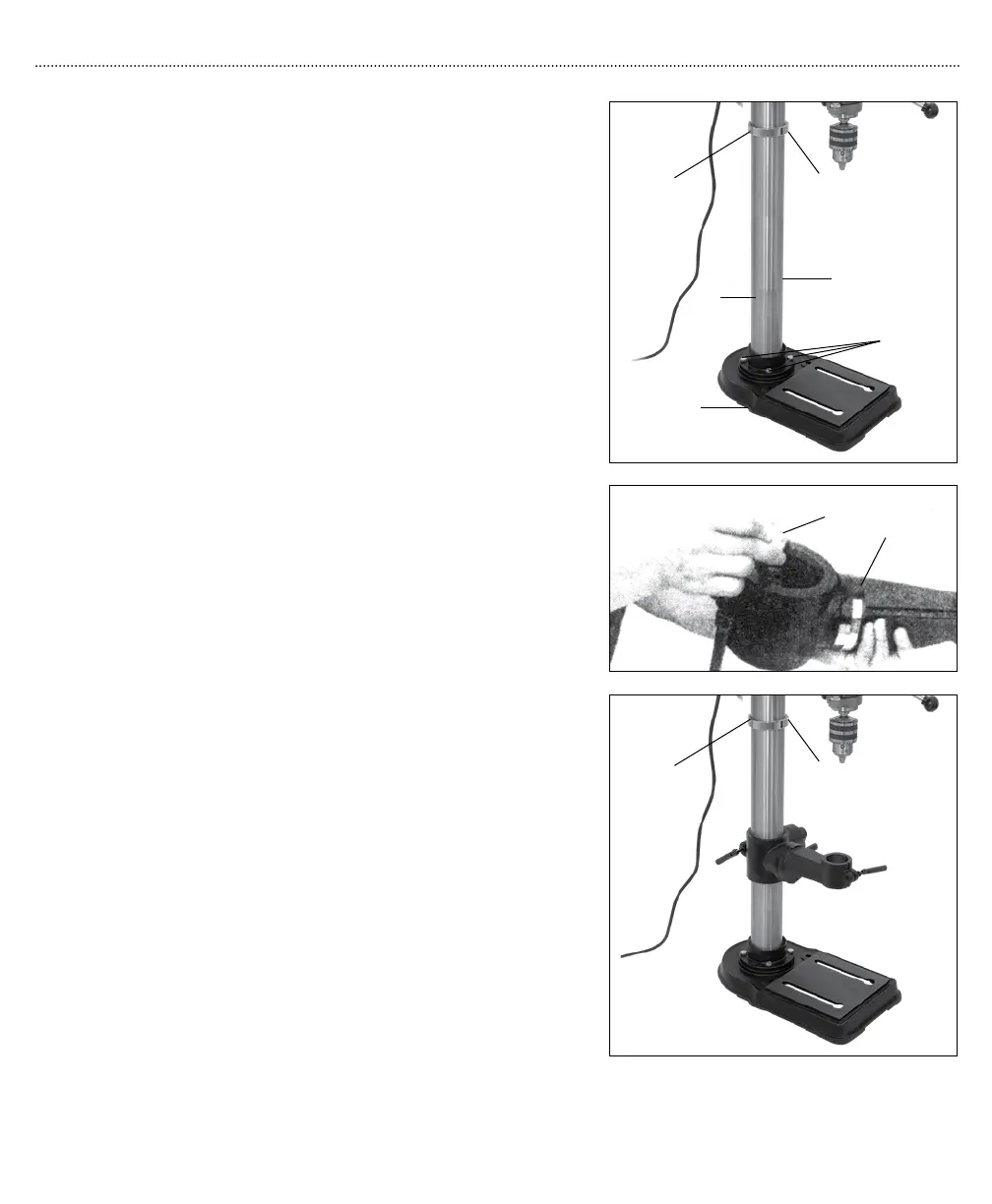

1. Place base (1) on flat and level surface.
2. Bolt column (2A) to base (1) using four hex
head bolts (5) supplied (position gear rack
(22) to right side of base - where applicable).
3. Remove rack ring (23) and rack (22) from
column using supplied hex socket wrench.
4. Install worm pinion (9) into bracket (6) so that
both gears engage smoothly.
5. Slide rack (22) into bracket (6). Then slide
this unfinished assembled unit onto column
(2A)(make sure unfinished portion of rack
is positioned on top and that rack is seated
properly in lower collar).
6. Slide rack ring (23) over column and fasten
with hex socket screw (24).
Assembly Instructions
23
23
22
5
2A
1
9
6
24
24
