• Assemble the shorter part of the strap. Use the spring bar tool or
small screwdriver to compress the spring bars. Make sure that the
spring bars get fully seated so they will not come off their holes.
Console model:
• Refi t the dive computer in the console according the instructions of
the console.
CAUTION!
Check after the fi rst dives for possible moisture under the transparent
battery compartment lid, indicating a leak.
Complete Strap
(V5841)
Short Strap with
buckle (V 5841)
Spring Bar
(K5588)
Long Strap
(K5592)
Vytec Boot K5534

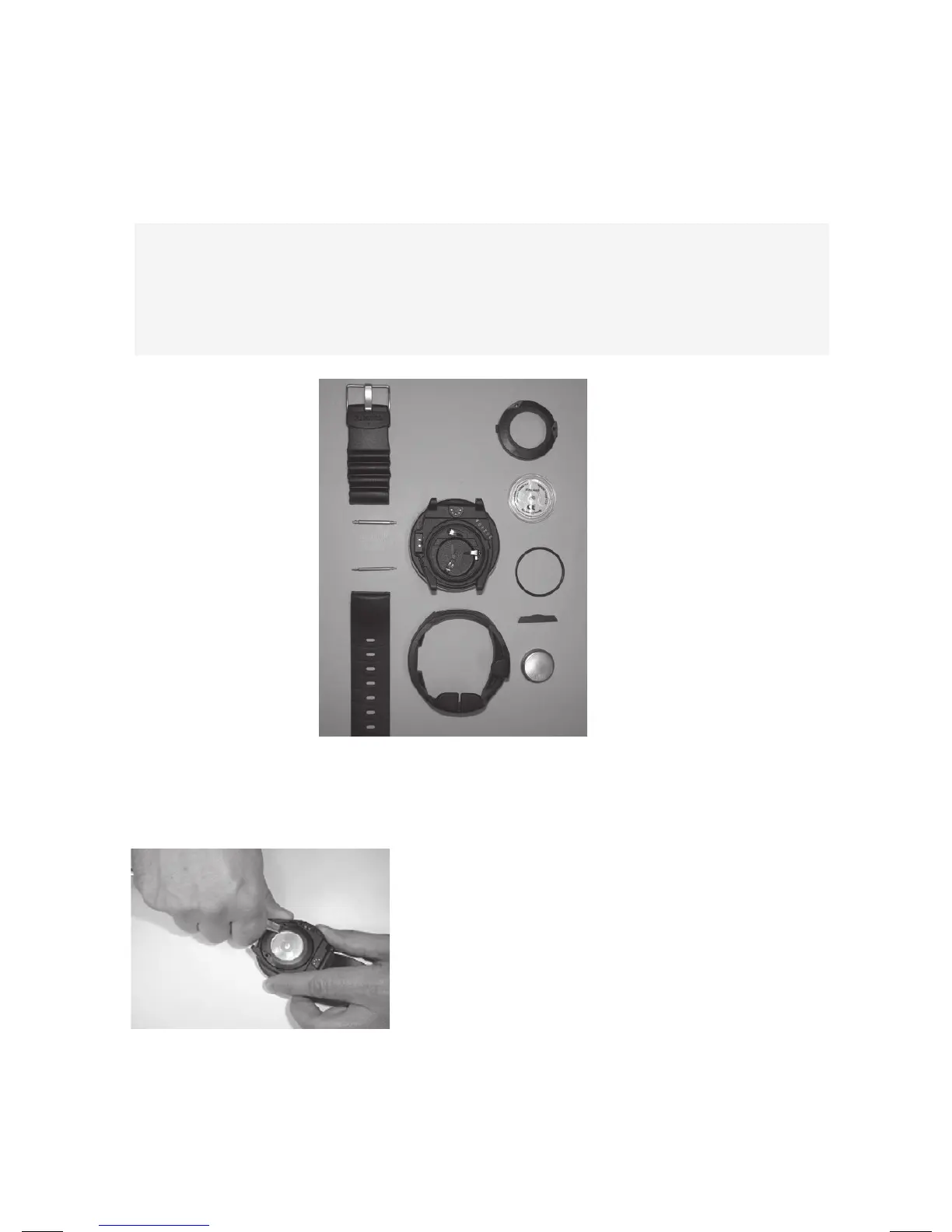

Fig. 5.1 Instrument parts.
The code after the name stands for spare part order number.
Fig. 5.2 Opening of the securing ring.
5.5.2. Wireless Transmitter Battery Replacement
NOTE! It is advisable to contact an authorized Suunto dealer for trans-
mitter battery replacement. It is imperative that the change is made in a
proper manner to avoid any leakage of water into the transmitter.
Securing Ring
(V5844)
Battery Compartment
Lid with buzzer (V5843)
O-Ring
(K5664)
Battery Retainer
(V5842)
Battery
(K5597)
