THROTTLE CABLE PLAY
2.0 – 4.0 mm
(0.08 – 0.16 in)

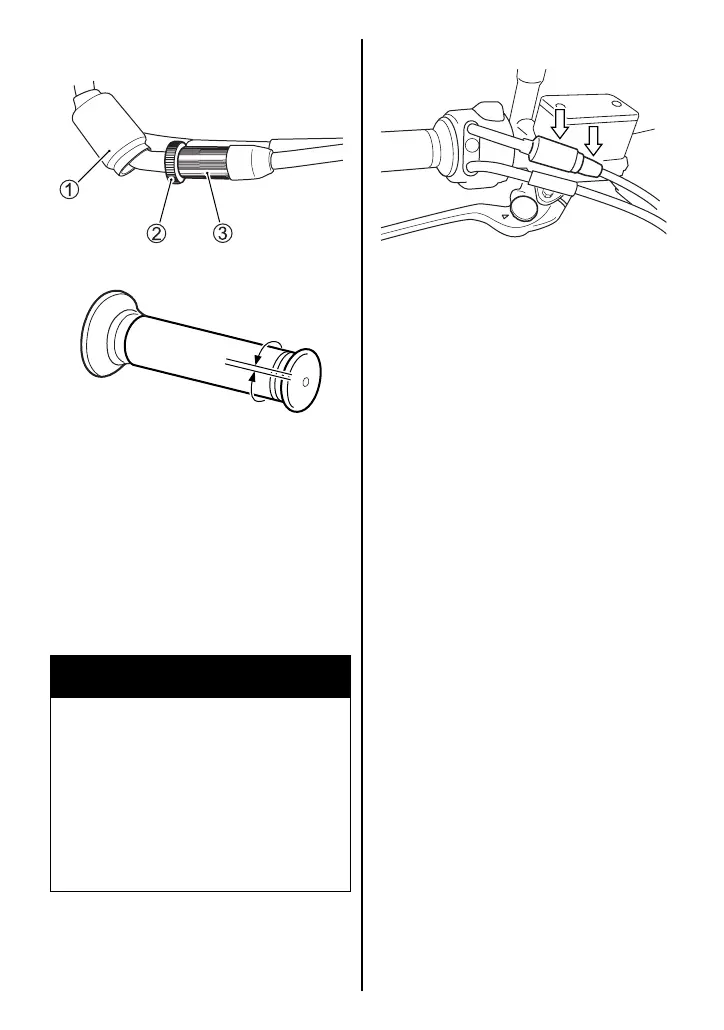

To adjust the cable play:
1. Remove the boot 1.
2. Loosen the lock nut 2.
3. Turn the adjuster 3 so that the
throttle grip has 2.0 – 4.0 mm
(0.08 – 0.16 in) play.
4. Tighten the lock nut 2.
5. Reinstall the boot 1.
THROTTLE CABLE BOOTS
The throttle cable has a boots. Check
that the boots are fit securely. Do not
apply water directly to the boots when
washing. Wipe off dirt from the boots
with a wet cloth when the boots are
dirty.
WARNING
Inadequate throttle cable play can
cause engine speed to rise sud-
denly when you turn the handle-
bars. This can lead to loss of
control and an accident.
Adjust the throttle cable play so
that engine idle speed does not
rise due to handlebar movement.
