CVT FILTER
RIGHT SIDE LEG SHIELD
REMOVAL

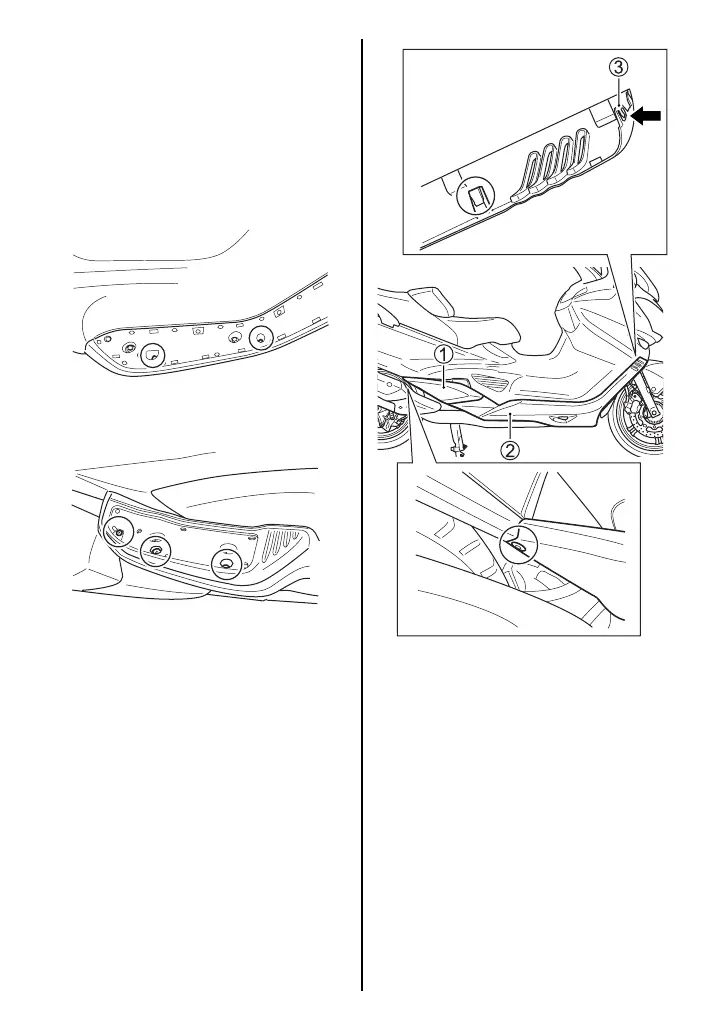

1. Remove the lower leg shield by
referring to the SPARK PLUG sec-
tion.
2. Remove the floor mats.
3. Remove the screws.
4. Remove the fastener.
5. Unhook the hooks and remove the
right side rear lower footboard 1.
6. Unhook the hooks and remove the
right side leg shield 2.
NOTE: To remove the right side leg
shield 2, push the hook 3 located
inside the front side of leg shield and
pull it towards you.
