The headlight pattern must be adjusted to
avoid dazzling oncoming motorists and
can be set for right or left hand traffic.
The light pattern may not be as good.
You should readjust the light pattern by
masking the headlight lens.
Left hand drive vehicle
To readjust the light pattern by masking the
headlight lens;

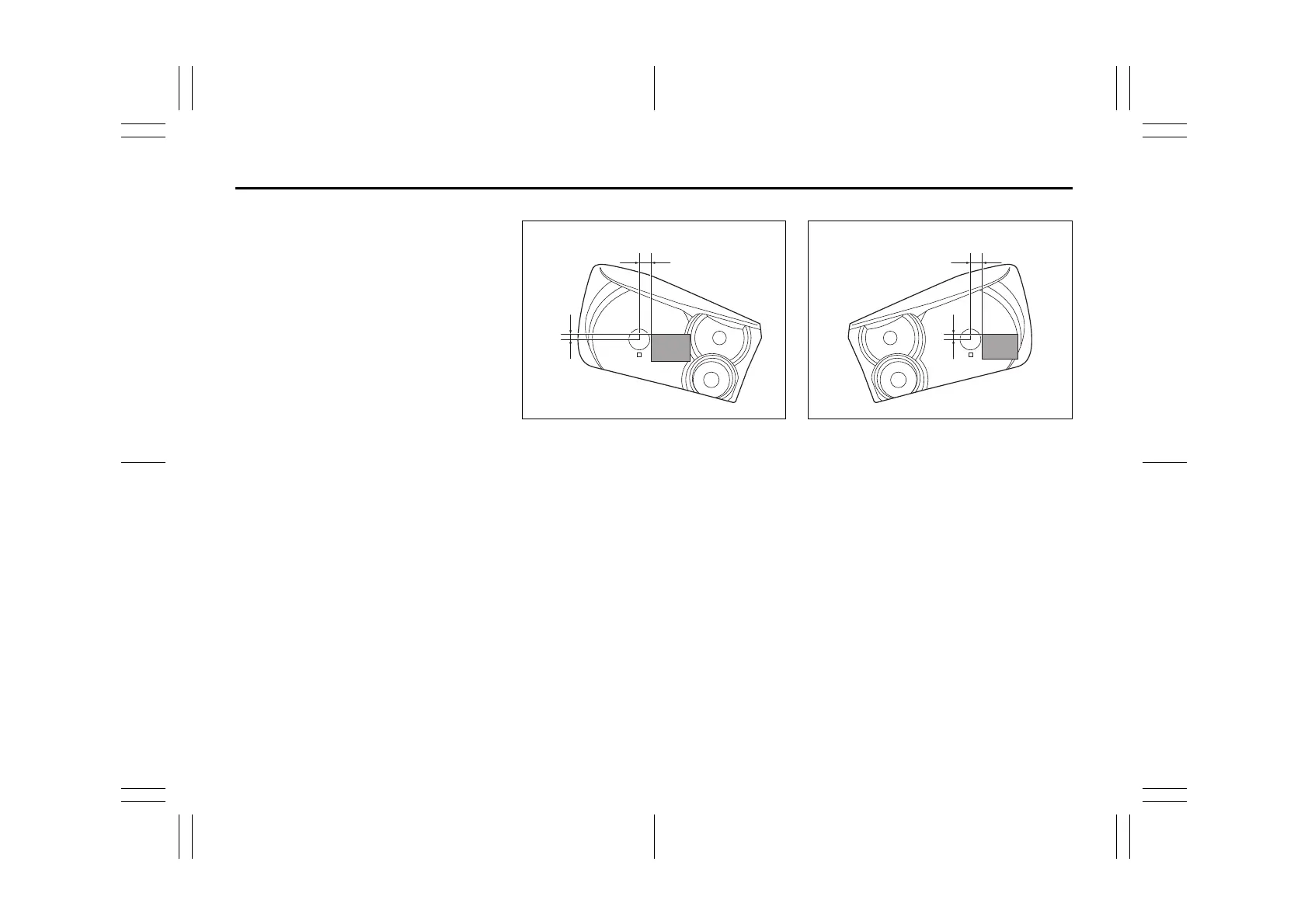

1) Copy the A and B templates as shown
in the below illustrations.
2) Transfer the template to a self-adhesive
waterproof material and cut it out.
3) Position the self-adhesive templates at
the right distance from the center mark
of the headlight lens.
Refer to the dimensions in the following
list:
Right hand (A)
84MM00241
(1) Horizontal line, approximately 22 mm
(2) Vertical line, approximately 10 mm
Left hand (B)
84MM00242
(1) Horizontal line, approximately 22 mm
(2) Vertical line, approximately 10 mm
(1)
(2)
(2)
(1)
