To readjust the light pattern by masking the
headlight lens;

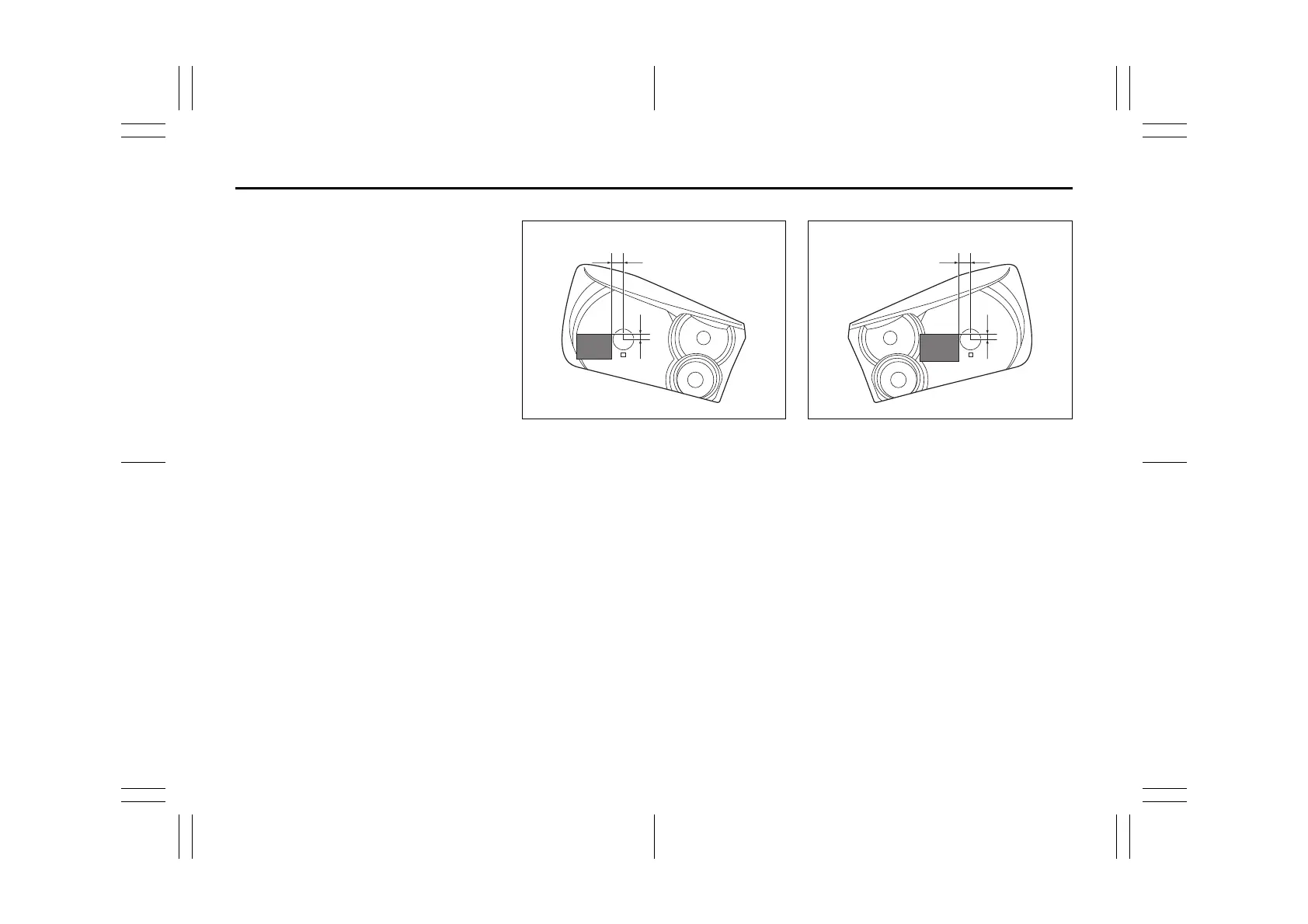

1) Copy the C and D templates as shown
in the below illustrations.
2) Transfer the template to a self-adhesive
waterproof material and cut it out.
3) Position the self-adhesive templates at
the right distance from the center mark
of the headlight lens.
Refer to the dimensions in the following
list:
Right hand (C)
84MM00243
(1) Horizontal line, approximately 22 mm
(2) Vertical line, approximately 10 mm
Left hand (D)
84MM00244
(1) Horizontal line, approximately 22 mm
(2) Vertical line, approximately 10 mm
