Suzuki DF 25 - Page 84

4-14 ELECTRICAL
11
11
1 Stopper ring
22
22
2 Pinion stopper (1)
33
33
3 Spring (1)
44
44
4 Pinion (1)
55
55
5 Front cover (1)
66
66
6 Washer (1)
77
77
7 Shim (1)
88
88
8 Washer
99
99
9 Stator (1)
00
00
0 Armature (1)
AA
AA
A Washer
BB
BB
B Bolt (2)
CC
CC
C Washer (2)
DD
DD
D Washer (2)
EE
EE
E Nut (1)
FF
FF
F Washer (1)
GG
GG
G Nut (1)
HH
HH
H Washer (1)
II
II
I Washer (1)
JJ
JJ
J Washer (1)
KK
KK
K O-ring
LL
LL
L Brush holder (1)
MM
MM
M Screw (2)
NN
NN
N Brush (1)
OO
OO
O Brush (1)
PP
PP
P Brush spring (2)
QQ
QQ
Q Rear cover (1)
DISASSEMBLY

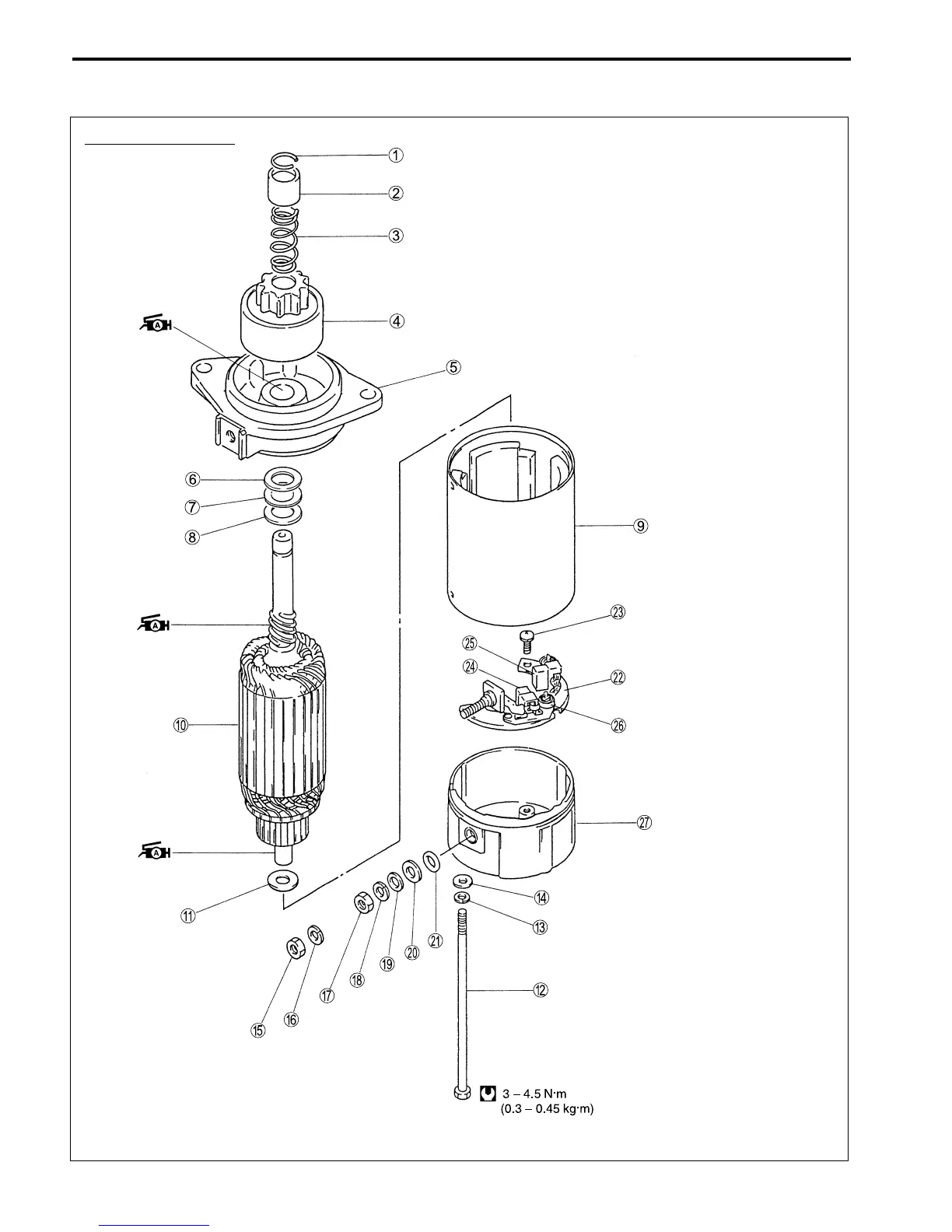

Motor construction
