ELECTRICAL 4-15

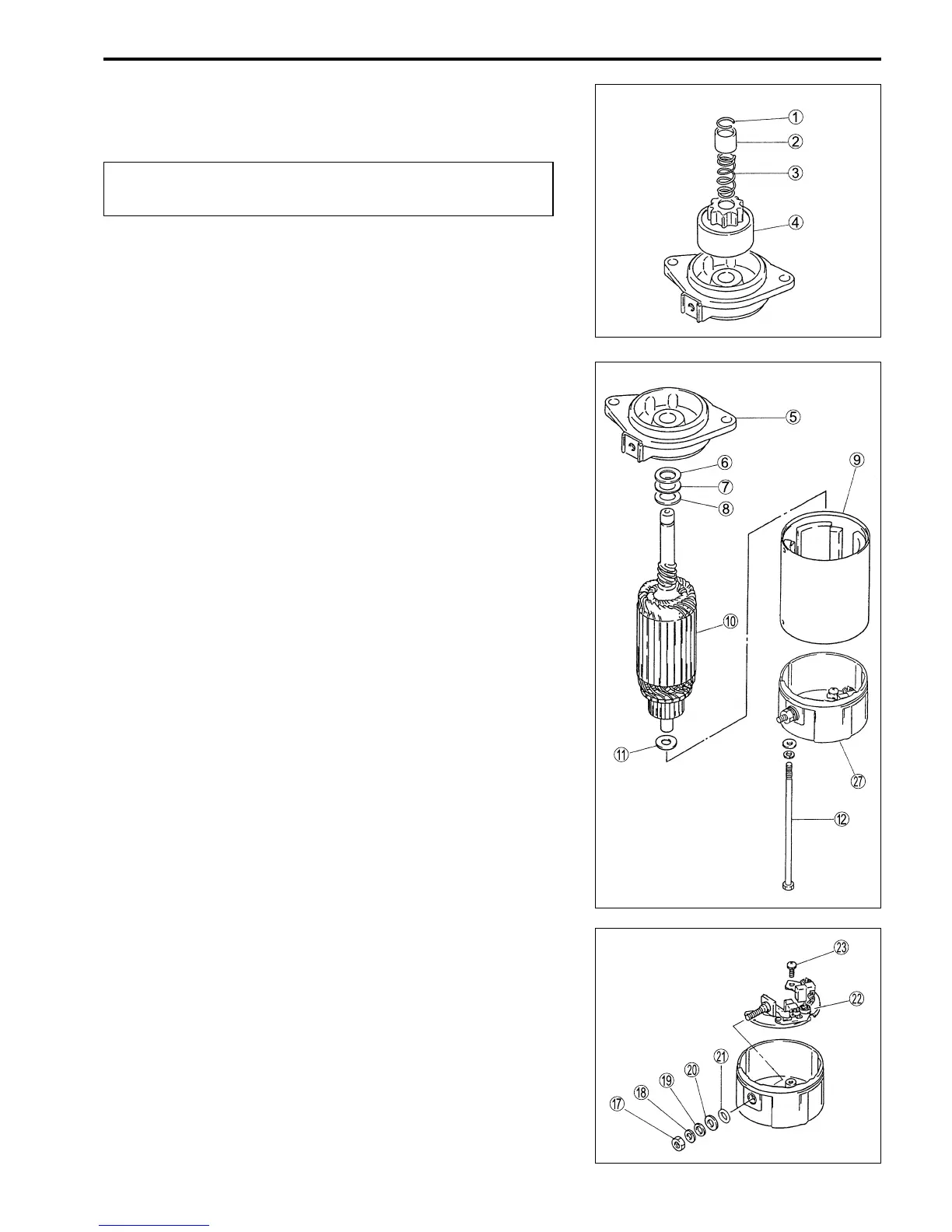

Push down the pinion stopper 2, remove stopper ring 1.
Remove pinion stopper 2, spring 3, and pinion 4.
"
Wear safety grasses when disassembling
and assembling stopper ring.
NOTE:
Using a screw-driver, pry off the stopper ring.
Remove two bolts B.
Remove following parts :
• Front cover 5
• Washer 6, shim 7, washer 8
• Stator 9
• Armature 0
• Washer A
• Rear cover Q
Remove the nut G, washers H / I, plastic washer J and O-
ring K from rear cover.
Remove two screws M and brush holder assembly L.
5
B
