Suzuki DF 50 Service Manual

4-9 ELECTRICAL

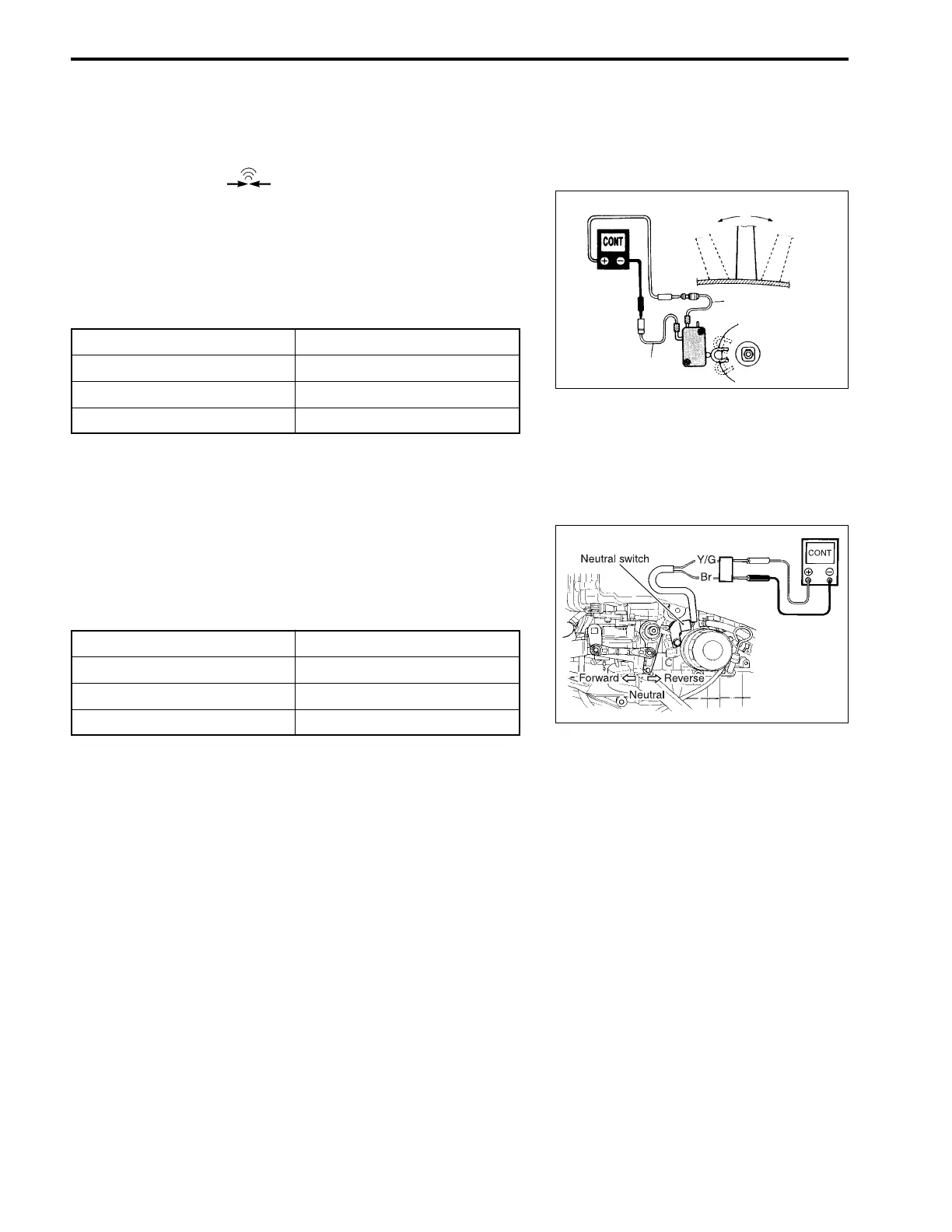

NEUTRAL SWITCH
Check for continuity / infinity of the neutral switch.
09930-99320 : Digital tester
Tester range : (Continuity)
Neutral switch in remo-con box
1. Disconnect neutral switch lead wire from ignition switch and
remo-con box wiring lead.
2. Check continuity / infinity between switch brown wire leads
while operating remo-con handle.
If out of specification, replace neutral switch.
Shift position Tester indicates
Neutral Continuity
Forward Infinity
Reverse Infinity
Neutral switch on cylinder block
1. Disconnect neutral switch lead wires.
2. Check continuity / infinity between Yellow / Green and Brown
lead wires while operating remo-con handle.
If out of specification, replace neutral switch.
NOTE:
After installing neutral switch, check for proper correct function
by operating remo-con handle.
Shift position Tester indicates
Neutral Continuity
Forward Infinity
Reverse Infinity
REVERSE FORWARD
Brown
Brown
z
r

Suzuki DF 50 Specifications

General

Engine Type	4-Stroke
Cylinders	3
Displacement	941 cc
Starting System	Electric
Steering	Remote
Engine Type Detail	DOHC 12-Valve
Maximum Output	50 HP
Ignition System	Digital CDI
Alternator	12V 19A
Gear Ratio	2.27:1
Exhaust	Through Prop Hub Exhaust
Trim Method	Power Trim and Tilt
Max Power	50 HP
Alternator Output	12V 19A
Fuel Delivery System	Sequential Multi Point Electronic Fuel Injection
Full Throttle Operating Range	5, 300 - 6, 300 rpm
Engine Oil Capacity	2.7 L
Full Throttle RPM Range	5300 - 6300 RPM
Oil Capacity	2.7 L
Bore x Stroke	72.5 x 76.0 mm (2.85 x 2.99 in.)
