26 DF40QH / DF50QH
Throttle / Shift cable installation
• Installation

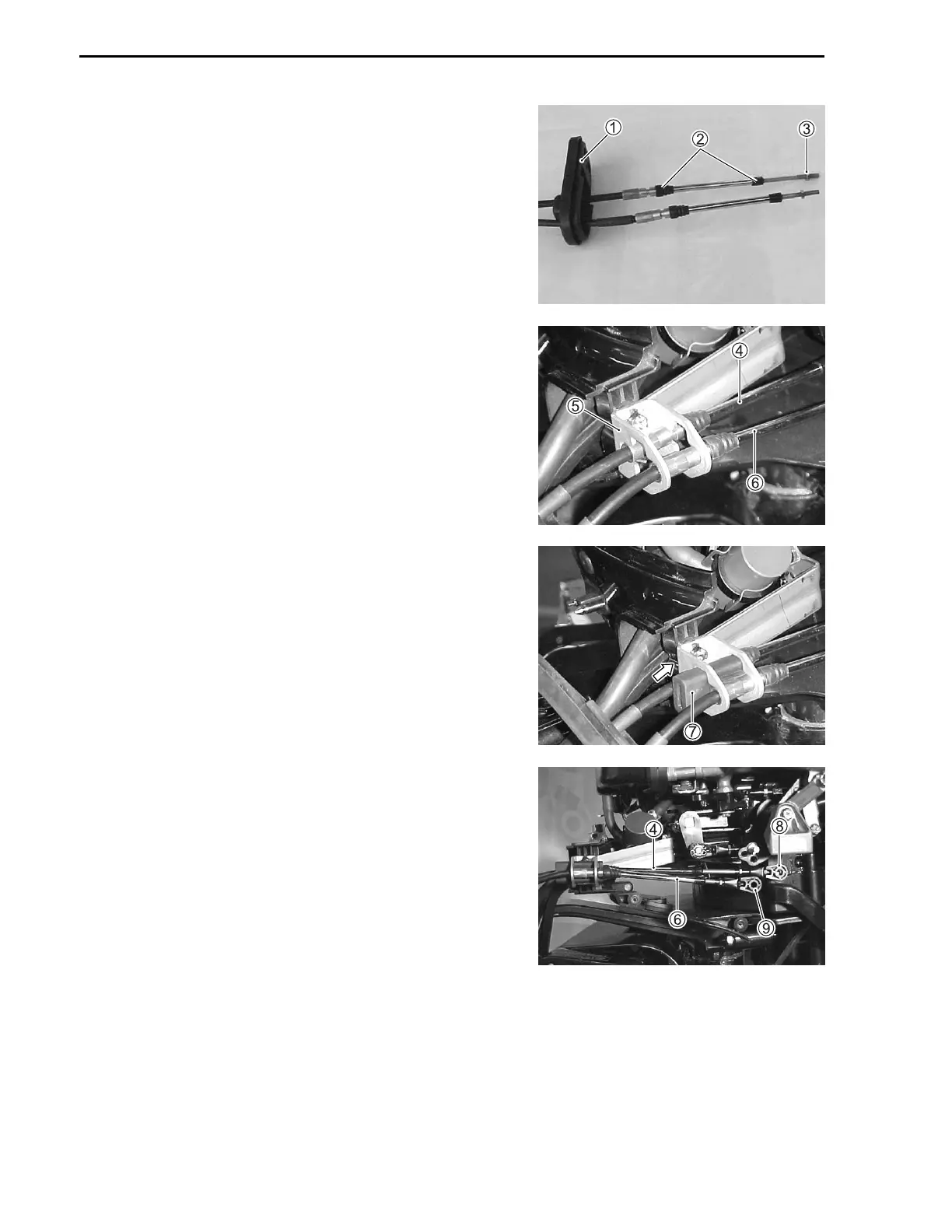

(1) Insert shift cable and throttle cable through the rigging
port grommet 1 as shown in figure.
Install the seals 2 and connector lock nut 3 on both
cables.
(2) Secure the shift cable 4 and throttle cable 6 in the cable
holder 5 by fitting groove on the cable into slots of holder.
(3) Push the cable stopper 7 into the clearance between
both cables until the stopper is fixed on the cable holder.
(4) Screw cable connector 8, 9 onto both cables.
