DF40QH / DF50QH 29
Rigging port grommet

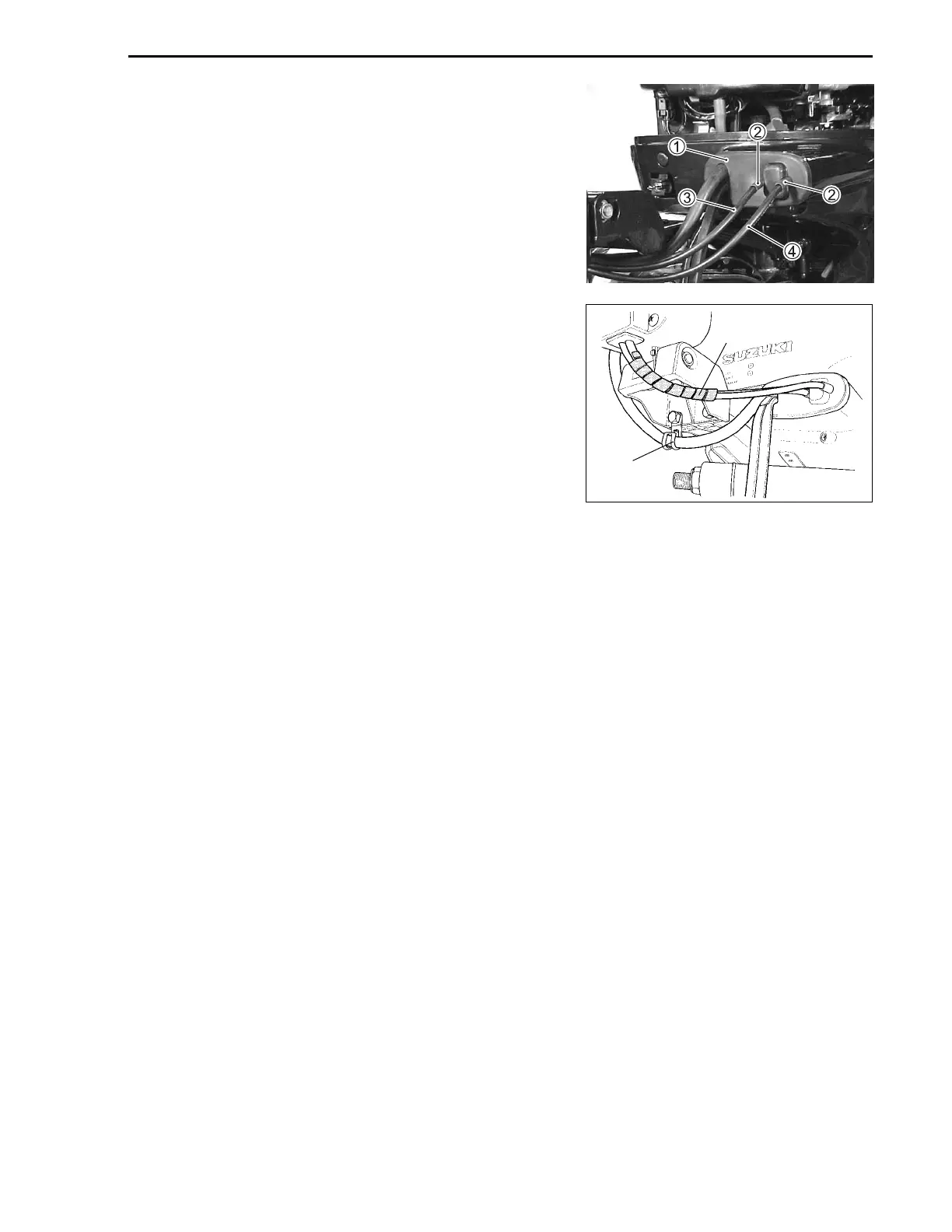

• Install both side lower covers and rigging port grommet 1.
• Push the cable seal tube 2 into the clearance between
shift / throttle cable 3/4 and rigging port grommet.
Harness/Cable routing
• Fix handle wire harness with clamp a as shown at right.
• Bind shift and throttle cable with spiral tube b as shown at
right.
