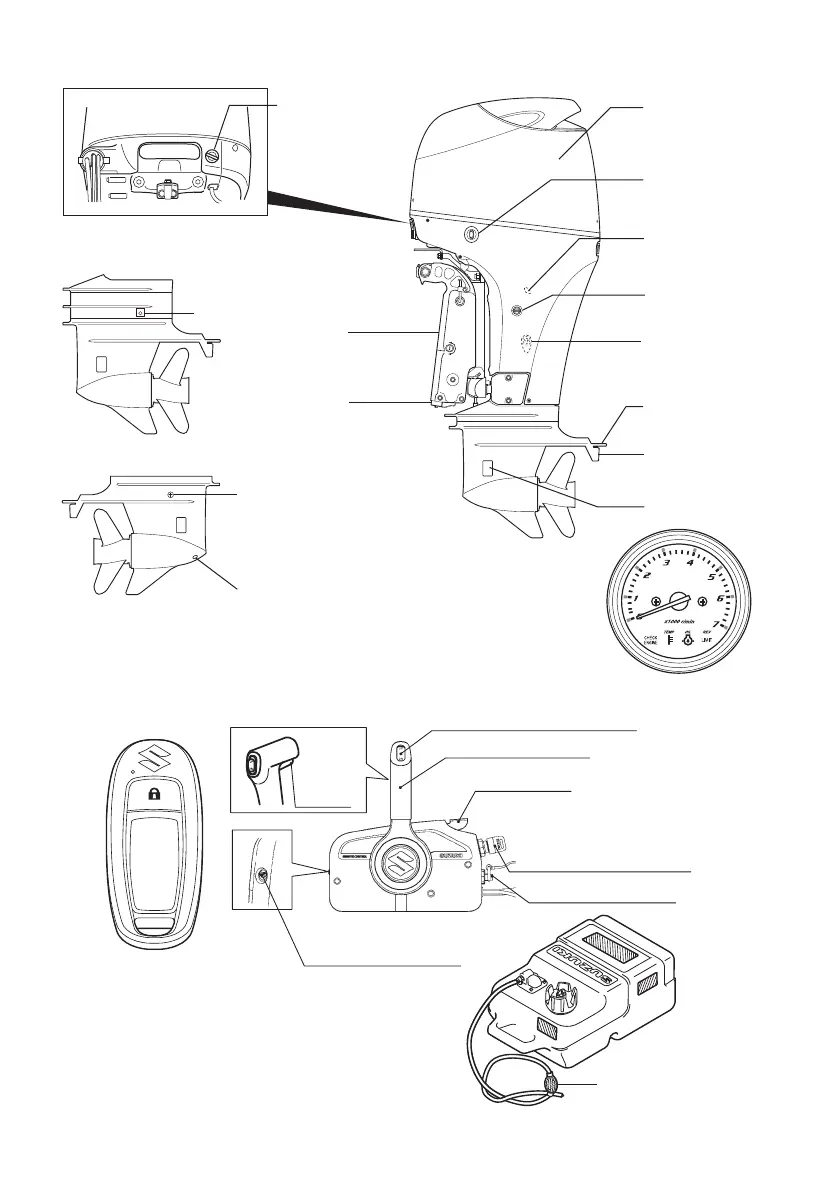

LOCATION OF PARTS
REMOTE CONTROL BOX
Priming bulb
FUEL TANK
Engine oil
drain plug
(Reverse side)
Clamp bracket
Trim tab
Anti-cavitation
plate
Anode
Anode
Water intake hole
Gear oil level plug
Gear oil drain plug
MONITOR-TACHOMETER
Power trim and tilt (P.T.T.) switch
Remote control handle
Warm-up lever
Lock-out
lever
Throttle tension adjuster
KEY-FOB
(IF EQUIPPED WITH
KEYLESS START SYSTEM)
Main switch (If equipped
with Keyless Start System)
Ignition key (If not equipped
with Keyless Start System)
Emergency stop switch
Power trim and tilt
(P.T.T.) switch
Motor cover
Pilot water hole
(Reverse side)
Flush plug
Flush plug
