Suzuki DF100B - Chart of Total Operating Hours Indication; Flowchart of Oil Change Reminder System

74

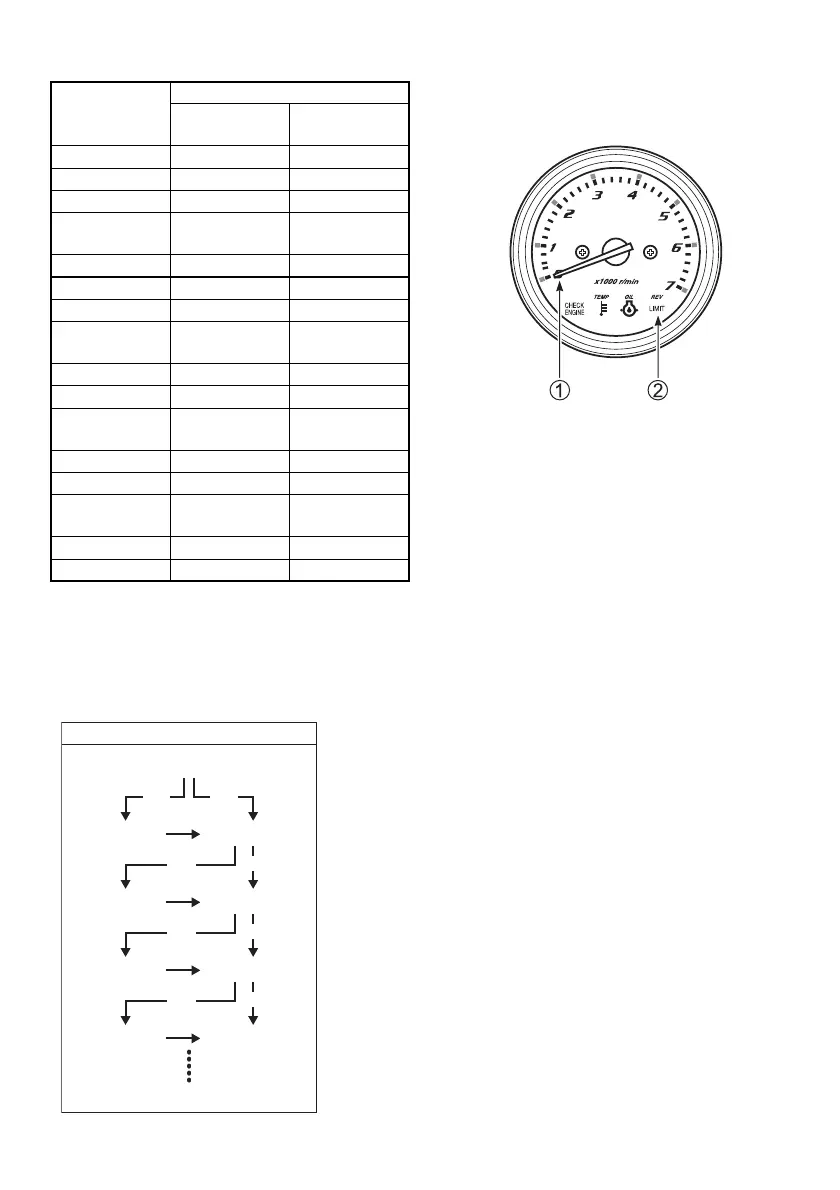

CHART OF TOTAL OPERATING HOURS INDICATION
*: One flashing is corresponded to 500 hours.
FLOWCHART OF OIL CHANGE REMINDER SYSTEM
*1 : Lapse of initial 20 hour’s operation
*2 : Lapse of 80 hour’s operation
*3 : Lapse of 100 hour’s operation
*4 : When performing cancellation before system activation
Total
operating
hours
MONITOR-TACHOMETER
Needle 1
indication
REV-LIMIT
lamp 2 flashing *
0 h- (49 h) No No
50 h- 500 r/min
No
60 h- 600 r/min No
:
:
:
:
:
:
540 h- 5400 r/min No
550 h- 500 r/min 1 time
560 h- 600 r/min 1 time
:
:
:
:
:
:
1040 h- 5400 r/min 1 time
1050 h- 500 r/min 2 times
:
:
:
:
:
:
1540 h- 5400 r/min 2 times
1550 h- 500 r/min 3 times
:
:
:
:
:
:
2030 h- 5300 r/min 3 times
2040 h or over 5400 r/min 3 times
Action
Starting operation
CancellationIndication
(*1) (*4)
CancellationIndication
CancellationIndication
CancellationIndication
Repeat
(*2) (*4)
(*3) (*4)
(*3) (*4)
