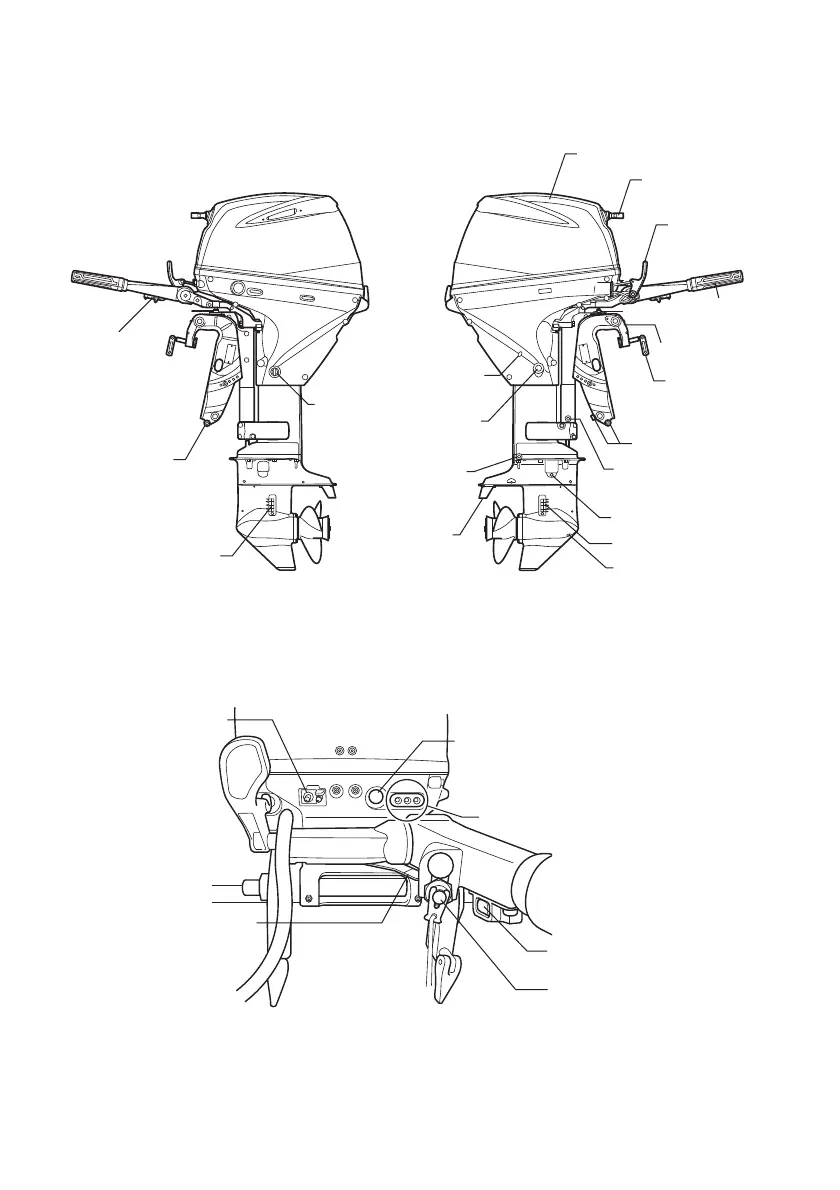

TILLER HANDLE MODEL (DF25ATH/30ATH)
Throttle control
grip
Clamp screw
Engine oil
drain plug
Pilot water hole
Flush plug
Throttle tension
adjuster
Motor cover
Starter grip
Shift lever
Clamp bracket
Starter button
Fuel connector
Water intake
hole
Trim tab
(Anode)
Anode
Anode
(Only transom L)
Gear oil level plug
Water intake hole
Gear oil drain plug
Caution lamp
Combination emergency stop
switch & normal stop button
Steering tension
adjuster
Power trim and tilt (P.T.T.) switch
Anode
Anode
