Suzuki DF40A - LOCATION OF PARTS; Tiller Handle Model Components

12

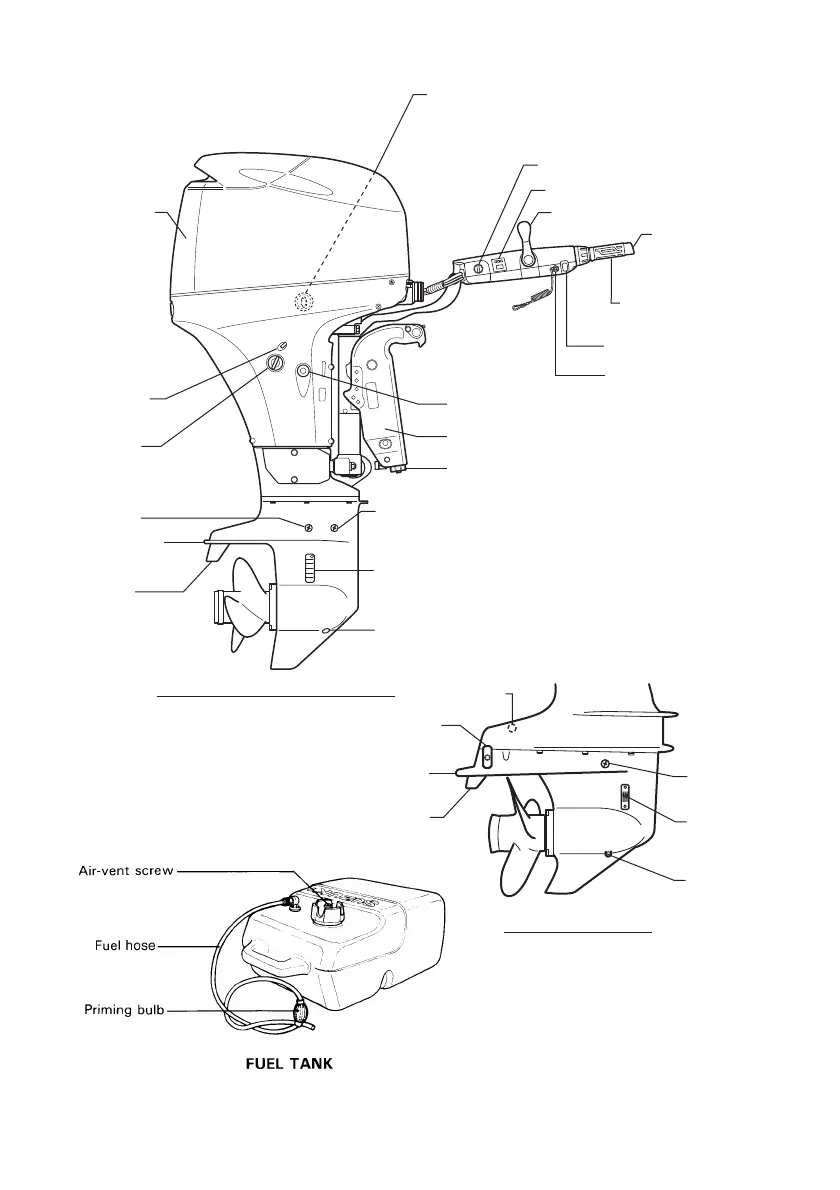

TILLER HANDLE MODEL
Motor cover
Engine oil drain plug
Clamp bracket
Anode
Gear oil level plug
Anti-cavitation
plate
Gear oil drain plug
Pilot water
hole
Flush plug
Anti-cavitation
plate
Trim tab
(Anode)
Flush plug
Power trim and tilt
(P.T.T.) switch
(Reverse side)
(DF40ATH/50ATH/60ATH)
Throttle
control grip
Troll mode switch
Power trim
and tilt (P.T.T.)
switch
(DF40ATH/50ATH/
60ATH)
Emergency
stop switch
Tachometer/Indicator
Shift lever
Ignition key
DF50AVTH/60AVTH
DF40ATH/QH/50ATH/60ATH/QH
Anode
Water intake
hole
Trim tab
Gear oil
level plug
Water intake
hole
Gear oil
drain plug
Anode
(Reverse side)
