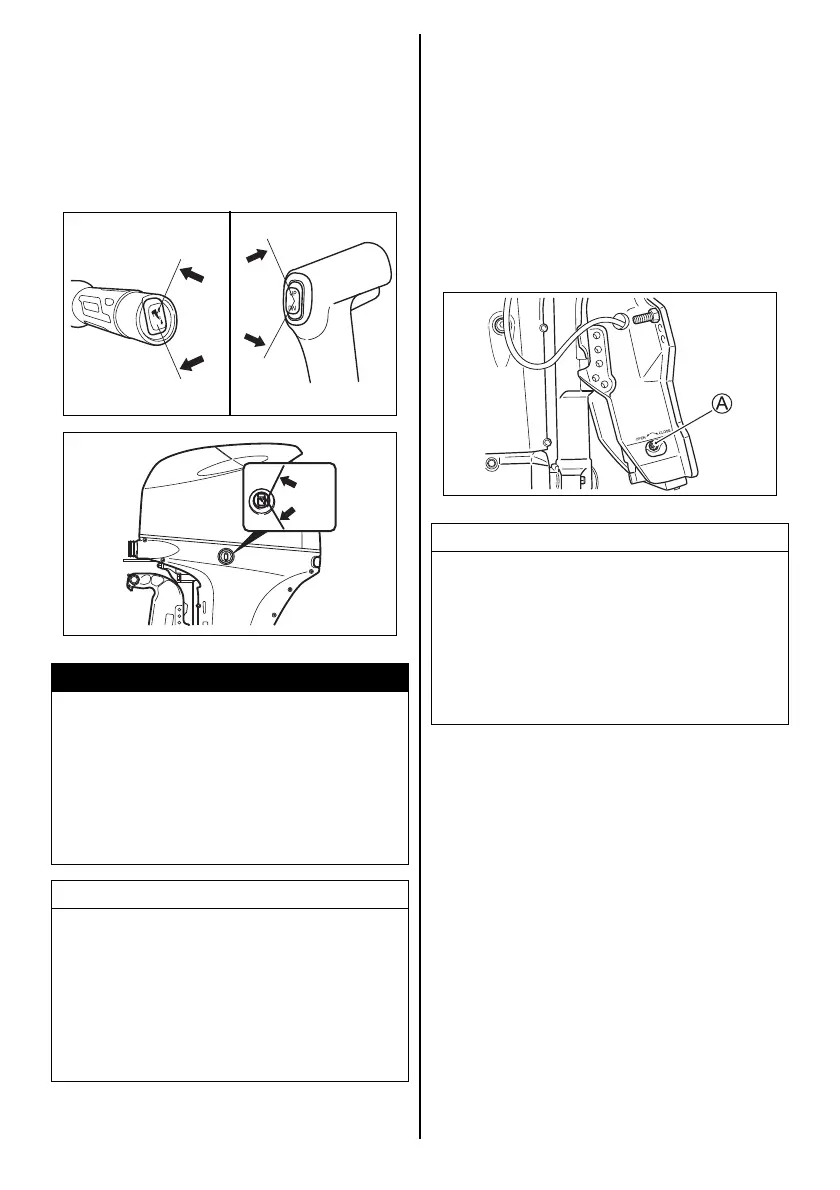

POWER TRIM AND TILT
DF40A (T/TH), DF50A (T/TH), DF50AV
(T/TH), DF60A (T/TH), DF60AV (T/TH)
MODEL
The “Power Trim and Tilt” is operated by press-
ing the switch. To tilt the motor up, press the
upper part of the switch. To tilt the motor down,
press the lower part of the switch.
 WARNING
The power trim and tilt (PTT) switch can be
accidentally activated when the ignition key is
off, resulting in injury.
Keep all persons away from the outboard
motor to help prevent accidental activation of
the PTT system.
NOTICE
If the tiller handle contacts any objects when
tilting motor up, the outboard motor or boat
could be damaged.
When tilting the motor up, position the motor
so the tiller handle will not contact such as a
tackle box, ice chest, or the motor well.
UP
DOWN
DOWN
UP
UP
DOWN
MANUAL TILTING
DF40A (T/TH), DF50A (T/TH), DF50AV
(T/TH), DF60A (T/TH), DF60AV (T/TH)
MODEL
If you are unable to tilt the motor using the
“Power Trim and Tilt” because of an electrical
problem or some other problem, you can move
the motor manually. To tilt the motor up or
down, turn the manual release valve A four
turns counterclockwise, move the motor to the
desired position, then retighten the release
screw.
 CAUTION
The motor is very heavy. When you tilt it man-
ually, you could injure your back or slip and
fall causing injury.
When you tilt the motor manually, ensure that
your grip and footing are secure and that you
are able to support the weight of the engine.
