OPERATING THE TROLL MODE
(Remote control model: Option Item,
Tiller handle model: Standard Item)
On the remote control model, trolling speed can
be controled to install the optional Troll Mode
switch.
Please contact your authorized Suzuki Marine
Dealer for more information.
NOTE:
To monitor engine speed correctly during the
troll mode operation, Suzuki recommends the
use of the Suzuki 2-scale Monitor Tachometer.
(Remote control model)
System Outline
The “Troll Mode System” is activated by press-
ing the troll mode switch, when the motor is run-
ning at in-gear idle speed. By using this system,
you can set and maintain a desired engine
speed with the control switch in a range from
in-gear idle speed (approx. 800 r/min) to 1200
r/min.
How to use the Troll Mode
Setting the troll mode:
1. Shift into forward or reverse gear and make
sure that the throttle is fully closed (in-gear
idle speed).
2. Press the “UP” or “DN” position of the troll
mode switch, until you hear one beep.
On the remote control model, the REV/TRL
(or REV) lamp on the monitor gauge will
flash indicating that the motor has been set
to the troll mode. The REV/TRL (or REV)
lamp will continue to flash while the motor is
in the troll mode.

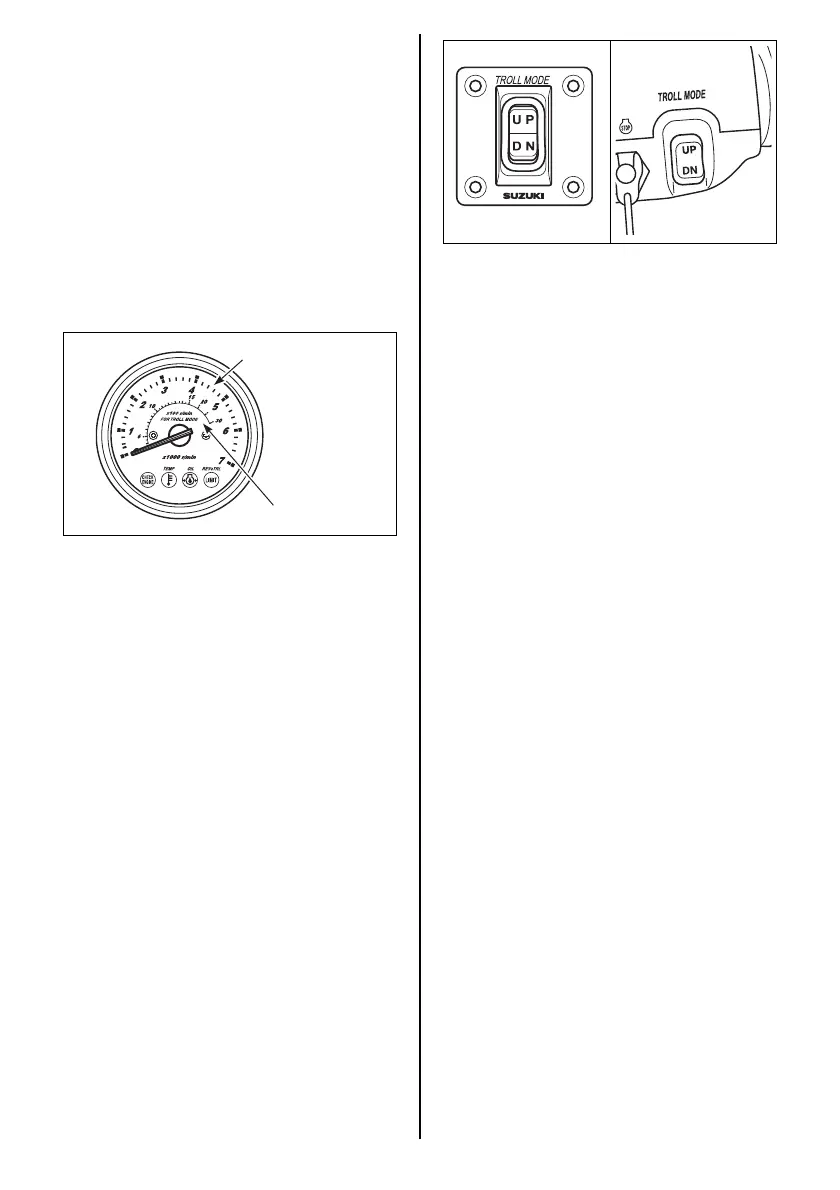

Usual scale
Trolling mode scale
NOTE:
The troll mode system will not operate if the
switch is depressed when the handle/shift lever
is in the neutral position.
Adjusting trolling speed:
• When pressing the “UP” switch, one short
beep sounds and the engine speed
increases by 50 r/min.
• When pressing the “DN” switch, one short
beep sounds and the engine speed
decreases by 50 r/min.
NOTE:
• When pressing the “DN” switch at the lower
limit of trolling speed, the engine speed will
not change and three long (0.8 sec.) beeps
will sound.
• When pressing the “UP” switch at the upper
limit of trolling speed, the engine speed will
not change and three long (0.8 sec.) beeps
will sound.
• Shift operation and throttle control remain
operational, even in troll mode.
Cancelling the troll mode:
The troll mode can be cancelled by shifting the
handle/shift lever to the neutral position, or by
increasing the engine speed to 3000 r/min or
more. In both cases, two short (0.1 sec.) beeps
sound when cancelling the troll mode.
Troll mode switch
Tiller handle modelRemote control model
