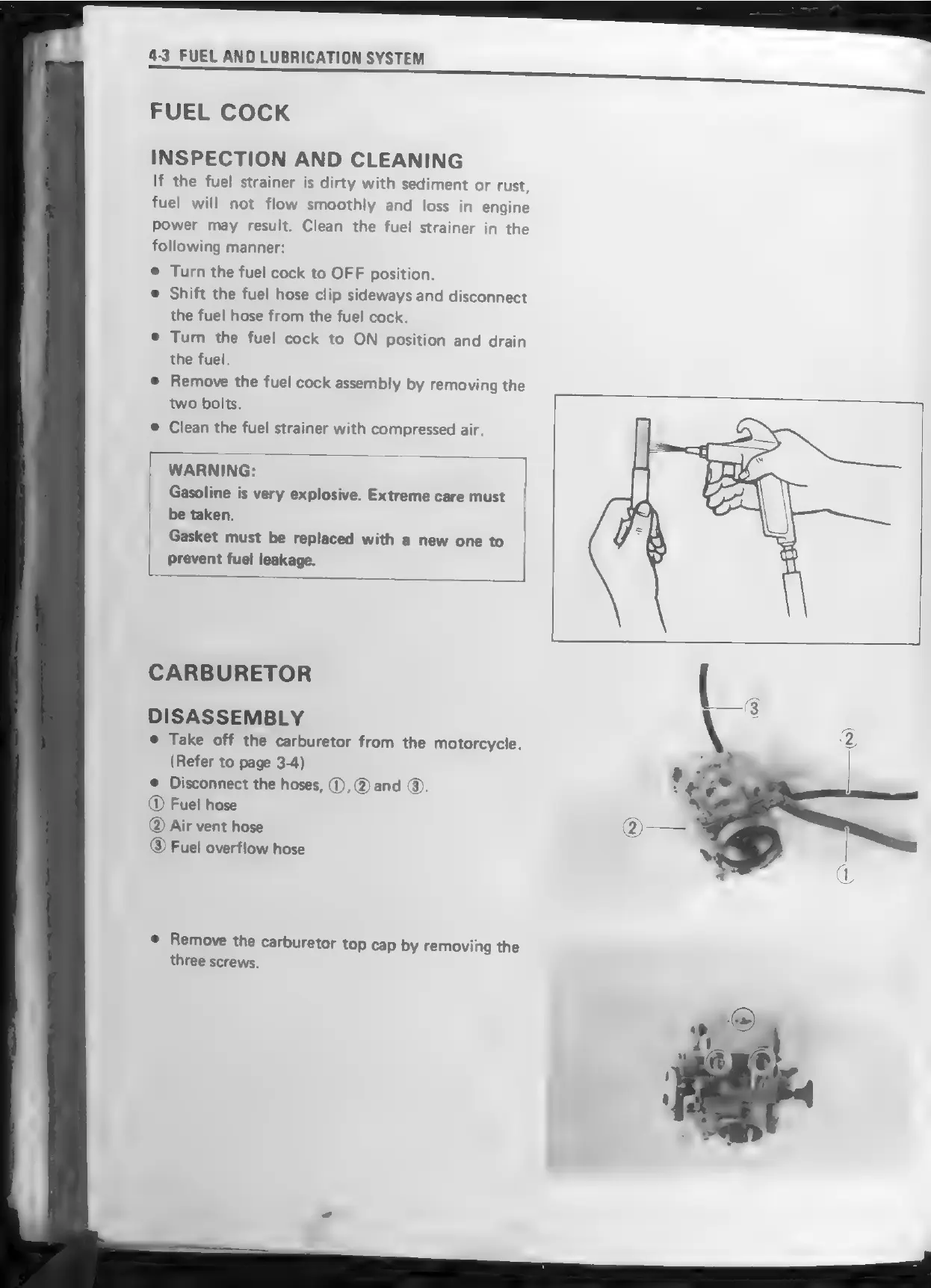

Suzuki DR600S - Fuel Cock Inspection and Cleaning; Carburetor Disassembly

4-3
FUEL
AND
LUBRICATION
SYSTEM
FUEL COCK
INSPECTION
AND
CLEANING
lf
the
fuel
strainer
is
dirty
with
sediment
or
rust,
fuel
will
not
flow
smoothly
and
loss
in
engine
power
may
result.
Clean
the
fuel
strainer
in
the
following manner:
e
Turn
the
fuel
cock
to
OFF
position.
@
Shift
the
fuel
hose
clip
sideways
and
disconnect
the
fuel
hose
from
the
fuel
cock.
@
Turn
the
fuel
cock
to
ON
position
and
drain
the
fuel.
e@
Remove
the
fuel
cock
assembly
by
removing
the
two
bolts.
© Clean the fuel strainer with compressed air.
Gasoline
is
very
explosive.
Extreme
care
must
be
taken.
Gasket
must
be
replaced
with
a
new
one
to
WARNING: ]
|
prevent
fuel
leakage.
|
CARBURETOR
DISASSEMBLY
e@
Take
off
the
carburetor
from
the
motorcycle.
(Refer
to
page
3-4)
©
Disconnect
the
hoses,
(1),@)and
@).
@ Fuel hose
@ Air vent hose
@ Fuel overflow hose
©
Remove
the
carburetor
top
cap
by
removing
the
three
screws.
