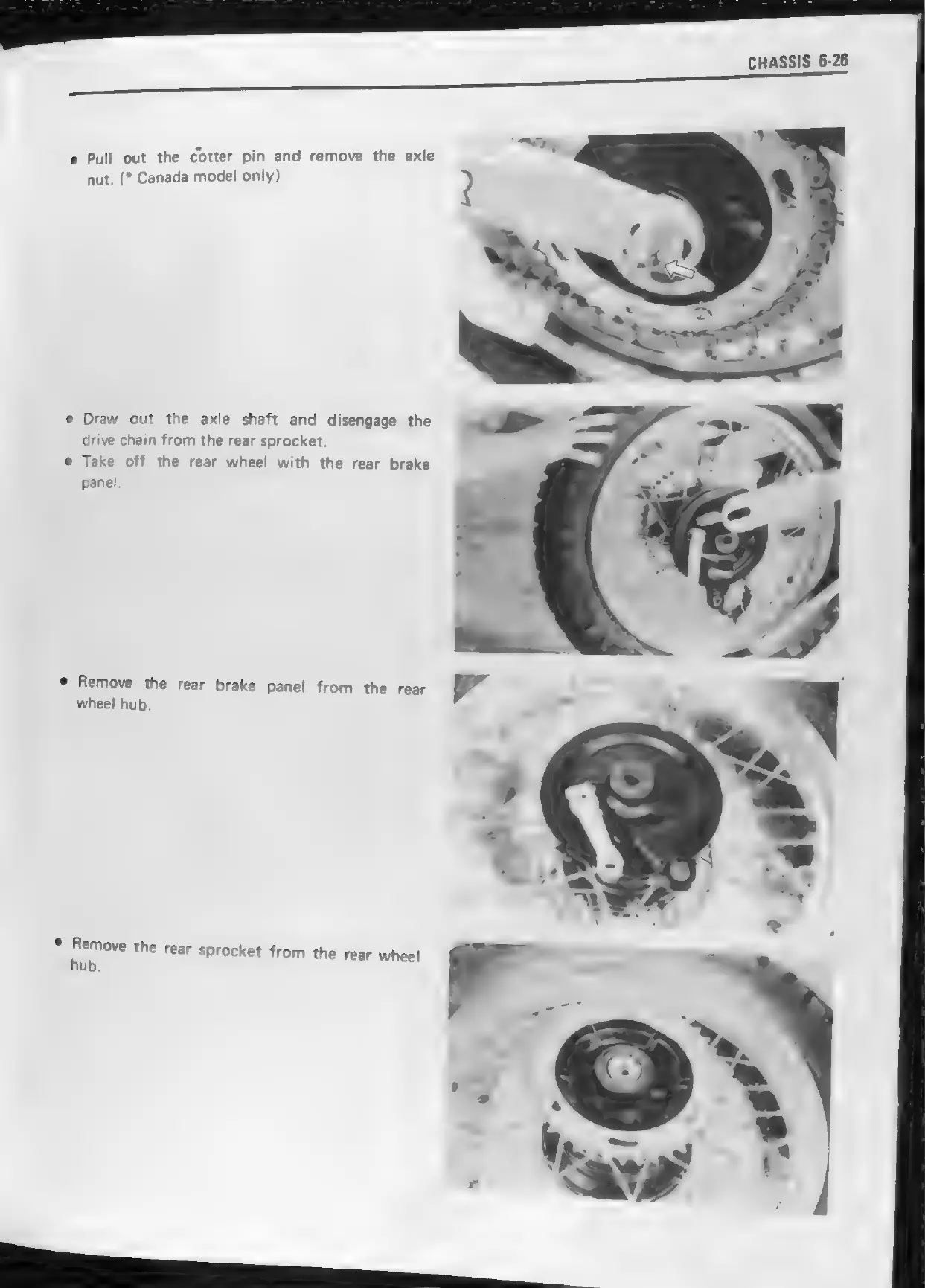

CHASSIS
6-26
e
Pull
out
the
cotter
pin
and
remove
the
axle
nut.
(*
Canada
model
only)
e
Draw
out
the
axle
shaft
and
disengage
the
drive
chain
from
the
rear
sprocket.
e
Take
off
the
rear
wheel
with
the
rear
brake
panel.
©
Remove
the
rear
brake
panel
from
the
rear
wheel
hub.
©
Remove
the
rear
sprocket
from
the
rear
wheel
hub.
