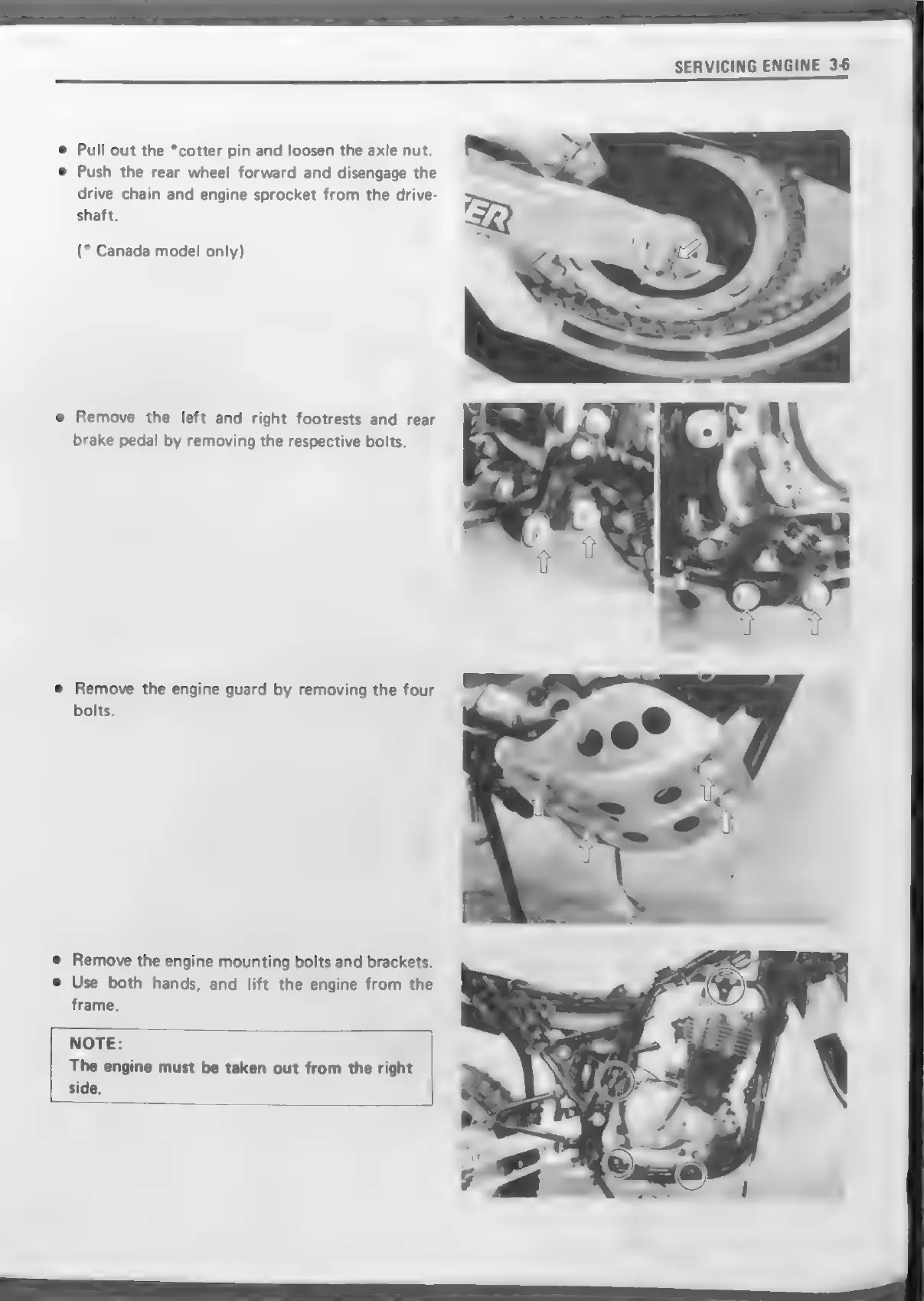

e Pull out the *cotter pin and loosen the axle nut.
e Push the rear wheel forward and disengage the
drive chain and engine sprocket from the drive-
shaft.
(* Canada model only)
e
Remove
the
left
and
right
footrests
and
rear
brake
pedal
by
removing
the
respective
bolts.
e@ Remove the engine guard by removing the four
bolts.
© Remove the engine mounting bolts and brackets.
e@ Use both hands, and lift the engine from the
frame.
NOTE:
The engine must be taken out from the right
side.
SERVICING ENGINE 346
