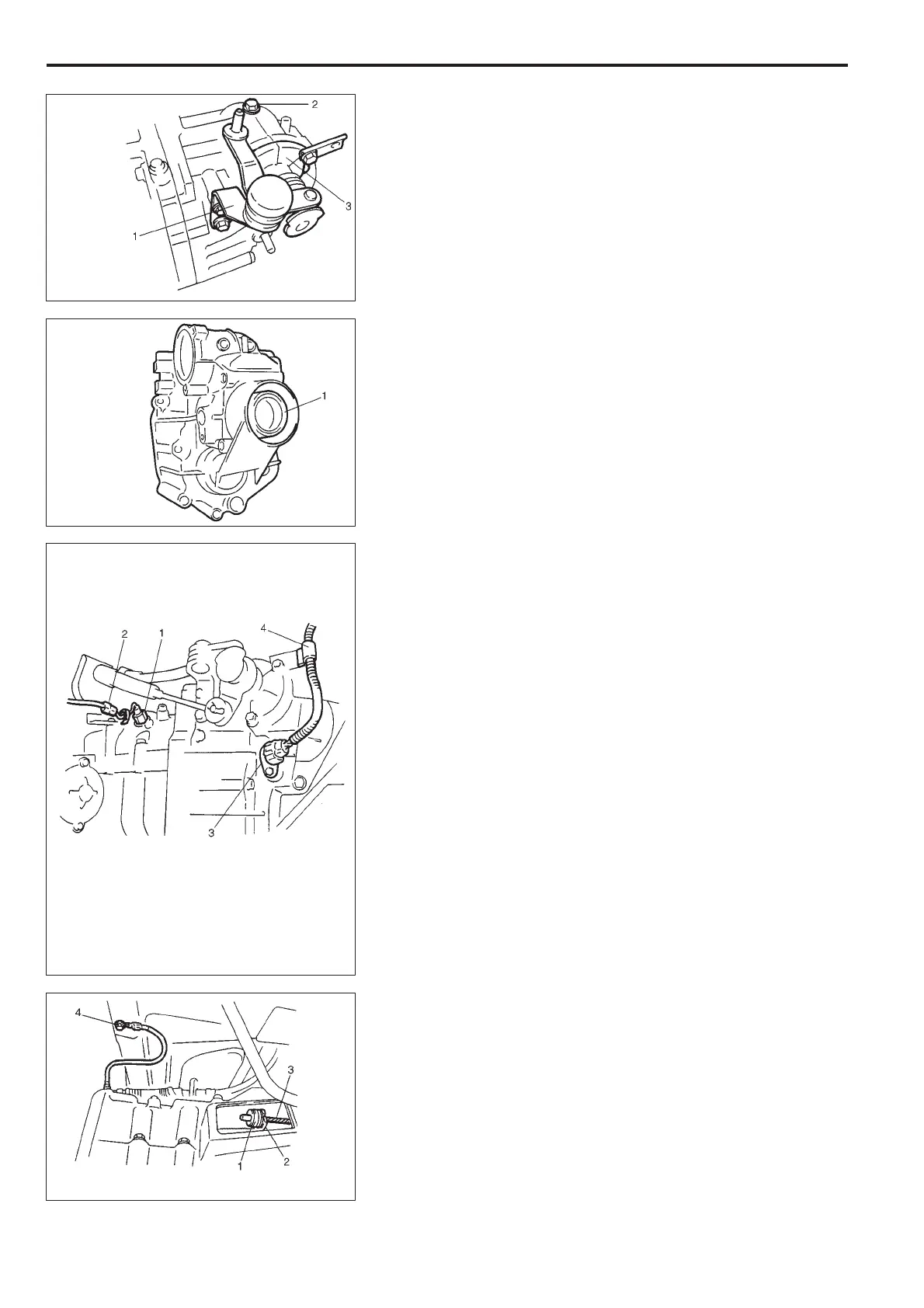

Suzuki GA413 - Extension Case

EXTENSION CASE
Removal/Installation
1) Remove select cable lever (1) and gear shift stop bolt (2).
2) Remove shift & select shaft assembly (3).
3) Support engine/transmission assy on jack.
4) Disconnect vehicle speed sensor coupler and remove engine
rear mounting.
5) Remove bolts securing extension case to transmission case,
and then take off extension case.
6) Remove extension case seal (1) as necessary.
Reverse removal procedure for installation referring to 7A–24.
DISMOUNTING
1) Disconnect negative (–) cable from battery terminals and hoist
vehicle.
2) Disconnect back-up light switch lead wire at coupler.
3) Disconnect Black/Yellow lead wire and positive (+) cord from
starting motor. Remove starting motor from transmission case.
4) Disconnect coupler from speed sensor and free its harness
from transmissions.
5) Remove drain plug to drain oil in transmission.
1. Back-up light switch
2. Back-up light switch coupler
3. Speed sensor
4. Clamp
6) Remove transmission front case cap and take off clutch cable
end (1) from clutch release fork (2). Disconnect clutch cable as-
sembly from transmission.
7) Remove transmission to body ground cable bolt (4).
3. Clutch cable
7A-6 MANUAL TRANSMISSION
