Suzuki GRAND VITARA XL-7 Service Manual

6A3-22 ENGINE MECHANICAL (RHZ ENGINE)

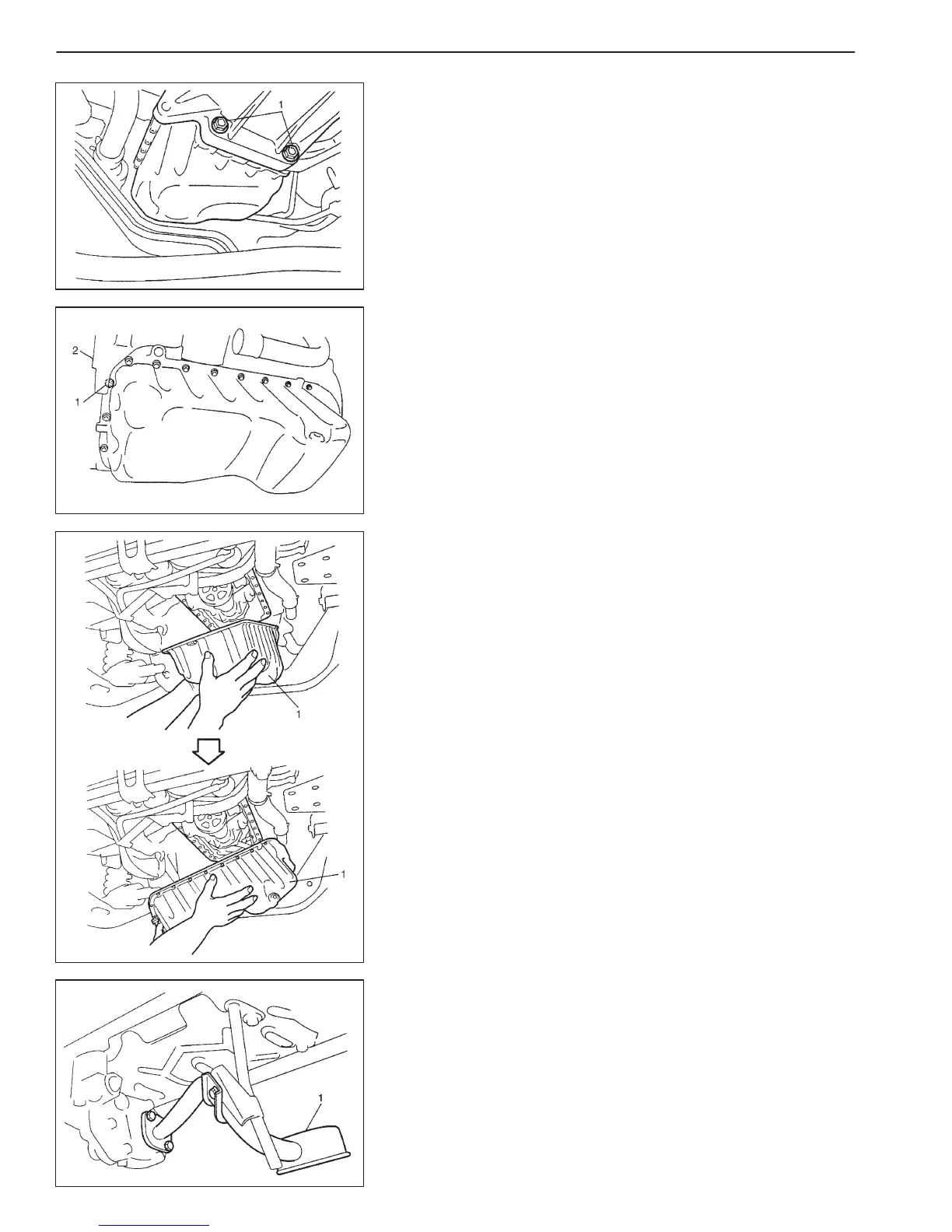

8) Remove transmission fastening bolts (1).
9) Remove oil pan bolts.
Bolt (1) at the rear of power steering pump bracket (2) should
be loosened only. It is not possible to remove it due to interfer-
ence with bracket.
10) Remove oil pan (1) from cylinder block as shown.
11) Remove oil pump strainer (1).
