6E3-18 ENGINE AND EMISSION CONTROL SYSTEM (RHZ ENGINE)

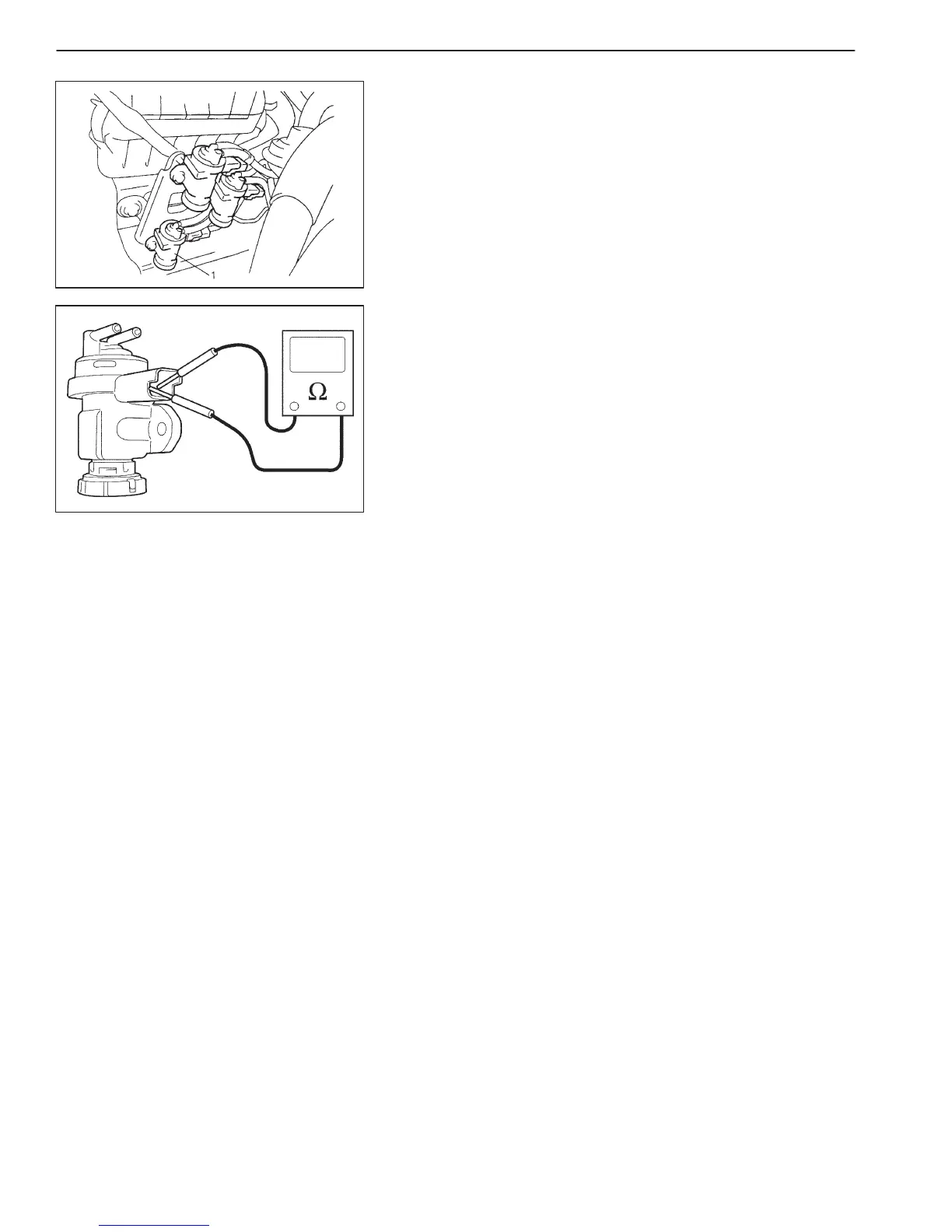

BOOST PRESSURE REGULATOR SOLENOID VALVE
REMOVAL
1) Disconnect negative cable at battery.
2) Remove air cleaner outlet hose.
3) Disconnect connector from boost pressure regulator solenoid
valve (1).
4) Disconnect vacuum hoses from boost pressure regulator sole-
noid valve.
5) Remove boost pressure regulator solenoid valve from bracket.
INSPECTION
Measure resistance between each two terminals.
If resistance is out of specification, replace boost pressure regula-
tor solenoid valve.
Boost pressure regulator solenoid valve resistance: 15 – 20 Ω
INSTALLATION
For installation, reverse removal procedure.
