3. Ground terminal
7B1-18 AUTOMATIC TRANSMISSION (4 A / T)
DIAGNOSTIC TROUBLE CODE CLEARANCE
[Clear DTC using SUZUKI scan tool]
1) Turn ignition switch OFF

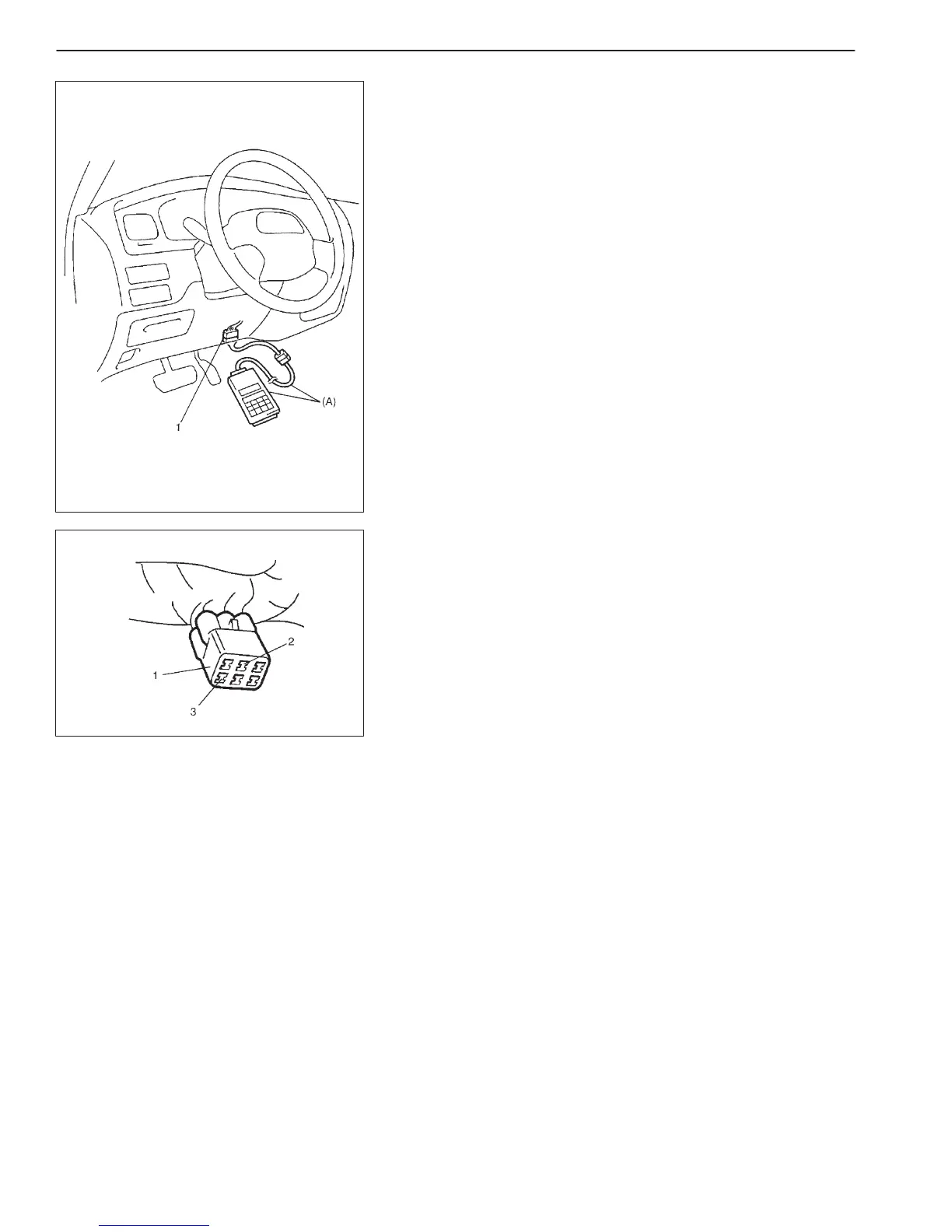

2) After setting cartridge, connect SUZUKI scan tool to data link
connector (DLC) (1) located in underside of instrument panel at
driver’s seat side.
Special tool
(A): SUZUKI scan tool
3) Turn ignition switch ON.
4) Erase DTC according to instructions displayed on SUZUKI scan
tool. Refer to SUZUKI scan tool operator’s manual for further de-
tails.
5) After completing the erasing, turn ignition switch OFF and dis-
connect SUZUKI scan tool from data link connector (DLC) (1).
[Clear DTC not using SUZUKI scan tool]
1) Turn ignition switch ON.
2) Using service wire, ground diagnosis switch terminal (2) of mon-
itor connector (1) five times within 10 seconds.
3) Perform “DTC CHECK” and confirm that only DTC No.12 (nor-
mal DTC) is displayed. If not, repeat Step 1) and 2) and check
again.
To Next Page
