ENGINE MECHANICAL (RHZ ENGINE) 6A3-51
REMOVAL
1) Remove engine assembly from body as previously outlined.
2) Remove following parts from engine as previously outlined.
D Oil pan and oil pump strainer
D Intake manifold and exhaust manifold
D Cylinder head cover
D Timing belt cover
D Timing belt, belt tensioner, roller and crankshaft timing belt
pulley
D Oil pump, oil pump drive sprocket and gasket holder plate
D Cylinder head assembly
D Piston and connecting rod

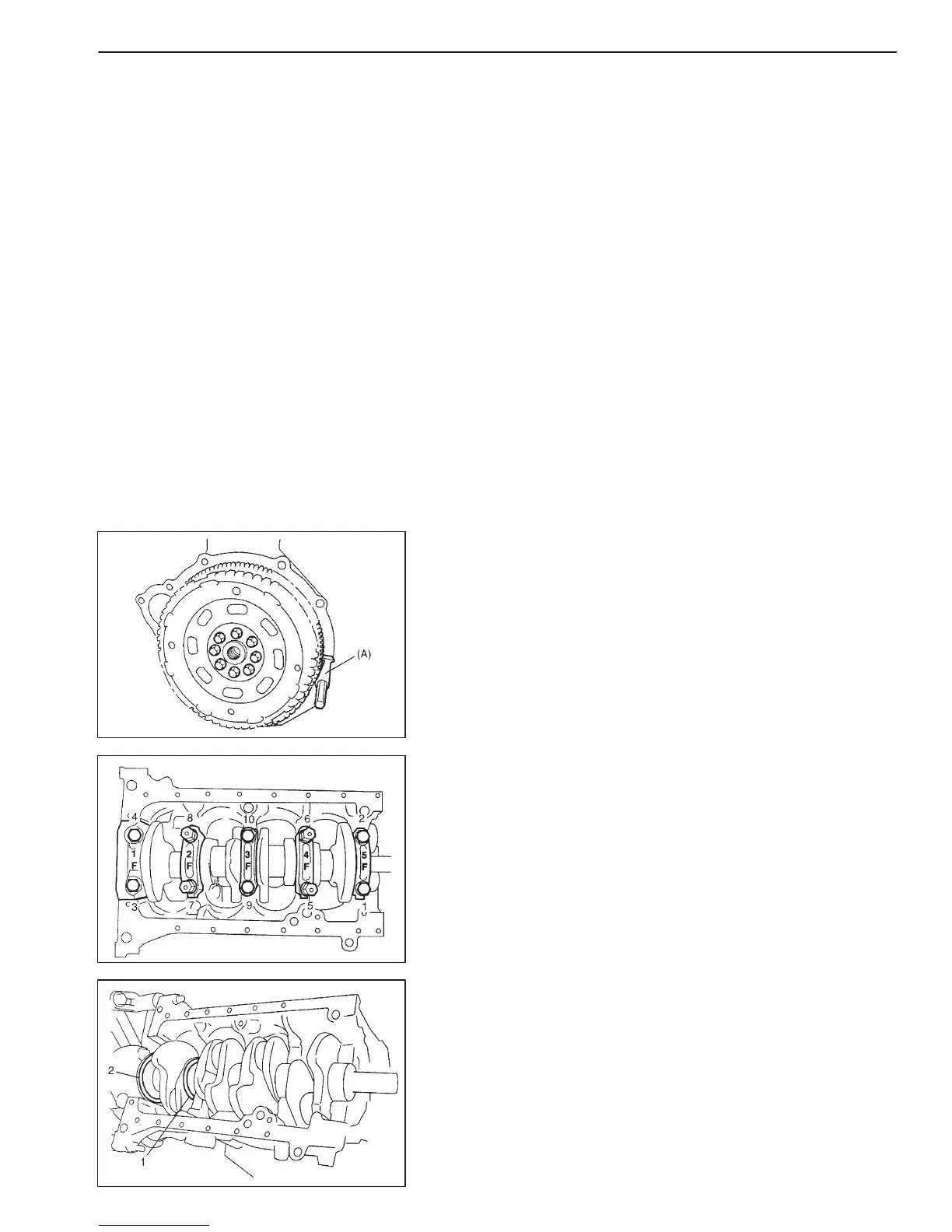

3) Remove clutch cover, clutch disc and flywheel (drive plate and
CKP (Engine speed) sensor ring for A/T).
Special Tool
(A): 09924-17811
4) Loosen crankshaft bearing cap bolts in such order as indicated
in figure a little at a time and remove bearing caps.
5) Remove thrust bearings (lower side) (1) and rear oil seal (2).
6) Remove crankshaft from cylinder block.
7) Remove thrust bearings (upper side).
