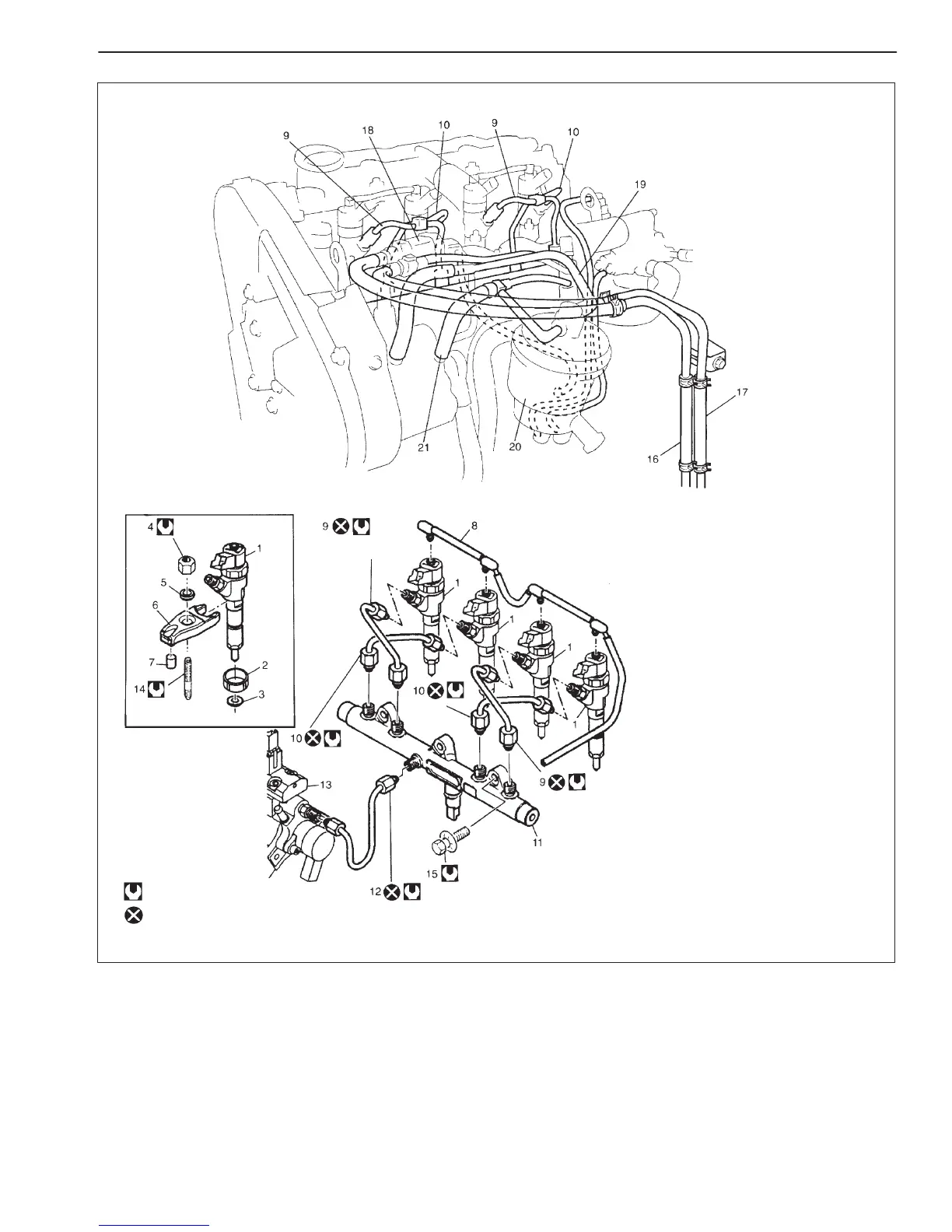

ENGINE AND EMISSION CONTROL SYSTEM (RHZ ENGINE) 6E3-21
: Do not reuse
1. Fuel injector
2. Sealing ring
3. Copper seal
4. Nut
5. Washer
6. Injector clamp
7. Thrust button
8. Return hose
9. High pressure pipe
(for No.2 & No.4)
10. High pressure pipe
(for No.1 & No.3)
11. Common rail
(High pressure fuel injection rail)
12. High pressure supply pipe
13. Injection pump
14. Stud bolt
15. Bolt
16. Fuel feed hose
17. Fuel return hose
18. Fuel heater
19. Inlet fuel hose
20. Fuel filter assembly
21. Return fuel hose
: Tightening Torque
20 N
.
m
(2.0 kg-m, 14.5 lb-ft)
20 N
.
m
(2.0 kg-m,
14.5 lb-ft)
20 N
.
m (2.0 kg-m, 14.5 lb-ft)
20 N
.
m (2.0 kg-m, 14.5 lb-ft)
20 N
.
m
(2.0 kg-m, 14.5 lb-ft)
25 N
.
m (2.5 kg-m, 18.0 lb-ft)
7.5 N
.
m
(0.8 kg-m, 5.5 lb-ft)
30 N
.
m
(3.0 kg-m, 22.0 lb-ft)
