MANUAL TRANSMISSION 7A2-43
2. Aluminum plate
TRANSMISSION UNIT
NOTE:
D Before installation, wash each part and apply specified gear
oil to sliding faces of bearing and gear.
D Use new circlips on shaft for installation. Don’t reuse cir-
clips.

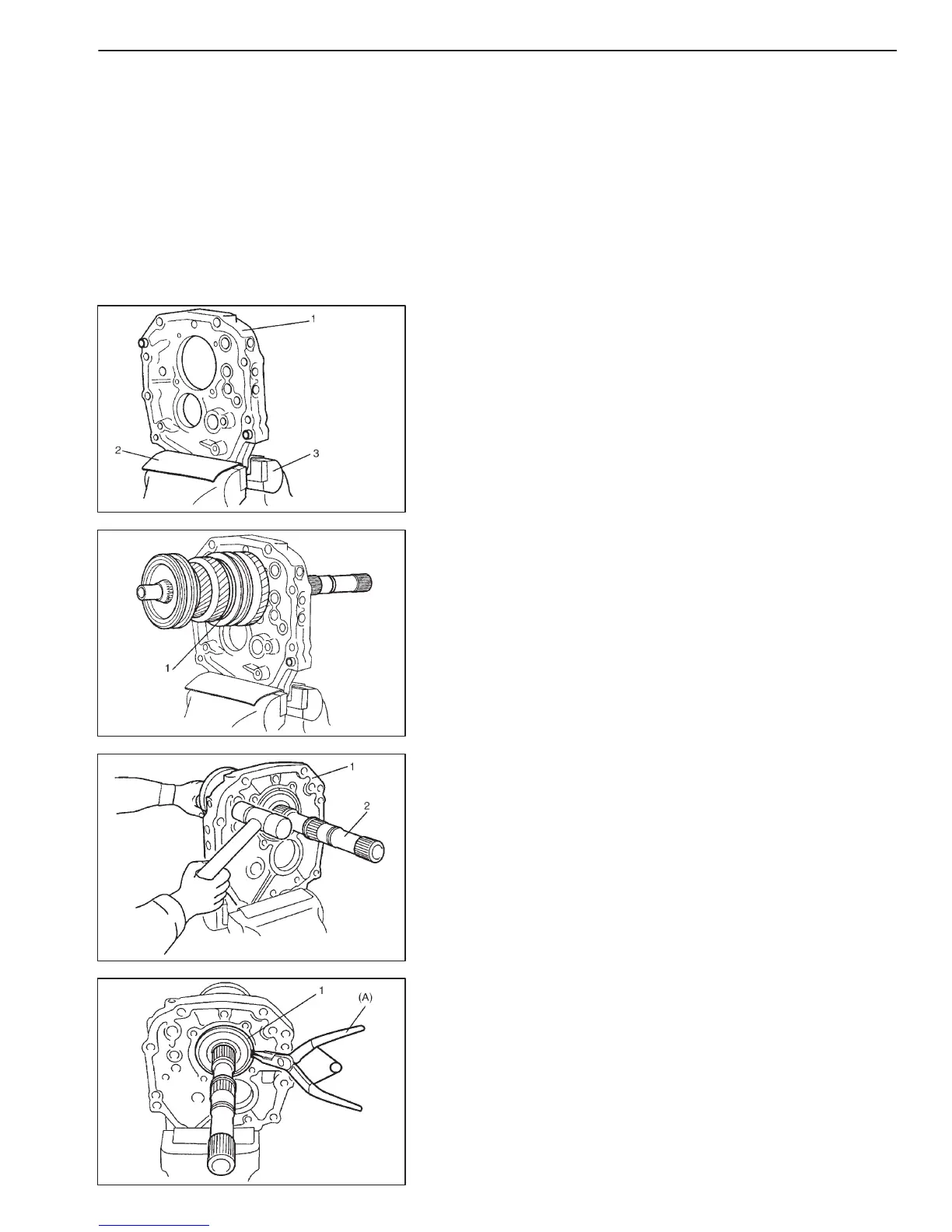

1) Set intermediate case (1) to vise (3).
Clean mating surfaces of intermediate case both sides, if inter-
mediate case is reused.
2) Install main shaft assembly (1) to intermediate case.
NOTE:
When fitting of intermediate case (1) and bearing is tight,
tap rear face of intermediate case (1) with plastic hammer
lightly as it will cause main shaft assembly (2) to install.
3) Fix bearing with new C-ring (1) by using special tool.
Special tool
(A): 09900-06107
To Next Page
