MANUAL TRANSMISSION 7A2-55
1. Release bearing
2. Release fork

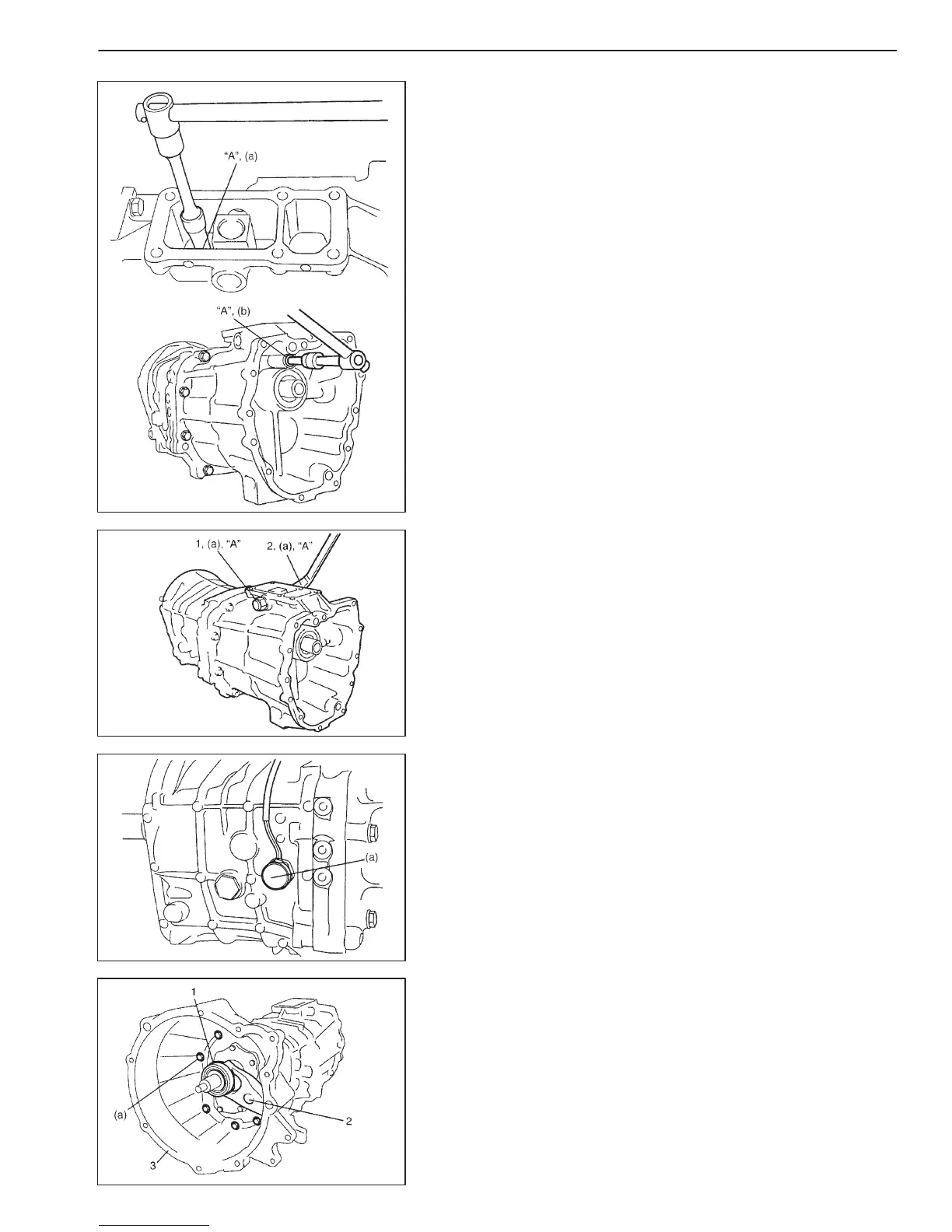

48) Apply cement “A” to inner gear shift shaft bolt and plug and
tighten them to specification.
“A”: Cement: 99000-32110
Tightening torque
Gear shift shaft inner bolt (a): 40 N
.
m (4.0 kg-m, 29.0 lb-ft)
Gear shift shaft inner plug (b): 19 N
.
m (1.9 kg-m, 14.0 lb-ft)
49) Tighten return spring low bolt (Yellow) (2) and return spring re-
verse bolt (Black) (1).
“A”: Sealant 99000-31110
Tightening torque
Return spring low bolt (Yellow) (a):
28 N
.
m (2.8 kg-m, 20.5 lb-ft)
Return spring reverse bolt (Black) (a):
28 N
.
m (2.8 kg-m, 20.5 lb-ft)
50) Install back-up light switch and new gasket.
Tightening torque
Back-up light switch (a): 45 N
.
m (4.5 kg-m, 32.5 lb-ft)
51) Install clutch housing (3) and torque its bolts to specification.
Tightening torque
Clutch housing bolt (a): 50 N
.
m (5.0 kg-m, 36.5 lb-ft)
