Suzuki GRAND VITARA XL-7 Service Manual

[A]
[B]
Upshift
Downshift
Vehicle speed
Vehicle speed
TCC ON
TCC OFF
Throttle valve openingThrottle valve opening
4th
gear
3rd
gear
7B1-10 AUTOMATIC TRANSMISSION (4 A / T)
AUTOMATIC GEAR SHIFT DIAGRAM
Automatic shift schedule as a result of shift control is shown below. In case that select lever is shifted to L at a higher
than 40 km/h or 25 mile/h speed, 2nd or 3rd gear is operated and then down shifts to 1st at a speed lower than
that. No up shift is available in L.
The same as, the select lever is shifted to 2 at a higher than 82 km/h (51 mile/h) speed, 3rd gear is operated and
then down shifts to 2nd at a speed lower than that.
Shift
1 ! 2 2 ! 3 3 ! 4 4 ! 3 3 ! 2 2 ! 1
Throttle
opening
Full throttle km/h (mile /h) 40
(25)
73
(46)
110
(69)
102
(64)
65
(41)
31
(19)
Closed throttle km/h (mile/h) 15
(9)
25
(16)
38
(24)
34
(21)
22
(14)
8
(5)

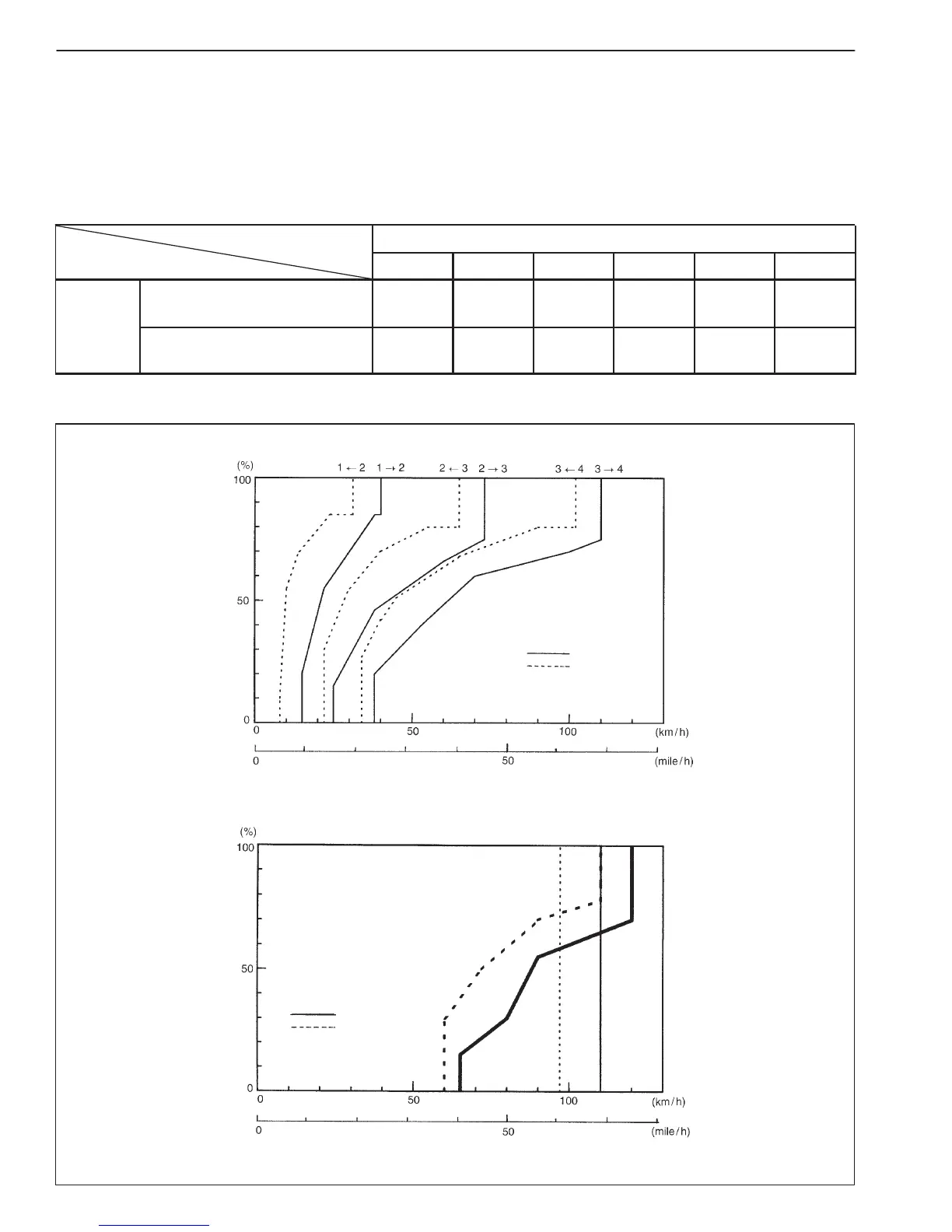

GEAR SHIFT DIAGRAM [A] AND TCC LOCK-UP DIAGRAM [B]
