7B1-76 AUTOMATIC TRANSMISSION (4 A / T)

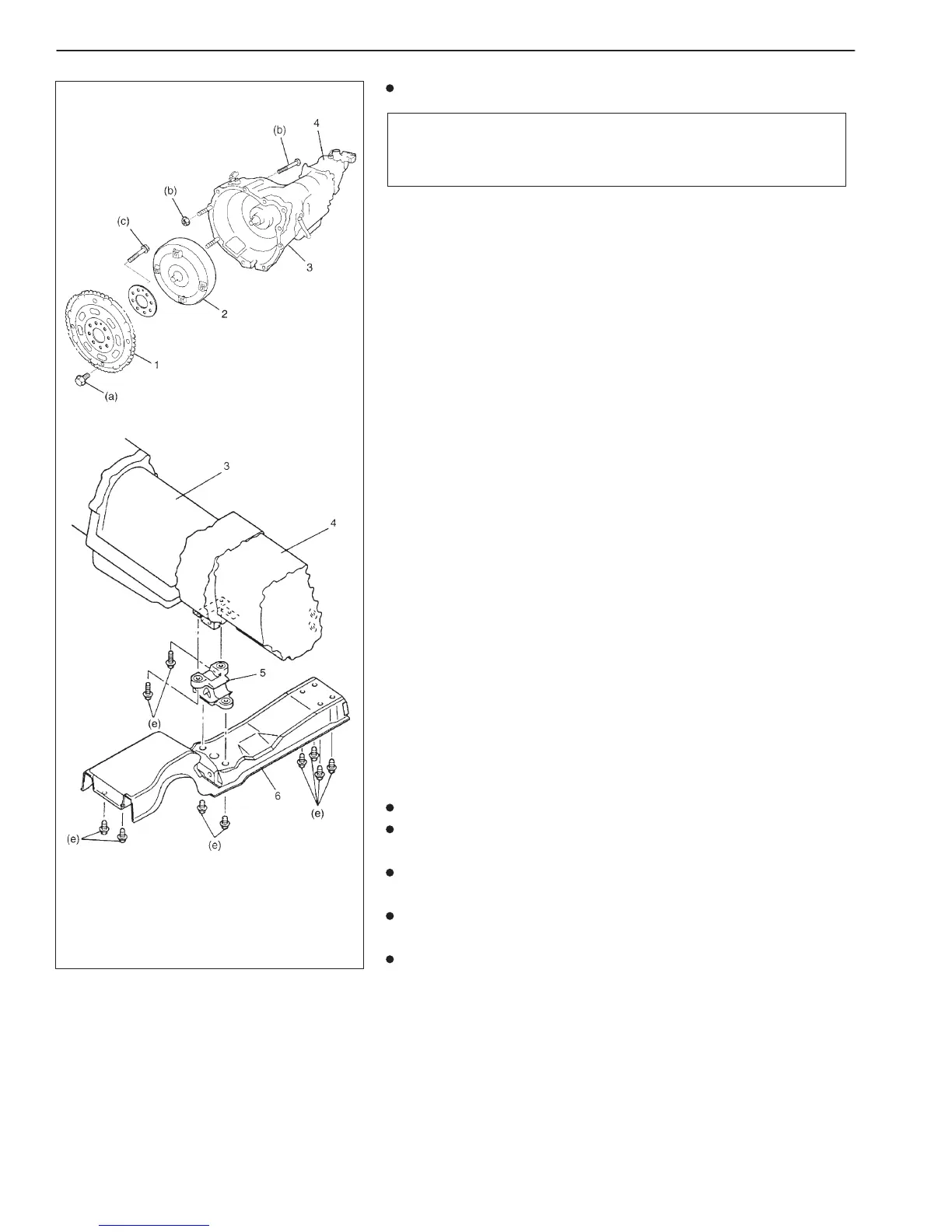

1. Drive plate
2. Torque converter
3. Automatic transmission
4. Transfer
5. Engine rear mounting
6. Engine rear mounting member
Tighten bolts and nuts to specified torque.
“A”: Sealant 99000-31110
Tightening torque
Torque converter mounting bolts (a):
65 N
.
m (6.5 kg-m, 47.0 lb-ft)
Transmission to engine bolts and nuts (b):
61 N
.
m (6.1 kg-m, 44.0 lb-ft)
Drive
plate bolts (c):
50 N
.
m (5.0 kg-m, 36.5 lb-ft)
Engine
rear mounting bolts (e):
50 N
.
m (5.0 kg-m, 36.5 lb-ft)
Engine
rear mounting member bolts (e):
50 N
.
m (5.0 kg-m, 36.5 lb-ft)
Exhaust
No.1 pipe to manifold nuts:
50 N
.
m (5.0 kg-m, 36.5 lb-ft)
Exhaust
No.2 pipe to No.1 pipe bolts:
50 N
.
m (5.0 kg-m, 36.5 lb-ft)
Muffler
to exhaust No.2 pipe nuts:
60 N
.
m (6.0 kg-m, 43.5 lb-ft)
Front
propeller shaft universal joint flange bolts:
50 N
.
m (5.0 kg-m, 36.5 lb-ft)
Rear
propeller shaft universal joint flange bolts:
60 N
.
m (6.0 kg-m, 43.5 lb-ft)
Oil
filler tube bolt: 23 N
.
m (2.3 kg-m, 17.0 lb-ft)
Select
cable bracket bolts: 23 N
.
m(2.3 kg-m, 17.0 lb-ft)
Stabilizer
bar mount bush bracket bolts:
23 N
.
m (2.3 kg-m, 17.0 lb-ft)
Clamp wiring harness and hoses securely.
Refer to “SELECT CABLE” in this section for adjusting procedure
of
select cable.
Follow fluid level check procedure for refilling automatic transmis-
sion
fluid and its level adjusting.
Connect battery, and confirm that engine and transmission func-
tion
acceptably.
When remounting drive plate, use specified bolts.
CAUTION:
Do not reuse drive plate bolts. Otherwise, engine oil may
leak.
Be sure to use new bolts with pre-coated adhesive.
