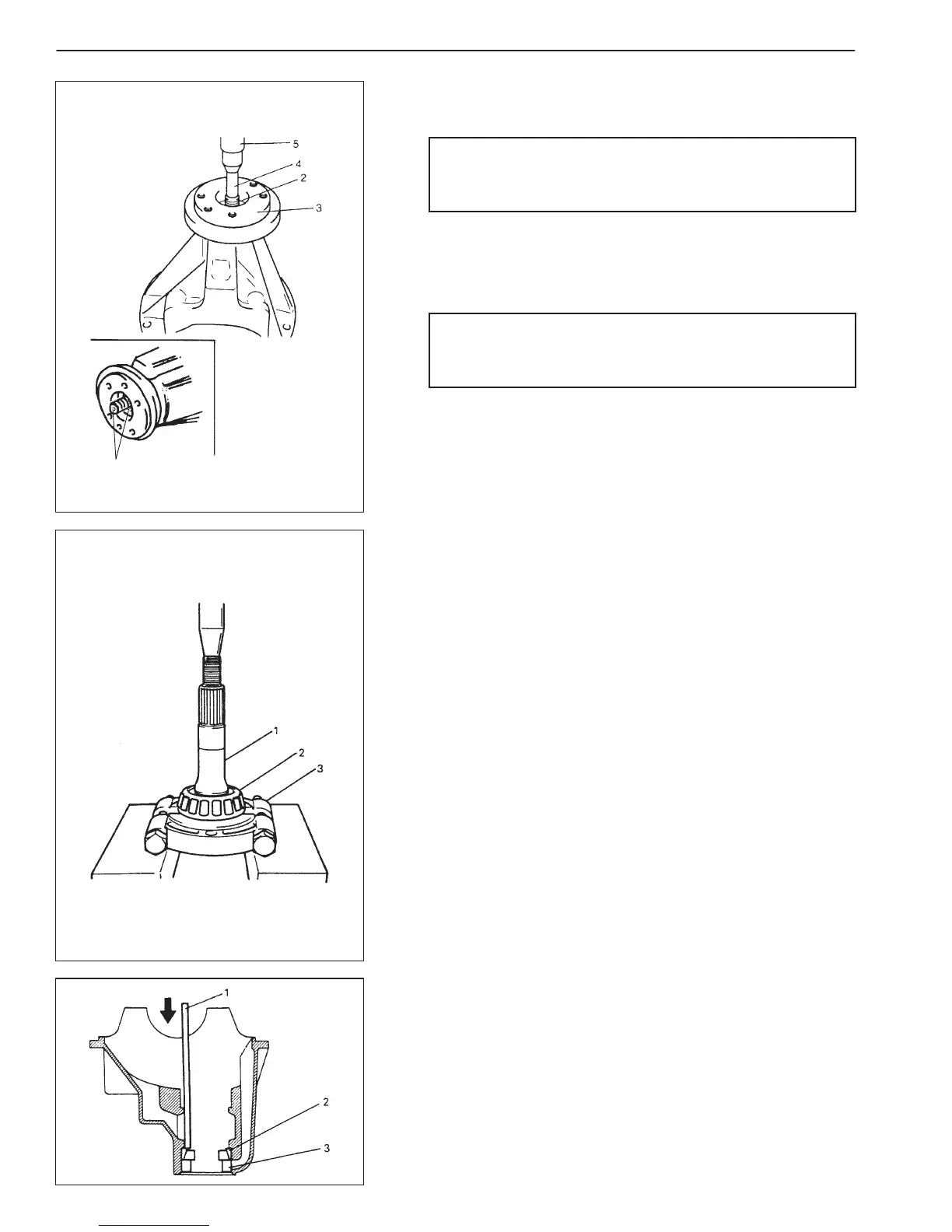

7F-8 DIFFERENTIAL (REAR)
b) Make mating marks (1) on drive bevel pinion and companion
flange.
CAUTION:
Don’t make mating mark on the coupling surface of
the flange.
c) Press drive bevel pinion (2) by using rod (4) (approx. 22 mm
(0.866 in.) in diameter) and press (5) then remove drive bevel
pinion (2) and companion flange (3).
CAUTION:
Do not drop drive bevel pinion by holding its gear part
by hand from beneath.
d) Remove drive bevel pinion rear bearing (2) by using bearing
puller (3) and press.
6) Using a hammer and brass bar (1), drive out front bearing outer
race with bearing (2) and oil seal (3).
