6A2-14 ENGINE MECHANICAL (K9K ENGINE)

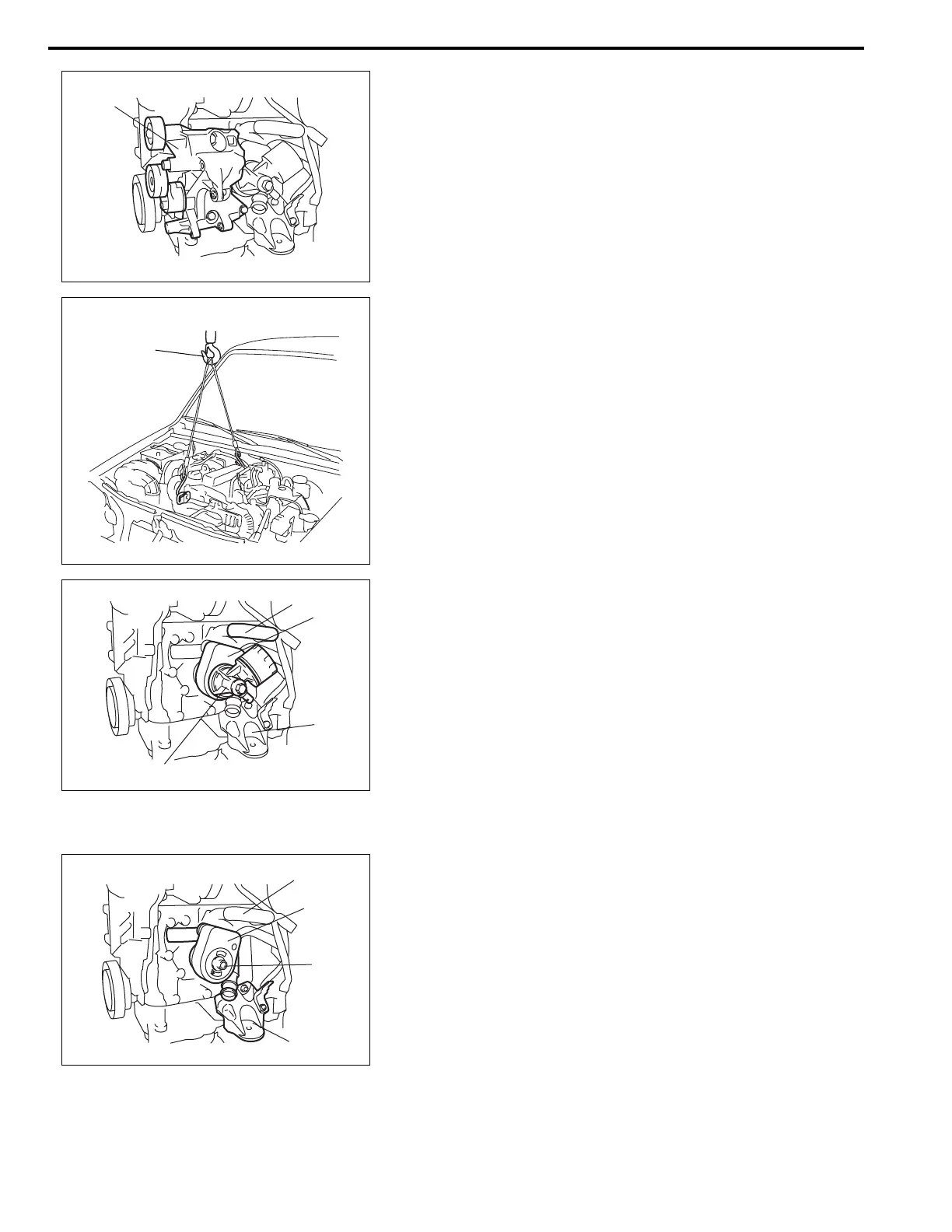

8) Remove compressor bracket (1).
9) Install lifting device (1).
10) Remove oil filter unit bracket (1).
11) Disconnect heat exchanger hose (4).
12) Remove engine left mounting bracket (2), and then remove
heat exchanger (3).
Installation
1) Install heat exchanger (1) with new gasket.
Tightening torque
Heat exchanger bolt (a): 45 N·m (4.5 kg-m, 32.5 lb-ft)
2) Install engine left mounting bracket (2) referring to “Main
Bearings, Crankshaft and Cylinder Block Removal and
installation” in this section.
3) Connect heat exchanger hose (3).
1
1
4
3
2
1
3
1
(a)
2
