6A2-16 ENGINE MECHANICAL (K9K ENGINE)

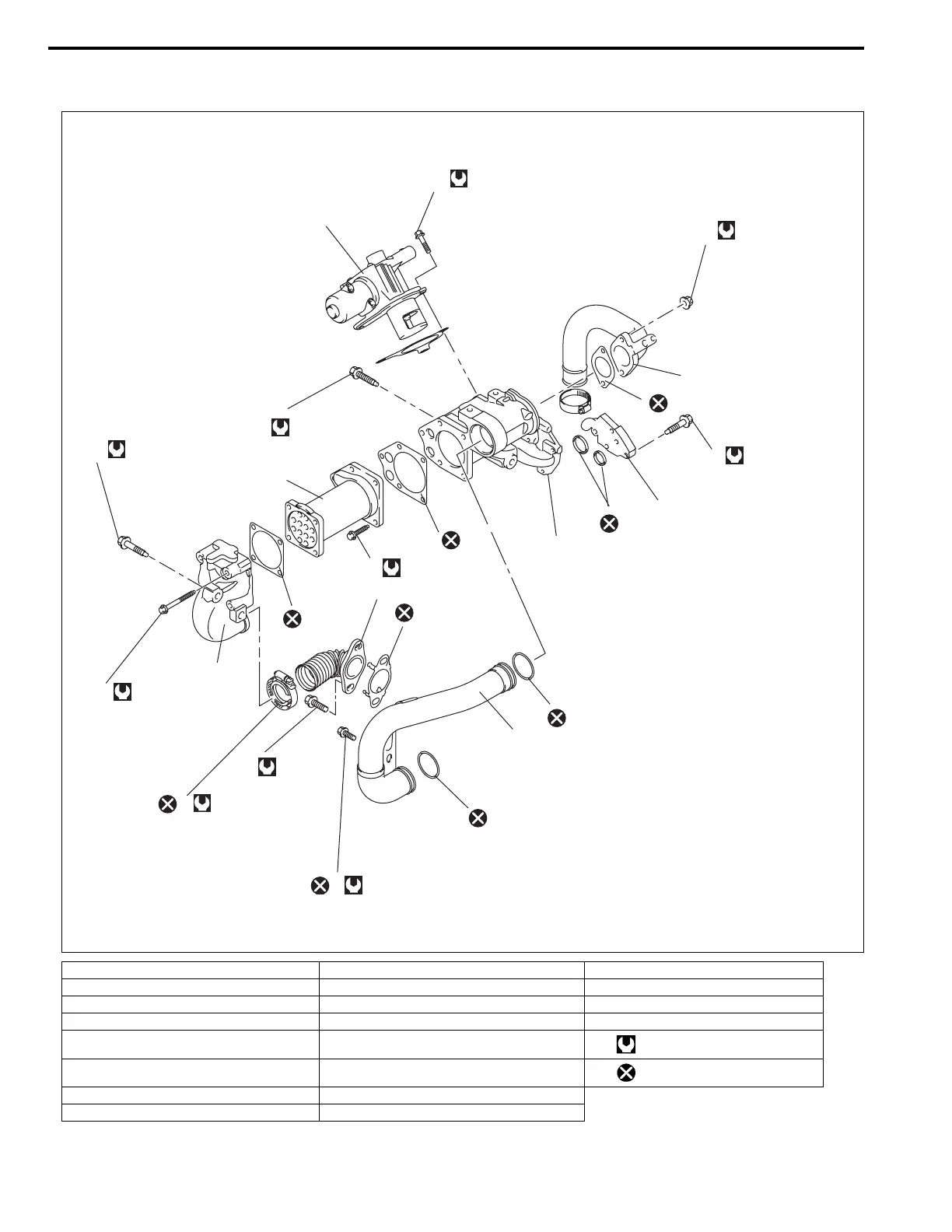

EGR Valve and Intake Pipe Components
1. EGR pipe 9. EGR pipe clamp 17. EGR valve body bolt
2. EGR cooler pipe 10. Gasket 18. Intake pipe No.1
3. EGR cooler 11. EGR cooler pipe bolt 19. Intake No.1 nut
4. Intake pipe No.2 12. EGR cooler bolt 20. O-ring
5. EGR valve body 13. Intake pipe No.2 bolt Tightening torque
6. EGR cooler water pipe 14. EGR valve bolt Do not reuse.
7. EGR valve 15. EGR cooler water pipe bolt
8. EGR pipe bolt 16. EGR cooler pipe bolt
7
14
12 N·m (1.2 kg-m)
21 N·m (2.1 kg-m)
21 N·m (2.1 kg-m)
16
17
19
11 N·m (1.1 kg-m)
18
15
12 N·m (1.2 kg-m)
6
20
5
3
11
12 N·m (1.2 kg-m)
2
1
8
42 N·m
(4.2 kg-m)
9
5 N·m (0.5 kg-m)
13
10N·m (1.0 kg-m)
20
4
20
12
12 N·m (1.2 kg-m)
10
10
10
10
