6A2-18 ENGINE MECHANICAL (K9K ENGINE)

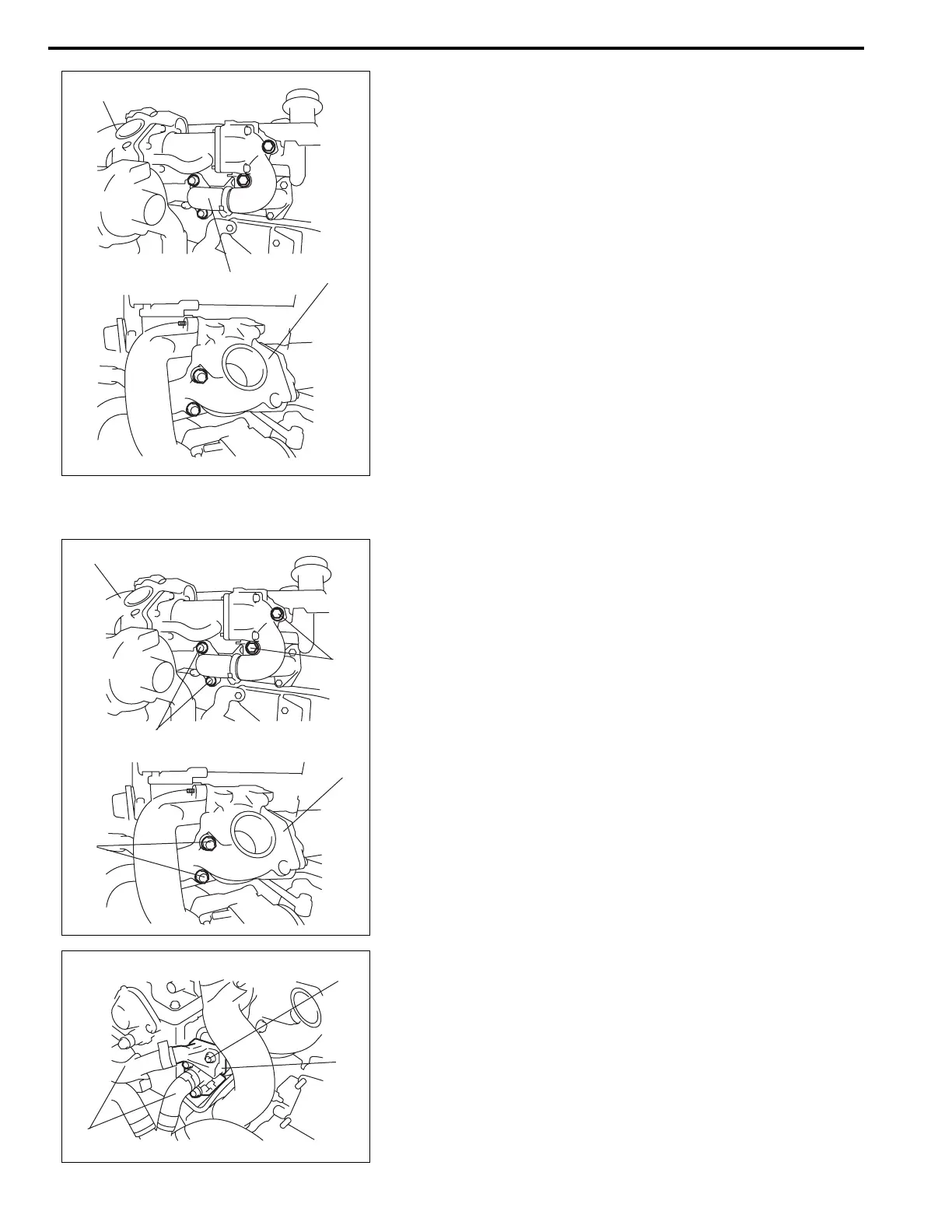

7) Remove EGR valve body (1) with EGR pipe (2).
Installation
1) Install EGR valve body assembly (1) with new gasket and
EGR pipe bolt.
Tightening torque
EGR pipe bolt (a): 42 N·m (4.2 kg-m, 30.5 lb-ft)
EGR cooler pipe bolt (b): 21 N·m (2.1 kg-m, 15.5 lb-ft)
EGR valve body bolt (c): 21 N·m (2.1 kg-m, 15.5 lb-ft)
2) Install EGR cooler water pipe assembly (1), and then con-
nect hoses (2) to EGR cooler water pipe assembly.
Tightening torque
EGR cooler water pipe assembly bolt (a):
12 N·m (1.2 kg-m, 9.0 lb-ft)
1
2
1
1
(b)
(a)
(c)
1
(a)
1
2
