ENGINE MECHANICAL (K9K ENGINE) 6A2-31
8) Remove fuel filter referring to “Fuel Filter Removal and
Installation” in Section 6C2.
9) Disconnect discharge hose pipe from A/C compressor refer-
ring to “Major Components and Location” in section 1B.
10) Remove transmission referring to “Transmission Dismount-
ing and Remounting” in Section 7A2.
11) Remove starting motor referring to “Starting Motor Dis-
mounting and Remounting” in Section 6G2.

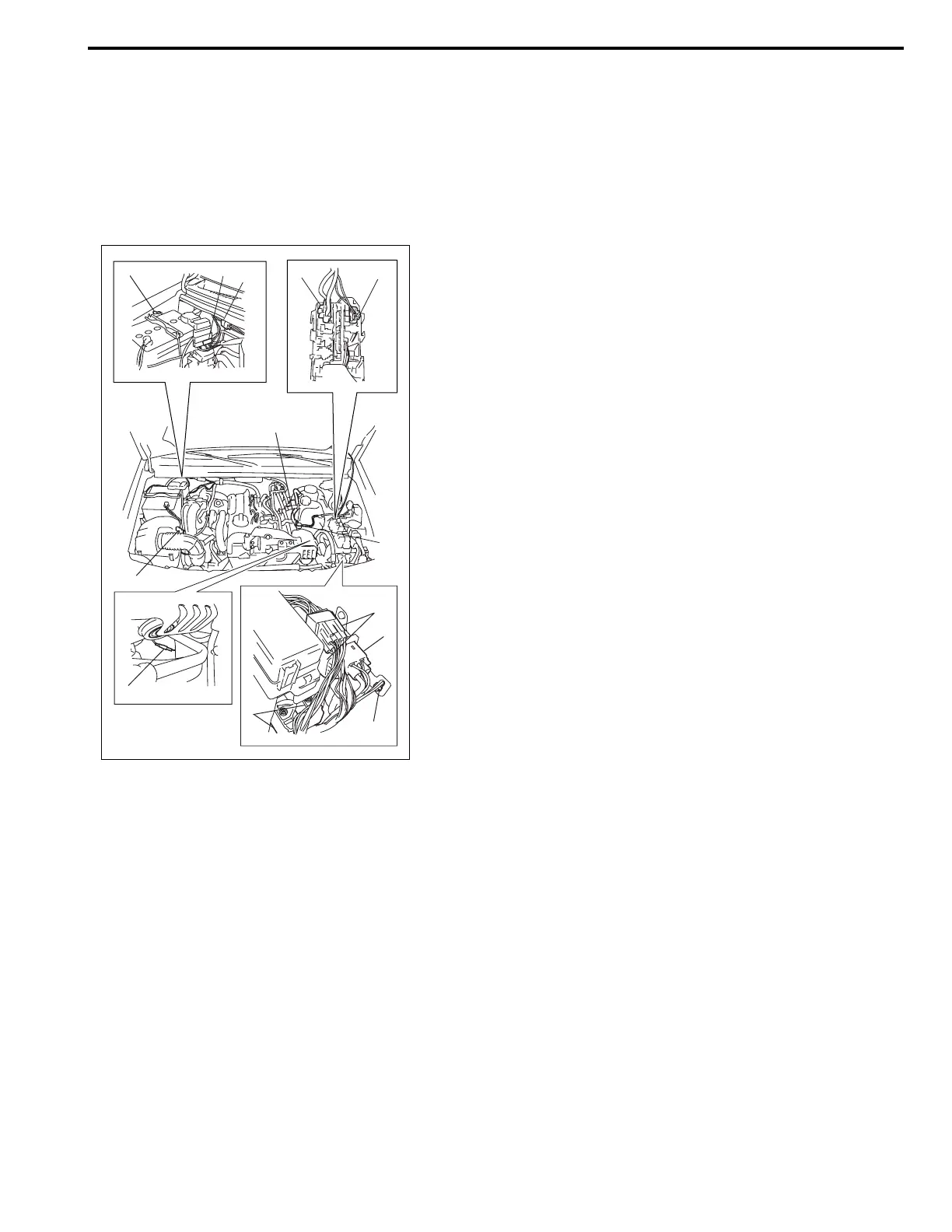

12) Disconnect the following electric wires, and then release wire
harnesses from clamps.
• ECM connectors (1)
• MAF and IAT sensor connector (2)
• Main fuse box connectors (3 and 4)
• Engine harness to main harness connector (5)
• Magnet clutch connector (6) of A/C compressor
• Supplementary fuse box connector (7)
• Battery to main harness connector (8)
• Pre-heating unit connector (9)
• Ground terminals (10 and 11)
13) Disconnect the following hoses.
• Brake booster hose (12) and air lock hub hose (13) from vac-
uum pump
• Heater inlet hose No. 1 from thermo plunger
• Radiator inlet hose No.1 from thermostat assembly
• Heater outlet hose from heater joint
14) With hose connected, detach power steering pump from its
bracket.
15) Drain engine oil, if necessary.
1
2
3
4
5
6
7
8
10
11
9
12
13
