6A2-48 ENGINE MECHANICAL (K9K ENGINE)
• Check oil pump chain for wear or damage.
If any malcondition is found, replace oil pump chain.

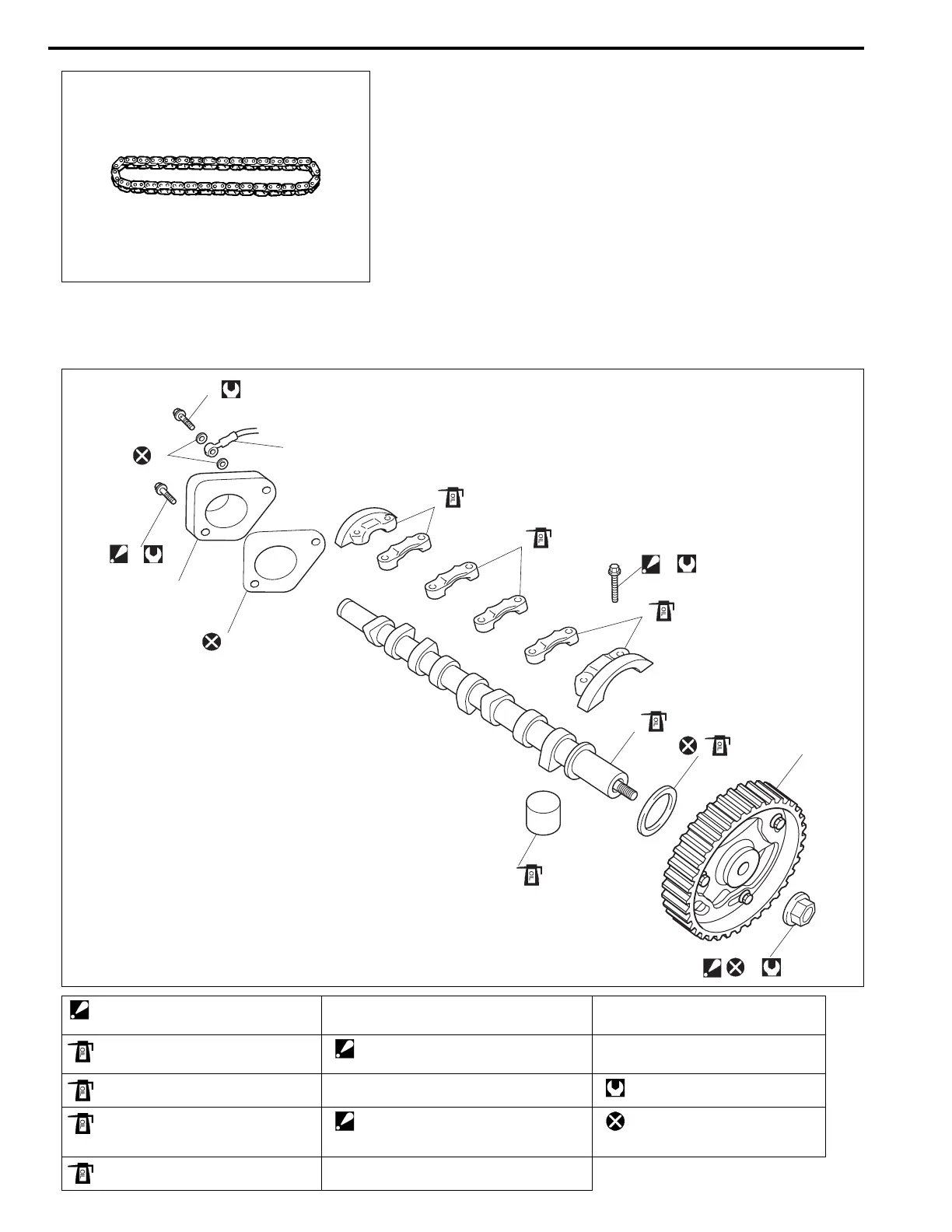

Camshaft and Tappet Components
1. Camshaft housing bolt
: Tighten 10 N·m (1.0 kg-m, 7.5 lb-ft)
by the specified procedure.
6. Camshaft pulley 11. Vacuum pump oil hose
2. Camshaft housing
: Apply engine oil to sliding surface
7. Camshaft pulley nut
: Tighten 30 N·m (3.0 kg-m, 22.0 lb-ft)
and 85° by the specified procedure.
12. Vacuum pump oil hose union bolt
3. Camshaft
: Apply engine oil to sliding surface
8. Camshaft cover Tightening torque
4. Tappet
: Apply engine oil around tappet.
9. Camshaft cover bolt
: Tighten 5 N·m (0.5 kg-m, 4.0 lb-ft)
and 12 N·m (1.2 kg-m, 9.0 lb-ft) by the
specified procedure.
Do not reuse.
5. Camshaft oil seal
: Apply engine oil to oil seal lip.
10. Gasket
9
8
1
4
10
11
12
2
16 N·m (1.6 kg-m)
2
5
3
6
7
2
10
