ENGINE MECHANICAL (K9K ENGINE) 6A2-9
Installation
Reverse removal procedure for installation noting the following.
• Tighten air cleaner outlet hose clamp (1) to specified torque.
Tightening torque
Air cleaner outlet hose clamp (a):
2.5 N·m (0.25 kg-m, 2.0 lb-ft)

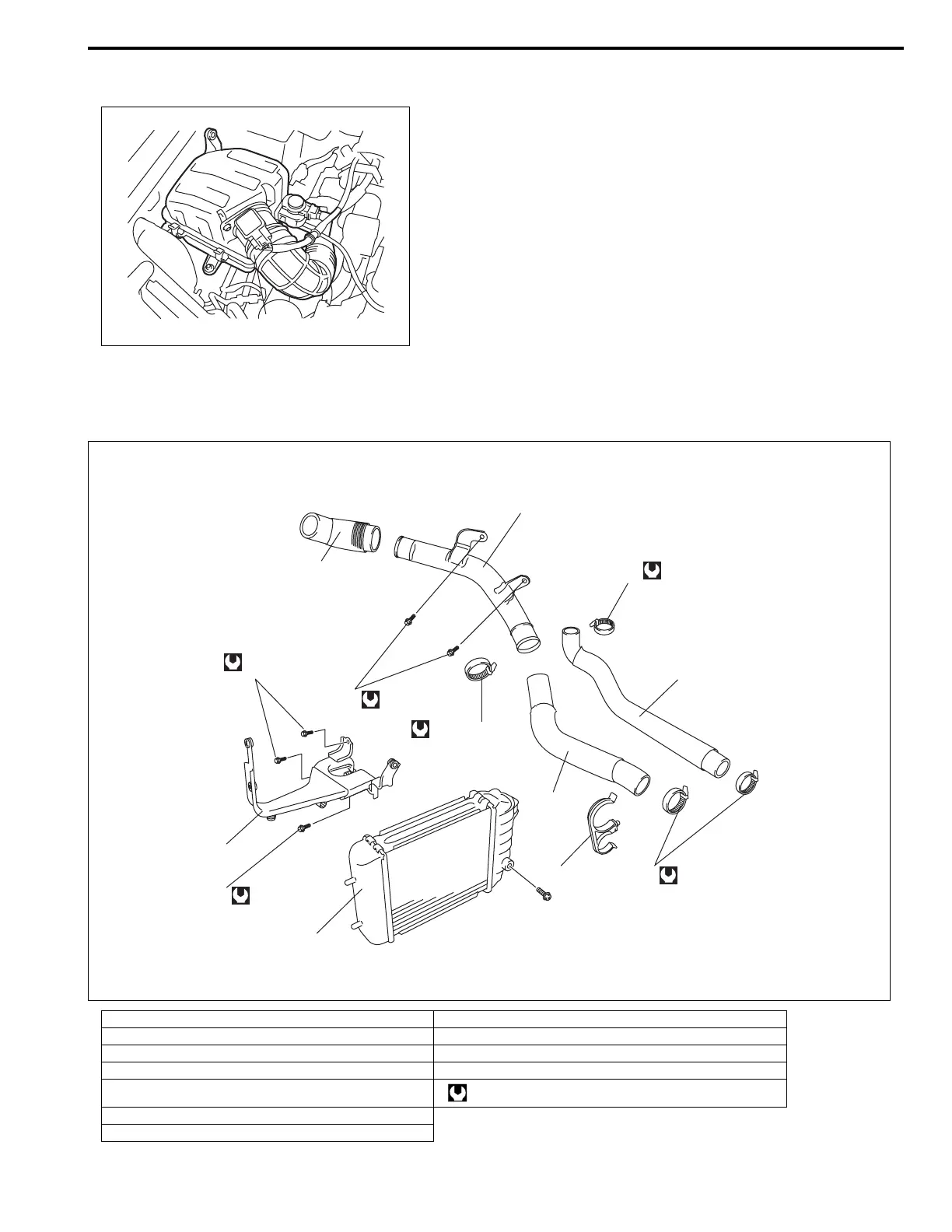

Intercooler Components
1, (a)
1. Intercooler 8. Intercooler bracket bolt
2. Intercooler bracket 9. Intercooler hose clamp No.1
3. Intercooler hose clamp 10. Intercooler hose clamp No.2
4. Intercooler outlet hose No.1 11. Intercooler outlet pipe bolt
5. Intercooler inlet hose Tightening torque
6. Intercooler outlet pipe
7. Intercooler outlet hose No.2
7
6
10
5
9
3
4
1
2
8
8
11
25 N·m (2.5 kg-m)
28 N·m (2.8 kg-m)
25 N·m (2.5 kg-m)
4 N·m (0.4 kg-m)
5 N·m (0.5 kg-m)
4 N·m (0.4 kg-m)
9
