Suzuki Swift 2015 User Manual

7-22
INSPECTION AND MAINTENANCE
74LH0-74E
Fuses
Your vehicle has three types of fuses, as
described below:
Main fuse
The main fuse takes current directly from
the battery.
Primary fuses
These fuses are between the main fuse
and individual fuses, and are for electrical
load groups.
Individual fuses
These fuses are for individual electrical cir-
cuits.

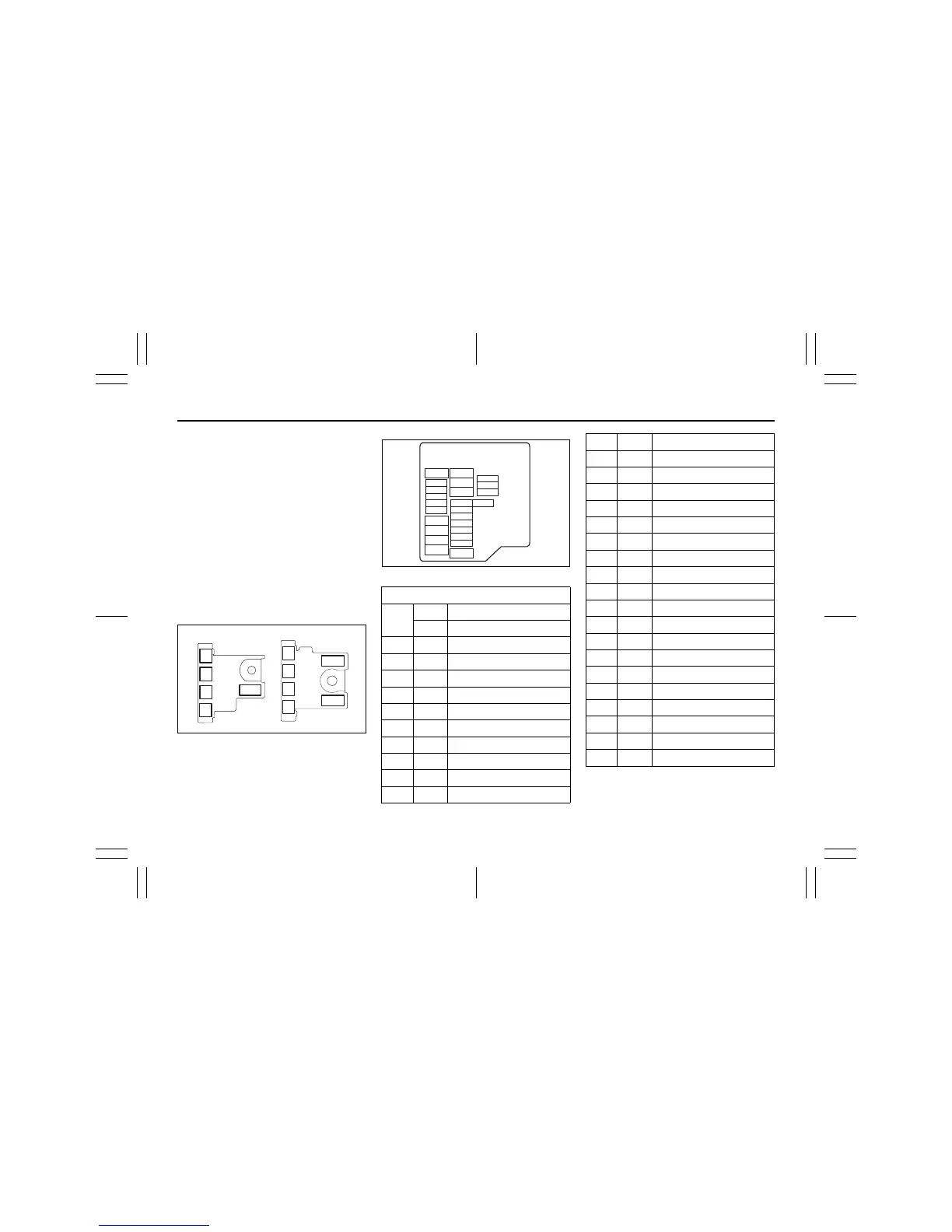

Fuses in the Engine Compartment
74LHT0715
(5)
(3)
(4)
(2)
(1)
(5)
(4)
(3)
(2)
(1)
(6)
MAIN FUSE / PRIMARY FUSE
(1)
100 A FL1 (GAS)
120 A FL1 (DIESEL)
(2)
100 A FL2
(3)
100 A FL3
(4) 50 A FL4
(5) 80 A FL5
(6)
100 A FL6 (DIESEL)
(7) 50 A Ignition switch -2
(8) 7.5 A ECM
(9) 15 A AT
(10) 20 A F/P (DIESEL)
(11) 10 A Air compressor
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
(16)
(17)
(18)
(20)
(19)
(21)
(22)
(23)
(25)
(24)
(26)
(27)
(28)
(29)
(30)
(31)
(12) 15 A FI (PETROL)
(13) 30 A FI (DIESEL)
(14) 60 A Power steering
(15) 30 A Radiator fan
(16) 40 A ABS 1
(17) 30 A Blower fan
(18) 30 A Starting motor
(19) 30 A T/M Pump (AGS)
(20) 30 A Backup
(21) 10 A T/M (AGS)
(22) 15 A Head light (Left)
(23) 25 A ABS control module
(24) 15 A Head light (Right)
(25) 20 A Front fog light
(26) 7.5 A T/M 2 (AGS)
(27) 40 A Ignition switch
(28) 20 A INJ DRV (DIESEL)
(29) 10 A FI 2 (DIESEL)
(30) – Blank
(31) 7.5 A Starting signal 2
