3-85
OPERATING YOUR VEHICLE
80SS5-01E

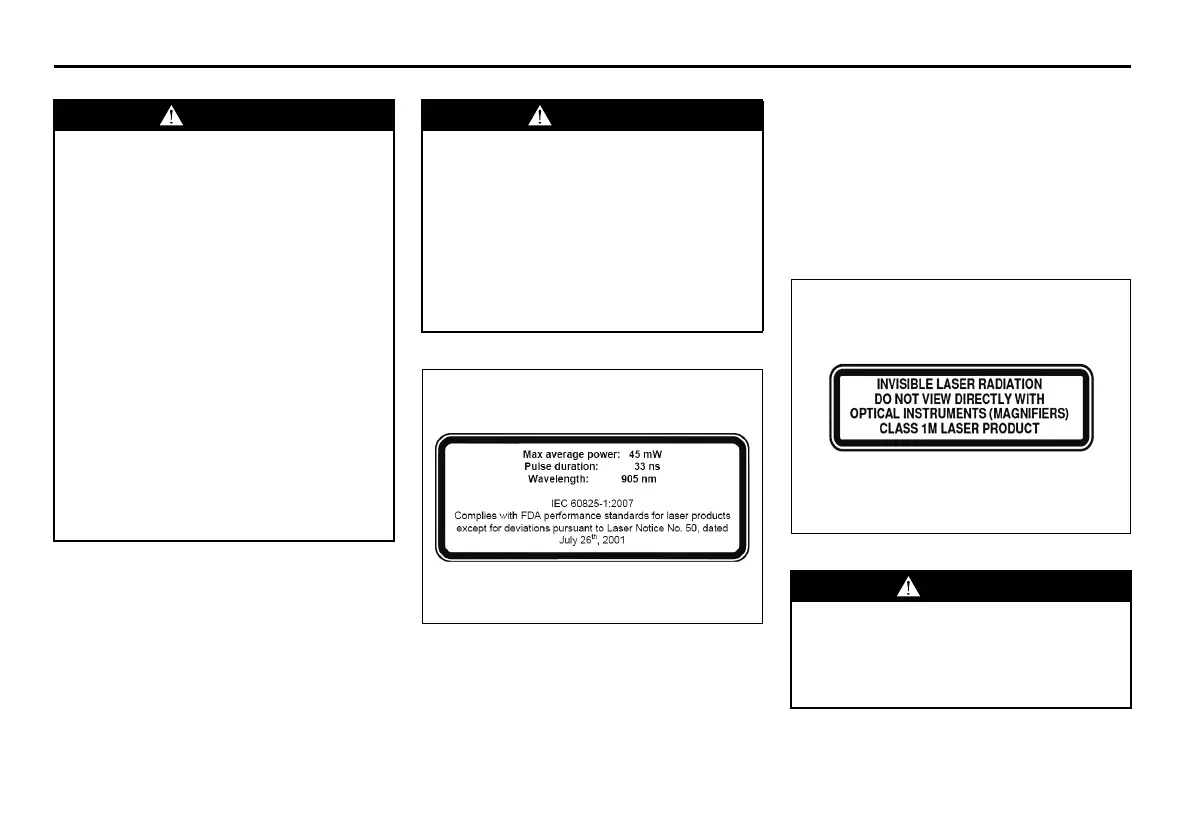

Laser explanatory label
52RM30510
Laser emission data
Maximum average power: 45 mW
Pulse duration: 33 ns
Wave length: 905 nm
Divergence
(horizontal × vertical): 28° × 12°
NOTE:
The detection of the vehicle and an obsta-
cle in front of you, partition lines by the
dual sensor is limited within the visual
range. It also takes several seconds to
detect and activate the alert after an object
is appeared in the visual range of the dual
sensor.
Laser classification label
52RM30520
WARNING
(Continued)
• Do not apply any accessories
(other than SUZUKI genuine acces-
sories), films or stickers to the area
listed below. These may affect visi-
bility of the dual sensor. If the area
of the dual sensor is obstructed,
the dual sensor cannot detect any
vehicles, pedestrians, objects of
the high beam assist (such as the
lights of the vehicle in front of you,
street lamps, etc.) properly and the
dual sensor brake support may not
function properly. Also, even if
applying them to an area other than
the prohibited area, it may affect
the function of the dual sensor by
reflection of light or an image. In
this case, move them to another
place.
– On windshield
WARNING
• Do not remove or disassemble
laser sensor parts of dual sensor.
• Do not look into irradiation portion
of dual sensor by using an optical
instrument such as magnifying
glass, an objective glass, etc at a
distance within 10 cm (3.9 inch)
from dual sensor when the ignition
mode is ON. Your eyes might be
damaged by the laser.
WARNING
Do not stick a sticker or a film
(including transparent thing) on the
front of dual sensor of the outside
windshield as shown in the following
illustration.
